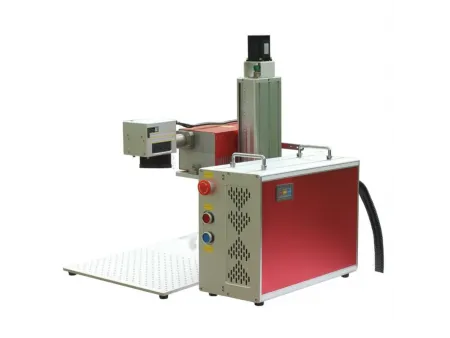

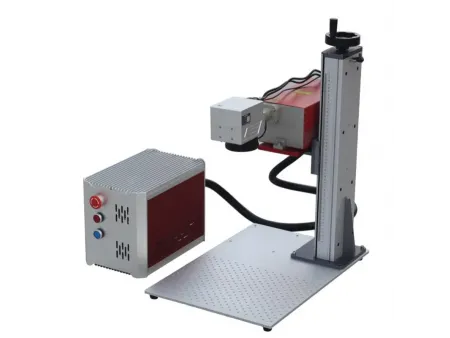

UV laser marker for metal and non-metal materials

The UV laser marking machine leverages advanced ultraviolet laser technology, utilizing a 355nm wavelength for precise and detailed markings. Unlike infrared lasers, this machine employs a three-step cavity frequency doubling process to achieve a smaller focused spot size, enabling "cold marking" with minimal thermal impact. This significantly reduces material deformation and ensures high-quality results.

Specifications

Laser Power	UV-3W/UV-5W/UV-10W/UV-15W
Marking Speed	< 12000mm/s
Marking Range	70×70mm, 150×150mm, 200×200mm, 300×300mm
Repetitive Accuracy	0.001mm
Focused Light Spot Diameter	< 0.0lmm
Laser Wavelength	355nm
Beam Quality	M2 < 1.1
Laser Output Power	10%-100%continuously adjustable
Cooling Method	Water cooling/air cooling

Features

The shorter wavelength of 355nm minimizes heat effects, making it ideal for sensitive materials and ensuring precise markings without damaging the surface.
Suitable for marking plastics, glass, ceramics, metals, silicon, sapphire, and more.
Ideal for applications requiring intricate details, such as QR codes, barcodes, micro-text, and logos.
Widely used in electronics, pharmaceuticals, automotive, and medical industries for marking components like microchips, circuit boards, and packaging.
Easy to integrate with design and production software, offering reliable and low-maintenance operation.
Space-saving and adaptable to various production environments, making it a versatile choice for detailed and permanent markings.

Materials and Applications

Glass: Surface and interior engraving for glass and crystal products.
Metals: Precision engraving on hardware, instruments, and components.
Plastics and Polymers: Ideal for high flame-retardant and nanomaterials.
Others: Engraving on wood, leather, acrylic, ceramics, fabrics, and coated films (testing recommended for varying compositions).

The UV laser marking machine is ideal for tasks like:

Marking on mobile phone screens, LCD displays, optical components, and hardware.
Engraving watches, glasses, gifts, and PC precision electronics.
Creating inscriptions on PCB boards, control panels, and display boards.

This machine combines precision, efficiency, and reliability, offering businesses a versatile and durable solution for high-quality marking needs while preserving material integrity.
