ZSP-G Servo Liquid Filling Machine

ZSP-G Servo Liquid Filling Machine
ZSP-G Servo Liquid Filling Machine
Request a Quote
  • Production Capacity: 30sets/Month
  • Payment Terms: L/C, T/T, Western Union
  • Type: Volumetric Filling Machine
  • Automatic Grade: Fully Automatic
  • Material Type: Liquid
  • Filling Valve Head: Multi-Head
  • Feed Cylinder Structure: Single-Room Feeding
  • Dosing Device: Capacity Cup
Basic Info.
Model NO. ZSP-G Filling Principle Servo Motor Piston Filling
Packaging Container Lifting Structure Pneumatic Lifting Structure Linear
Packaging Bottle Packaging Material Plastic
Filling Material Harpic Corrosive Liquid with Angle Bottle Mouth Filling Range 100ml-1000ml
Capacity 1000-3000bph Voltage Can Be Customized
Weight 850kg Certificate Ce, ISO, SGS
After Sale Service Online Support, Free Spare Parts Trademark ZT-PACK
Transport Package Wooden Packing Suitable for Exporting Specification 2300mm*710mm*2200mm
Origin Changzhou, China HS Code 8422303090
Description

This volumetric piston filler is a type of corrosive filling machines specially designed for automatic filling of caustic liquids such as toilet cleaner into bottles. This piston filling machine is suited to fill low viscosity liquid into bottle with capacity of 500ml-5l, bottle diameter of 40-150mm and bottle height of 80-370mm. It can be changed to different bottle sizes without any tool, and can be easily cleaned by using water.

The volumetric piston filling machine uses PLC program control, photoelectric and pneumatic system. All parts from the machine touch liquid are made from non-metallic anticorrosive materials. It also designed with diving filling function to ensure accurate filling without any bubble.

Features
  • Applicable to fill corrosive liquids with strong acid and alkali;
  • Changing to different bottle sizes without any tool;
  • Components from FESTO, SICK, SCHNEIDER ensure stable operation of filling machine;
  • Easy to clean, can use water to clean the machine;
  • CE certificated
Technical Parameters
  • Capacity: ≤4000 Bottles/hour (Filling 800ml)
  • Applicable Bottle Size: Diameter: 60-130mm, Height: 80-280mm
  • Filling Precision: ±1% (≤200ml), ±0.5% (200-1000ml)
Applicable products to be filled

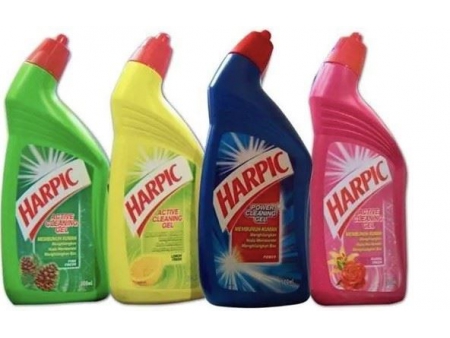

This linear type volumetric piston filler is suitable to filling bleach liquid, toilet cleaner, flash cleaner, clorox cleaner and other corrosive liquids into bottles of various shapes.

Filling range: 100ml -1000ml
Speed: 6 nozzles 1000-1500BPH
8 nozzles 1300-2000BPH
10 nozzles 1500-2200BPH
12 nozzles 2000-2500BPH
16 nozzles 3000-4000BPH
