Inline volumetric filler for dispensing liquids into containers

Penglai offers a variety of automatic liquid filling machines including multi-head piston filling machines, linear filling machines, and multi-head pneumatic vacuum filling machines. These machines are capable of filling fluids of different viscosities and can be customized according to customer requirements, making them suitable for industries like daily chemicals, oils, etc.

Multi-Head Piston Type
Linear Type
Multi-Head Pneumatic Vacuum Type

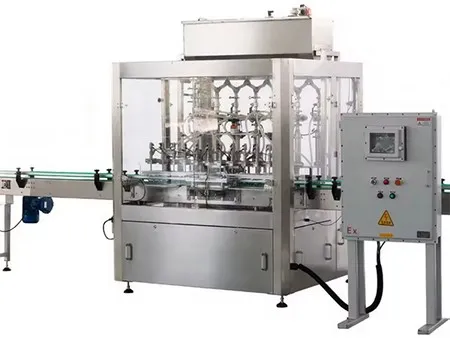

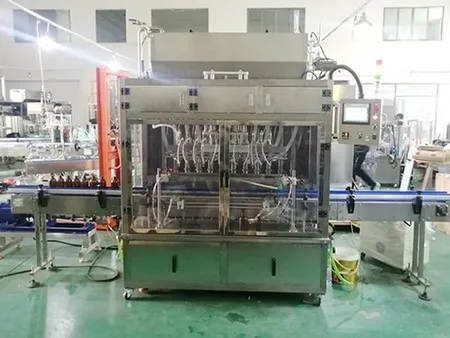

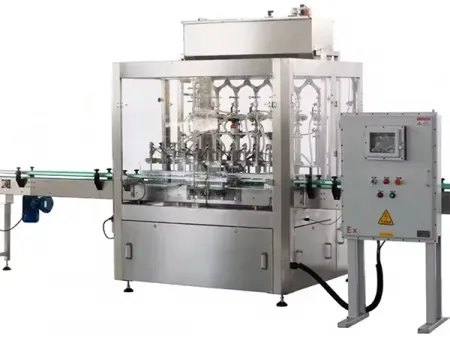

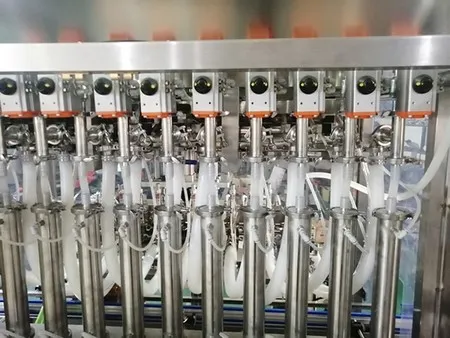

Multi-Head Piston Filling Machine

Model: YX-F12 Multi-head piston filler machine (with heater & mixer)
Fill Heads: Up to 12 heads (adjustable based on required filling speed)
Filling Volume: 1oz-16oz
Accuracy: ±0.5%
Speed: 50-60 containers per minute (8oz container)
Typical Products: Juice, honey, thick sauces, peanut butter, and other viscous materials
Machine Dimensions (L×W×H): 3000×1200×2200mm
Options: liquid level sensor, pipes, volumetric conveying pump, piston filler hopper

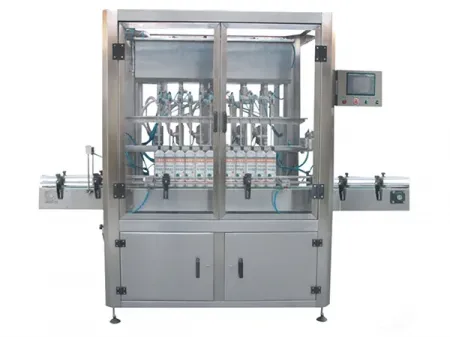

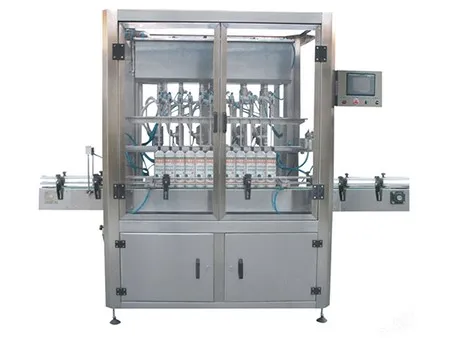

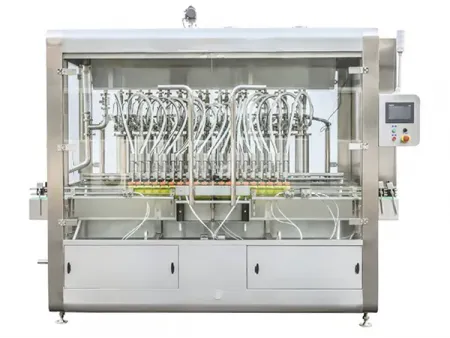

Linear Filling Machine

Model: YX-F10H Linear filling machine
Fill Heads: Up to 20 heads (adjustable based on required filling speed)
Filling Volume: 20-1000ml
Accuracy: ±0.5%
Speed: More than 160 bottles per minute (100-500ml bottle)
Typical Products: Designed for filling products of different viscosity in cosmetic, food, pharmaceutical, pesticide, oil-based products markets
Machine Dimensions (L×W×H): 2342×1020×2560mm
Options: liquid level sensor, pipes, volumetric conveying pump, piston filler hopper

Multi-Head Pneumatic Vacuum Filling Machine

Model: YX-VF10 Multi-head pneumatic vacuum filling machine
Fill Heads: Up to 10 heads (adjustable based on required filling speed)
Filling Volume: 0-200ml
Accuracy: ±0.5%
Speed: More than 100 bottles per minute
Typical Products: Designed for filling low-dose liquids such as perfume, cologne, and florida water
Machine Dimensions (L×W×H): 1200×700×1400mm
Options: liquid level sensor, pipes, volumetric conveying pump, piston filler hopper

Features

Materials: Contact parts are made of SUS316 to ensure compliance with GMP standards.
Precision Control: Utilizes servo motors for high-precision control of screws and piston cylinders, ensuring accurate filling processes and filling accuracy.
Submersible Filling: Servo-driven control technology allows for submersible filling, with electric pulse control ensuring the filling nozzle can submerge into bottles or other containers.
Adjustable Speed: Filling speed is adjustable to prevent the nozzle from touching the bottle mouth, avoiding contamination.
Quantitative Filling: Settable volume values for quantitative filling; the machine stops once the set fill volume is reached.
Temperature Control: The discharge system, filling section, and feed hopper feature a constant temperature system using water or oil as the heat transfer medium to maintain the set temperature (adjustable).

Standard Configurations

PLC (Siemens)
Touch Panel (Siemens)
Servo Motor (Schneider Electric)
Switch (Omron)
Pneumatic Components (AirTAC)
Optical Sensor (Leuze)
