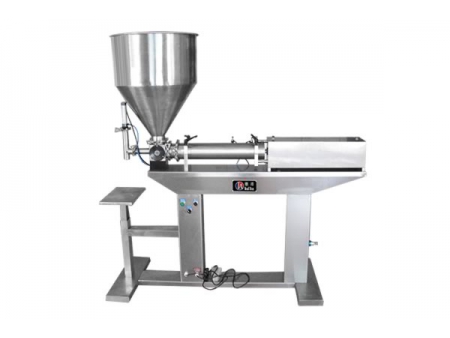

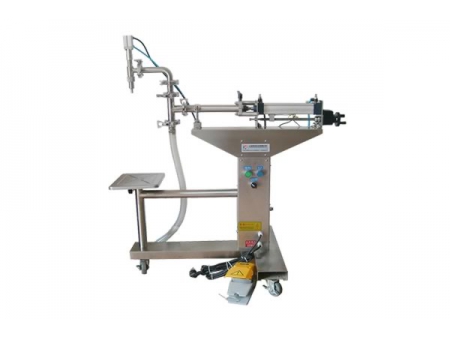

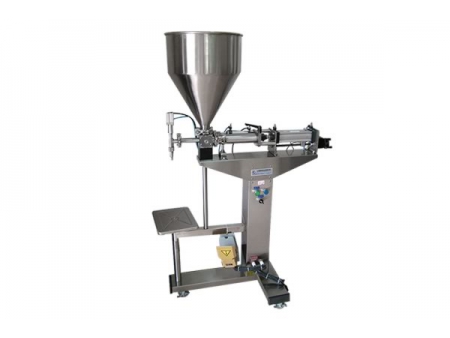

Liquid and Paste Filling Machine

Liquid and Paste Filling Machine
Liquid and Paste Filling Machine
Liquid and Paste Filling Machine
Liquid and Paste Filling Machine
Liquid and Paste Filling Machine
Request a Quote

This type of filling machine is well suited for filling and packaging liquid and viscous products, with a precision of ±1%. Outfitted with imported elements and components, the liquid paste filling machine is easy to adjust, and convenient to operate and maintain. Both manual operation and automatic operation are designed to satisfy different manufacture demands. Made from stainless steel, the liquid filling and packaging equipment is easy to dismount and clean. In addition, the liquid and paste filling machine is also compliant with GMP standard.

Scope of Application
A wide application of the liquid filler is found in packing water, juice, source, coffee, tea, milk, edible oil, honey, shampoo, ink, shower gel, cheese, lubricating oil, glue, skin care products, cream and painting.

Technical Parameters of Liquid and Paste Filling Machine
Model GCG-BL100 GCG-BL250 GCG-BL500 GCG-BL1000
Power supply AC 220V/50HZ AC 220V/50HZ AC 220V/50HZ AC 220V/50HZ
Power 20W 20W 20W 20W
Filling range 20-100ml 80-250ml 150-500ml 350-1000ml
Filling precision ≤±1% ≤±1% ≤±1% ≤±1%
Filling speed 9-17 times/min 9-16 times/min 8-12 times/min 7-12 times/min
Air flow 5.7ft3/min 5.7ft3/min 5.7ft3/min 5.7ft3/min
Weight 35kg 35kg 45kg 45kg
Dimensions 980×550×1450 mm 1000×550×1550 mm 1100×550×1600 mm 1300×780×1650 mm
