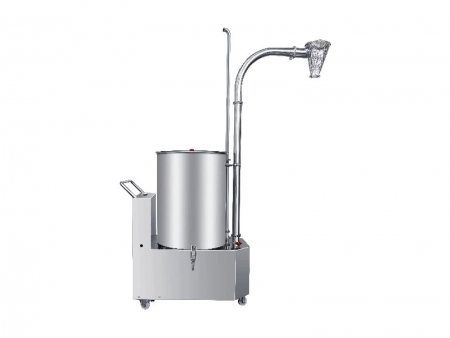

Empty Capsule Sorter Elevator, JQS Series
Request a Quote
Empty capsule sorter elevator, as the name implies, is used to sort and elevate empty capsules into the hopper of the capsule filling machine. It adopts air amplifier as its air source and two conveying processes, so that issues such as capsule separation or locking caused during conveying can be efficiently avoided. Thanks to the use of quick couplings, the conveying piping system can be easily disassembled for daily maintenance and cleaning. The entire empty capsule feeding machine is made of stainless steel, respecting both GMP standard and our own quality demands of high efficiency and environmental protection.
Samples
Technical Specifications
| Capacity | 8000pcs/min |
| Power supply | 220V 50HZ 1A |
| Power | 60W |
| Compressed air pressure | < 0.5mpa |
| Compressed air flow | > 180L/min |
| Weight | 55kg |
| Overall dimensions | 682x600x1646 (mm) |
