Vertical Capsule Sorting Polisher, JFP Series

Vertical Capsule Sorting Polisher, JFP Series
Vertical Capsule Sorting Polisher, JFP Series
Vertical Capsule Sorting Polisher, JFP Series
Vertical Capsule Sorting Polisher, JFP Series
Request a Quote

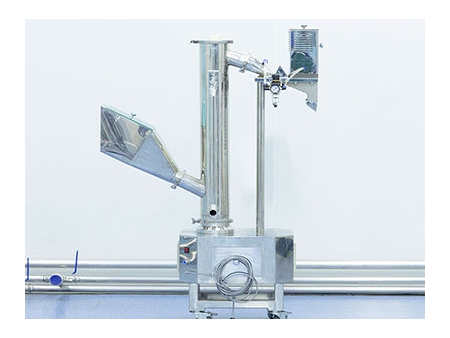

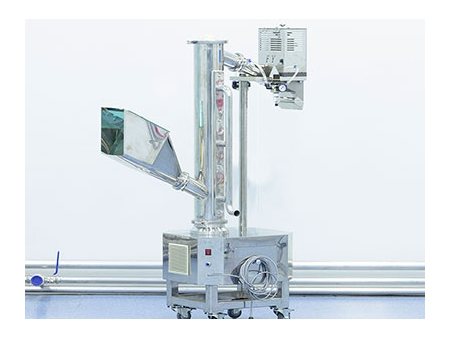

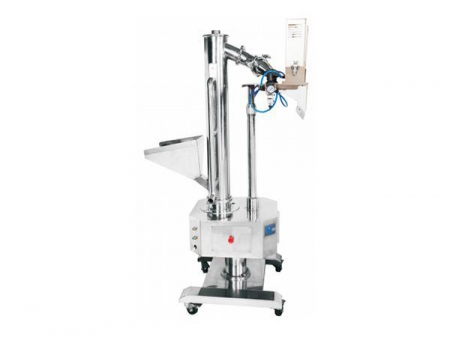

JFP series vertical capsule polisher integrates three functions of capsule polishing, elevating and sorting. It is compatible with any type of capsule filling machine, and can be incorporated into existing production line such as metal detector therefore performing continuous operations of polishing, upward conveying, sorting and detecting.

Features
  • Able to polish up to 8,000 capsules per minute;
  • Compatible with any type of capsule filling machine;
  • Automatic sorting of loose powder, empty, separated or broken capsules;
  • Easy assembly and disassembly thanks to the quick connector;
  • Brush is detachable, the entire machine can be thoroughly cleaned without blind spot, GMP standard compliant;
Technical Specifications
Capacity 8000 pcs/min
Power supply 220V 50HZ 1A
Power 200W
Compressed air pressure < 0.3 m Pa
Compressed air flow > 270L/min
Vacuum flow > 1000L/min
Vacuum degree > 0.13mbar
Weight 138KG
Overall dimensions 682×600×1646 (mm)
