SHO-DDX04 Medical Imaging
Dual-column digital radiography system with 10.4-inch touch screen
Floor-Mounted X-Ray Machine
Request a Quote
This floor-mounted dual-column digital X-ray machine is designed for DR rooms, offering broad imaging applications for head, chest, abdominal, lumbar, and limb examinations. It supports PA, LAT, and clinical static imaging, ensuring precise diagnostics across multiple body regions.
Equipped with a high-performance digital image acquisition system, this radiographic machine delivers outstanding image quality for accurate and reliable results. It is available in two models, SHO-DDX03 and SHO-DDX04, both offering output power options of 20kW & 200mA, 20kW & 320mA, 32kW & 400mA, 40kW & 500mA, and 50kW & 630mA. For advanced imaging needs, the SHO-DDX04 X-ray apparatus even reaches 65kW & 800mA, providing enhanced power and clarity for demanding clinical applications.
Specifications
| Ambient Conditions | |
| Ambient temperature | 10℃ to 40℃ |
| Relative humidity | 30-75% |
| Atmospheric | 70-106 kPa |
| Main head | 9.7 inch touch screen control panel |
| X-Ray Generator | |||||
| Model | SHO-DDX04 Series | ||||
| Output power (kW) | 20 | 32 | 40 | 50 | 65 |
| Current (mA) | 10-320 | 10-400 | 10-500 | 10-630 | 10-800 |
| Voltage (kV) | 40-125 | 40-125 | 40-125 | 40-150 | 40-150 |
| mAs (mAs) | 0.1-320 | 0.1-400 | 0.1-400 | 0.1-630 | 0.1-630 |
| Exposure time (s) | 0.002-6.3 | ||||
| Focus size | 1.0/2.0 | 1.0/2.0 | 1.0/2.0 | 0.6/1.2 | 0.6/1.2 |
| APR program | Equipped | ||||
| Intelligent protection system | It has self-protection system. It will give an alarm and check fault code. | ||||
| X-Ray Tube | |
| Anode type | Rotating Anode |
| Focal Spot value | 0.6 mm / 1.2 mm |
| Maximum voltage | 150 kV |
| Revolving speed of anode | 2800 rpm |
| Inherent filtration | 1.0 mmAl |
| Anode heat storage capacity | 300 kHU |
| Maximum cooling rate of anode | 870 W |
| Housing heat storage capacity | 900 kJ |
| X-ray detector (Iray brand Flat Panel Detector) | |
| Type | Amorphous Silicon |
| Scintillator | Cesium Iodide |
| Active Area | 17×17 inch (43×43 cm) |
| Active Pixel | 3072*3072 |
| Pixel Pitch | 139 um |
| A/D Conversion | 16 bits |
| DQE | ≧70% |
| Spatial Resolution | 36Lp/cm |
| Acquisition time | ≤ 2 s |
| Collimator | |
| Type | Manual Collimator |
| Max. Window | 440×440mm (SID=100cm) |
| Lamp | AC/DC24V, 5W |
| Lamp timer | Automatic illumination with timer for lamp (30 s) |
| Inherent filtration | 1.0 mmAl |
| Illuminant | LED |
| Grid | |
| Densities | 40 lp/cm |
| Ratios | 10:1 |
| Size | 18”×18” |
| Focal distance | 130 cm |
| Photography table | |
| Type | Radiography Table |
| Tabletop size | 2100×800 mm X65 mm |
| load-bearing | 300 KG |
| Floating front and back | 150 mm / 150 mm |
| Floating left and right | 400 mm / 400 mm |
| Column stand movement | |
| Tube stand | |
| Up-down movement | 28-128 cm |
| Stand left-right movement | 78.5-157 cm |
| Rotational angles of stand | 180° to -180° |
| Rotational angles of tube | ±90° |
| Bucky stand | |
| FPD cassette up-down movement | 4-175 cm |
| Workstation | |
| Monitor | 23’’ LCD Dell brand |
| CPU | ≥ 2.8 GHz |
| Memory | ≥ 4 GB |
| HDD | ≥ 1 TB |
| DICOM3.0 | Query for integration with any PACS |
X-Ray Imaging

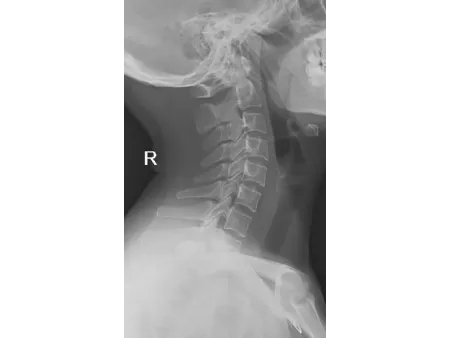

Head radiograph

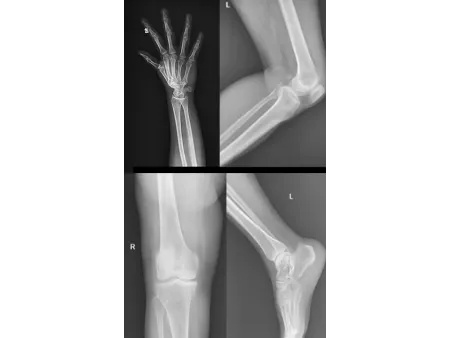

Limb radiograph
Abdominal radiograph

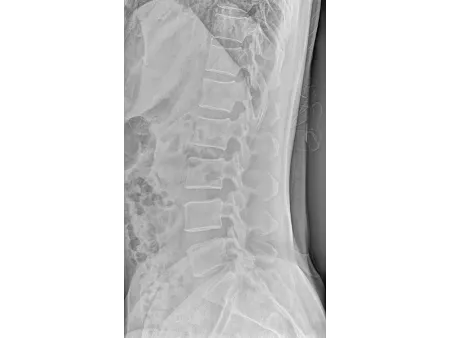

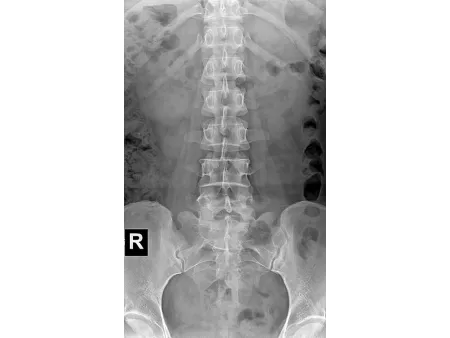

Lumbar radiograph

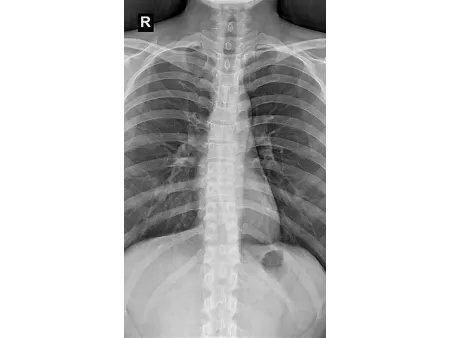

Chest radiograph

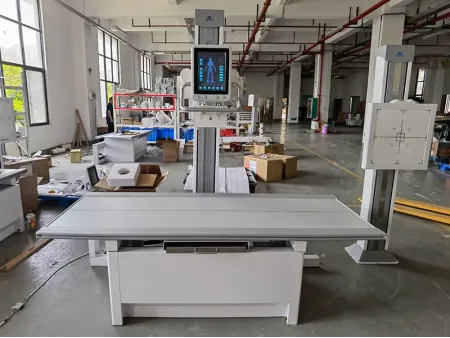

Main Parts

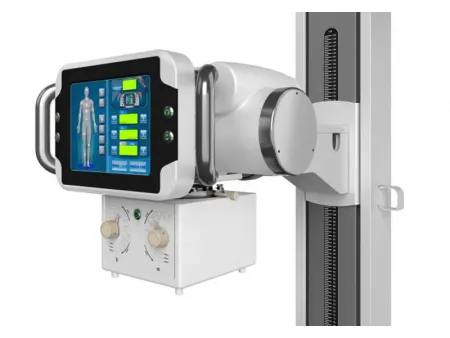

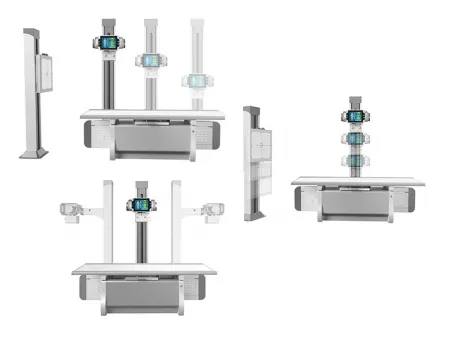

- Column and X-Ray Tube Rotation:
Allows for flexible positioning, making it easy to adjust for different imaging needs. - FPD Compartment on Chest Stand:
Highly mobile, ensuring smooth and precise movement for optimal image capture.

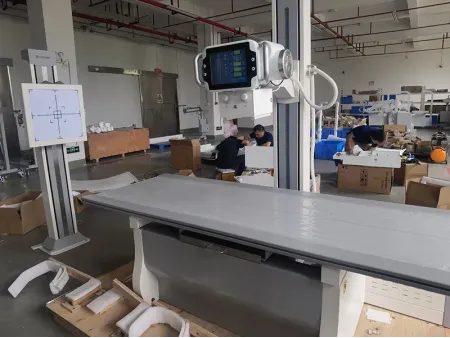

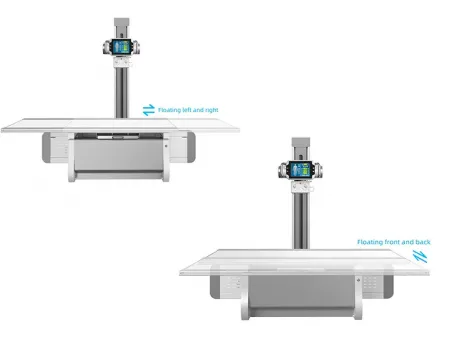

Four-Way Radiographic Table
Supports patients weighing up to 300 kg, providing stability and ease of use.
Operating Control Panel
Features a 10.4-inch LCD touchscreen for intuitive operation.

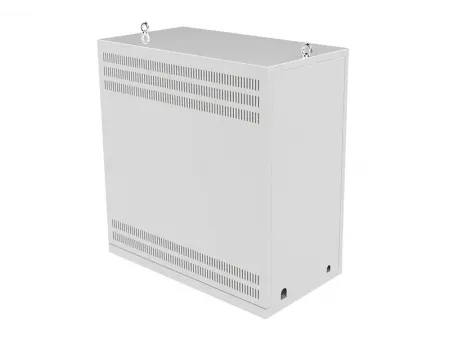

High-Voltage Generator
Ensures consistent and reliable power output for high-quality imaging.

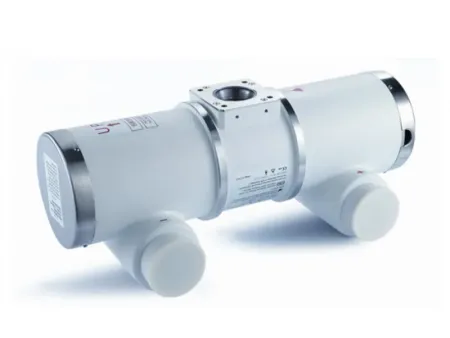

X-Ray Tube
Available with an optional TOSHIBA tube for enhanced imaging performance.

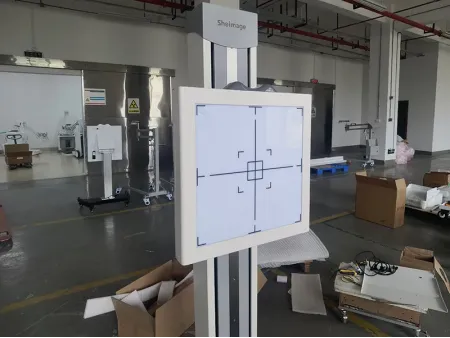

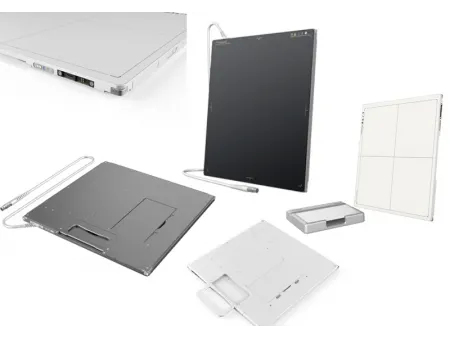

Flat Panel Detector (FPD)
Uses world-renowned Iray technology and is available in both wired and wireless options. The wireless FPD comes with a dedicated battery charger, and the image acquisition software is also supplied by Iray.

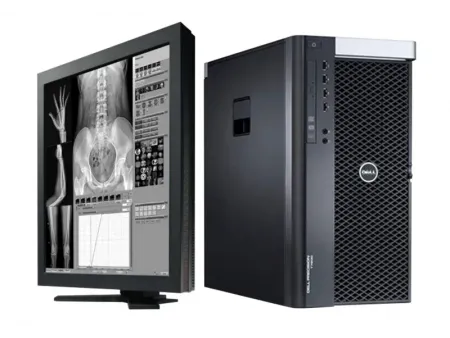

Dell 23-Inch Desktop Workstation
Provides a powerful and efficient platform for image processing and management.

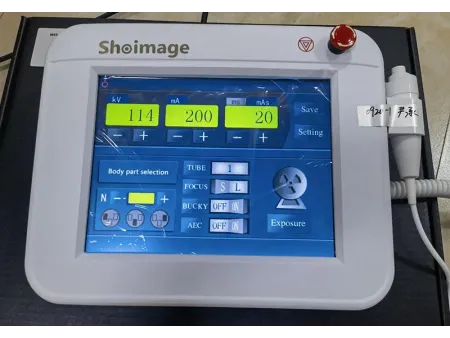

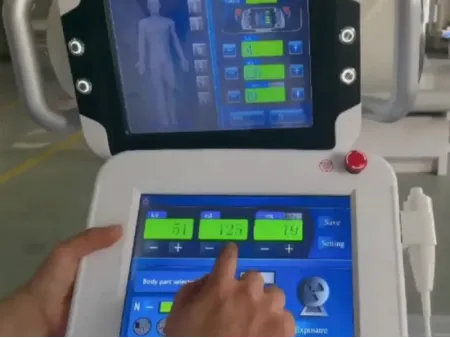

10.4-Inch Touchscreen Exposure Control Panel
Offers precise and convenient control over exposure settings.
Looking for a high-performance X-ray system for your DR room? Contact us today to find the right solution for your facility!
