Request a Quote

SHO-DDX03 Medical Imaging

Dual-column digital radiography system with 7-inch touch screen

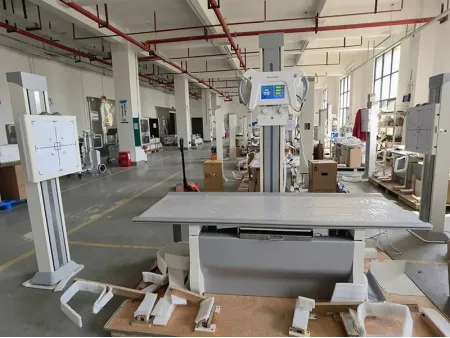

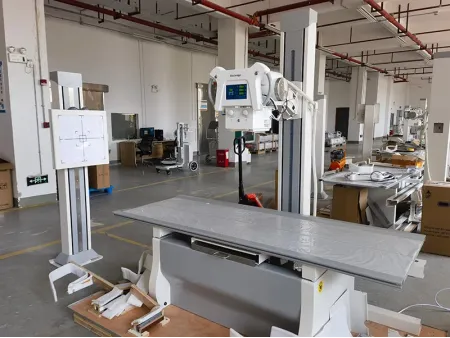

Our dual-column floor-mounted digital X-ray machine is designed specifically for DR rooms, offering wide-ranging applications for head, chest, abdominal, lumbar, and limb imaging. It supports PA, LAT, and clinical static imaging, ensuring precise diagnostics across multiple body regions.

Equipped with a high-performance digital image acquisition system, this radiographic machine delivers exceptional image quality for accurate and reliable results. It is available in two models, SHO-DDX03 and SHO-DDX04, both offering multiple power options, including 20kW & 200mA, 20kW & 320mA, 32kW & 400mA, 40kW & 500mA, and 50kW & 630mA. For advanced imaging needs, the SHO-DDX04 X-ray apparatus even reaches 65kW & 800mA, providing superior power and clarity for demanding clinical applications.

Specifications
Ambient Conditions
Ambient temperature 10℃ to 40℃
Relative humidity 30-75%
Atmospheric 70-106 kPa
Main head 9.7 inch touch screen control panel
X-Ray Generator
Model SHO-DDX03 Series
Output power (kW) 20 32 40 50
Current (mA) 10-320 10-400 10-500 10-630
Voltage (kV) 40-125 40-125 40-125 40-150
mAs (mAs) 0.1-320 0.1-400 0.1-400 0.1-630
Exposure time (s) 0.00-6.3
Focus size 1.0/2.0 1.0/2.0 1.0/2.0 0.6/1.2
APR program Equipped
Intelligent protection system It has self-protection system. It will give an alarm and check fault code.
X-Ray Tube
Anode type Rotating Anode
Focal Spot value 0.6 mm / 1.2 mm
Maximum voltage 150 kV
Revolving speed of anode 2800 rpm
Inherent filtration 1.0 mmAl
Anode heat storage capacity 300 kHU
Maximum cooling rate of anode 870 W
Housing heat storage capacity 900 kJ
X-ray detector (Iray brand Flat Panel Detector)
Type Amorphous Silicon
Scintillator Cesium Iodide
Active Area 17×17 inch (43×43 cm)
Active Pixel 3072*3072
Pixel Pitch 139 um
A/D Conversion 16 bits
DQE ≧70%
Spatial Resolution 36Lp/cm
Acquisition time ≤ 2 s
Collimator
Type Manual Collimator
Max. Window 440×440mm (SID=100cm)
Lamp AC/DC24V, 5W
Lamp timer Automatic illumination with timer for lamp (30 s)
Inherent filtration 1.0 mmAl
Illuminant LED
Grid
Densities 40 lp/cm
Ratios 10:1
Size 18”×18”
Focal distance 130 cm
Photography table
Type Radiography Table
Tabletop size 2100×800 mm X65 mm
load-bearing 300 KG

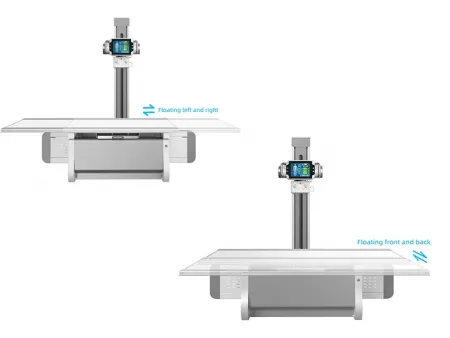

Floating front and back 150 mm / 150 mm
Floating left and right 400 mm / 400 mm

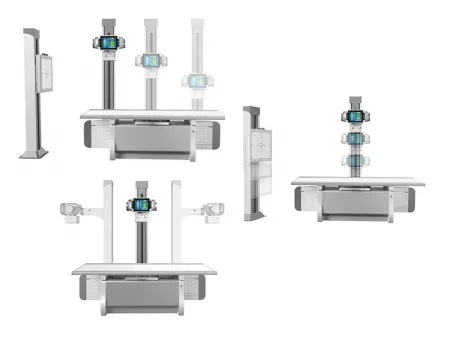

Column stand movement
Tube stand
Up-down movement 28-128 cm
Stand left-right movement 78.5-157 cm
Rotational angles of stand 180° to -180°
Rotational angles of tube ±90°
Bucky stand
FPD cassette up-down movement 4-175 cm
Workstation
Monitor 23’’ LCD Dell brand
CPU ≥ 2.8 GHz
Memory ≥ 4 GB
HDD ≥ 1 TB
DICOM3.0 Query for integration with any PACS

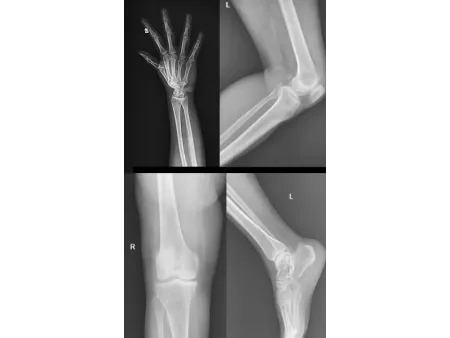

X-Ray Imaging
Head radiograph
Limb radiograph
Abdominal radiograph
Lumbar radiograph
Chest radiograph
Main Parts

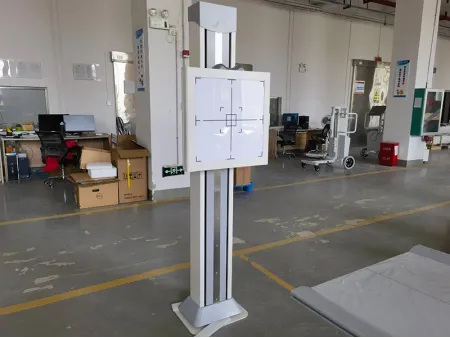

  • FPD Compartment on Chest Stand:
    Highly mobile, ensuring smooth and precise movement for optimal image capture.

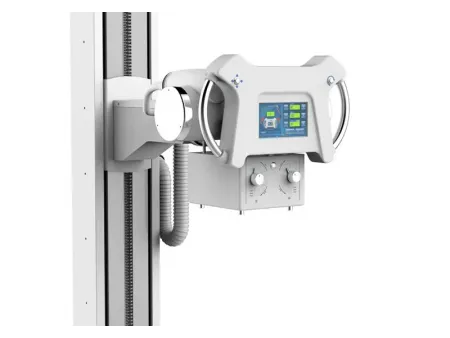

  • Column and X-Ray Tube Rotation:
    Allows for flexible positioning, making it easy to adjust for different imaging needs.
Four-Way Radiographic Table

Supports patients weighing up to 300 kg, providing stability and ease of use.

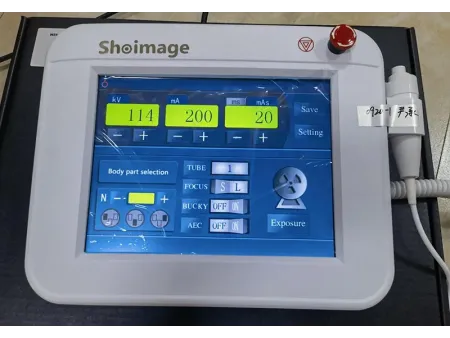

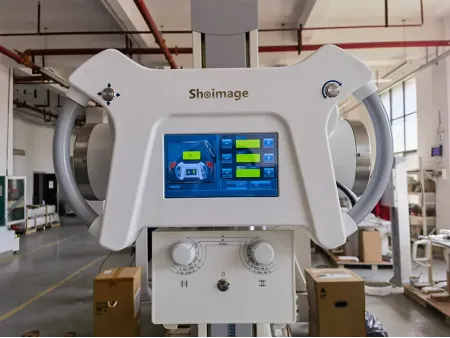

Operating Control Panel

Features a 7-inch LCD color touchscreen, offering an intuitive and user-friendly interface.

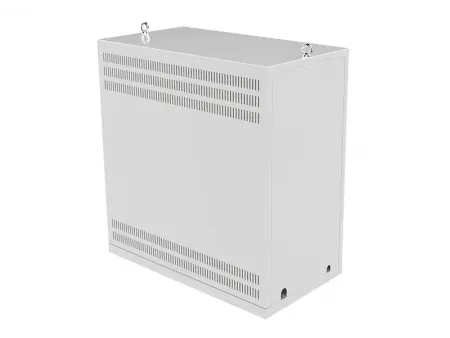

High-Voltage Generator

Ensures consistent and reliable power output for high-quality imaging.

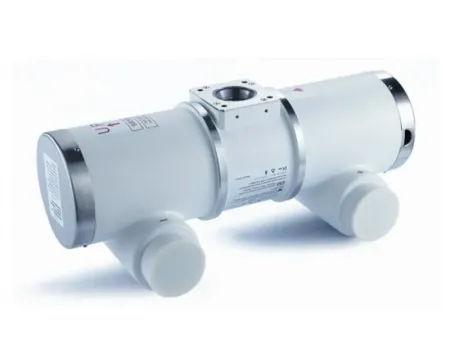

X-Ray Tube

Can be configured with a TOSHIBA tube option, providing enhanced imaging performance

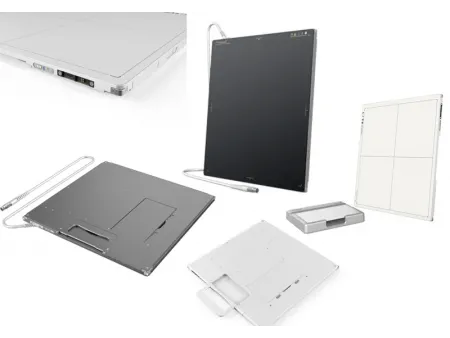

Flat Panel Detector (FPD)

Uses world-renowned Iray technology, available in wired and wireless options. The wireless FPD comes with a dedicated battery charger, and the image acquisition software is also supplied by Iray.

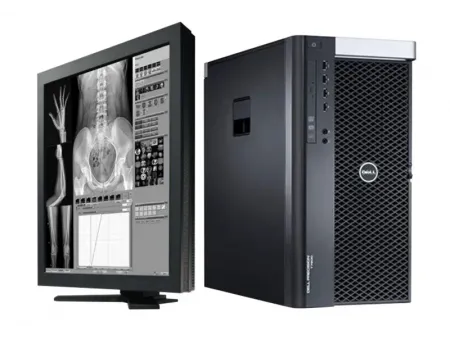

Dell 23-Inch Desktop Workstation

Provides a powerful and efficient platform for image processing and management.

10.4-Inch Touchscreen Exposure Control Panel

Offers precise and convenient control over exposure settings.

Looking for a versatile and high-performance X-ray system for your DR room? Contact us today to find the right X-ray equipment for your facility!
