Floor-mounted Digital X-ray Machine
Request a Quote

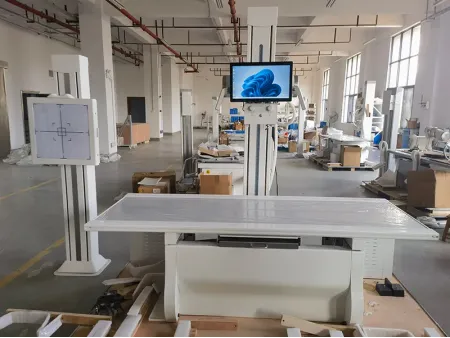

This floor-mounted digital X-ray radiography machine integrates a floor-mounted examination table with a wall-mounted chest stand, creating a practical and efficient imaging workspace. Its smart structural design, smooth mechanical movement, and user-friendly controls allow radiographers to position patients easily and perform a wide range of projections.
As a high-end digital radiography platform widely used across hospitals of different levels, it supports standard, lateral, and oblique imaging of the head, chest, abdomen, lumbar spine, and extremities—meeting the needs of routine clinical examinations.

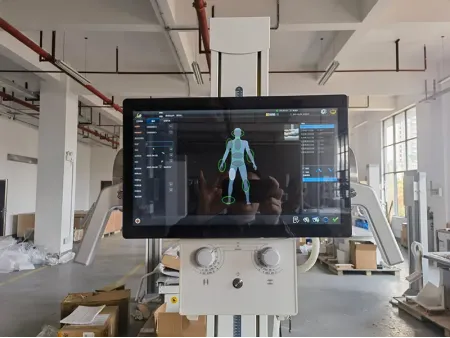

The system features a large 16-inch touchscreen control panel that combines exposure parameter settings, positioning adjustments, and real-time image display in one interface. This synchronized workflow between the workstation and display screen enhances operational efficiency and improves the overall imaging experience.
Features
- High-speed tube rotation and excellent thermal management enable continuous clinical operation with extended system lifespan.
- A high-frequency X-ray generator provides strong power output and delivers stable, high-quality radiation for a wide range of examinations.
- An intelligent high-voltage control system integrates multiple automatic protection functions to support safe, reliable operation in daily clinical workflows.
- The latest a-Si CsI flat panel detector offers high conversion efficiency, producing clear digital images while keeping radiation dose low.
- An advanced digital image processing system includes comprehensive post-processing tools designed to meet diverse diagnostic requirements.
Specifications
Ambient Conditions | Ambient temperature | 10℃～40℃ |
| Relative humidity | 30％～75％ |
| Atmospheric pressure | 70～106 kPa |
| Main head | 16 inch touch screen control panel |
| Output power (kW) | 20 | 32 | 40 | 50 | 65 |
| Current (mA) | 10-320 | 10-400 | 10-500 | 10-630 | 10-800 |
| Voltage (kV) | 40-125 | 40-125 | 40-125 | 40-150 | 40-150 |
| mAs | 0.1-320 | 0.1-400 | 0.1-400 | 0.1-630 | 0.1-630 |
| Exposure time (s) | 0.002~6.3 | ||||
| APR program | Equipped | ||||
| Intelligent protection system | It features a self-protection system that triggers an alarm and displays a fault code when an issue is detected. | ||||
| Model | SHO-DDX05 Series | ||||
| Output power | 20 kW | 32 kW | 40 kW | 50 kW | 65 kW |
| Anode type | Rotating Anode | Rotating Anode | Rotating Anode | Rotating Anode | Rotating Anode |
| Revolving speed of anode | 50 Hz: 2800 rpm 60 Hz: 3000 rpm | 50 Hz: 2800 rpm 60 Hz: 3000 rpm | 50 Hz: 2800 rpm 60 Hz: 3000 rpm | 50 Hz: 2800 rpm 60 Hz: 3200 rpm | 50 Hz: 2800 rpm 60 Hz: 3200 rpm |
| Focus size | 1.0/2.0 | 1.0/2.0 | 1.0/2.0 | 0.6/1.2 | 0.6/1.2 |
| Anode heat storage capacity | 150 kHU | 150 kHU | 150 kHU | 300 kHU | 400 kHU |
| Maximum Anode heat Dissipation | 475 W | 475 W | 475 W | 750 W | 1000 W |
| Housing heat storage capacity | 900 kJ | 900 kJ | 900 kJ | 900 kJ | 1000 kJ |
| Type | Amorphous Silicon |
| Scintillator | Cesium Iodide |
| Active area | 17x17 Inch (43 cm * 43 cm) |
| Active pixels | 3072*3072 |
| Pixel pitch | 139 um |
| A/D conversion | 16 bits |
| DQE | ≧70% |
| Spatial resolution | 36 lp/cm |
| Acquisition time | ≤2 s |
| Type | Manual Collimator |
| Max. window | 440 mm x 440 mm（SID=100 cm） |
| Lamp | AC/DC 24 V, 5 W |
| Lamp timer | Automatic illumination with timer for lamp (30 s) |
| Inherent filtration | 1.0 mmAl |
| Illuminant | LED |
| Densities | 40 lp/cm |
| Ratios | 10:1 |
| Size | 18" × 18" |
| Focal distance | 100 cm (Radiography table), 180 cm (Bucky stand) |
| Type | Radiography table |
| Tabletop size | 2100 mm x 800 mm x 60 mm |
| Load-bearing | 300 kg |
| Floating front and back | 120 mm / 120 mm |
| Floating left and right | 380 mm / 380 mm |
| Tube stand | |
| Up-down movement（to photography table） | 28~128 cm |
| Stand left-right movement | 78.5~157 cm |
| Rotational angles of stand | 180°～-180° |
| Rotational angles of tube | ±90° |
| Back stand | |
| FPD cassette Up-down movement | 4~174 cm |
| Monitor | 23" LCD Dell brand |
| CPU | ≥ 2.8 GHz |
| Memory | ≥ 4 GB |
| HDD | ≥ 1 TB |
| DICOM3.0 | Query for integration with any PACS |
| Functions | Import / export function |
| Image info | |
| Management of patient info | |
| Post processing | |
| Measurement, etc. |
X-Ray Imaging
Head radiograph
Limb radiograph
Abdominal radiograph
Lumbar radiograph
Chest radiograph
Main Parts
- FPD Compartment on Chest Stand:
Highly mobile, ensuring smooth and precise movement for optimal image capture. - Column and X-Ray Tube Rotation:
Allows for flexible positioning, making it easy to adjust for different imaging needs.
Four-Way Radiographic Table
Supports patients weighing up to 300 kg, providing stability and ease of use.
Operating Control Panel
Features a 7-inch LCD color touchscreen, offering an intuitive and user-friendly interface.
High-Voltage Generator
Ensures consistent and reliable power output for high-quality imaging.
X-Ray Tube
Can be configured with a TOSHIBA tube option, providing enhanced imaging performance
Flat Panel Detector (FPD)
Uses world-renowned Iray technology, available in wired and wireless options. The wireless FPD comes with a dedicated battery charger, and the image acquisition software is also supplied by Iray.
Dell 23-Inch Desktop Workstation
Provides a powerful and efficient platform for image processing and management.
10.4-Inch Touchscreen Exposure Control Panel
Offers precise and convenient control over exposure settings.
Looking for a versatile and high-performance X-ray system for your DR room? Contact us today to find the right X-ray equipment for your facility!
