Floor-Mounted Digital X-Ray Machine

Request a Quote

Website: http://medimaging-en.com/1-3-3-floor-mounted-digital-x-ray-machine.html

SHO-DDX01

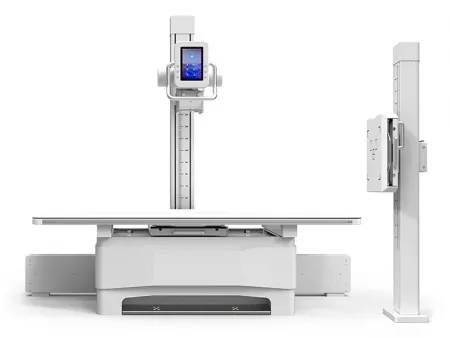

Built as a floor-mounted digital X-ray machine, it features a coordinated X-ray tube and flat panel detector that maintain precise alignment throughout imaging. Optional AEC and DAP functions can be added to strengthen exposure control and ensure consistent diagnostic quality. Facilities needing faster patient positioning can upgrade the radiographic table to a six-way floating tabletop, improving comfort and overall workflow.

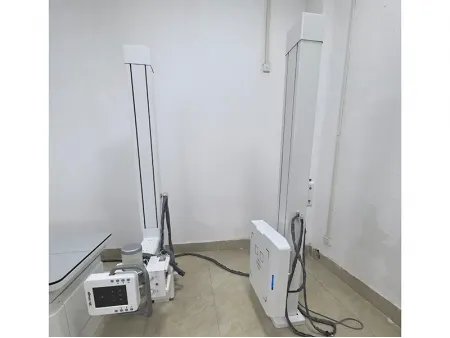

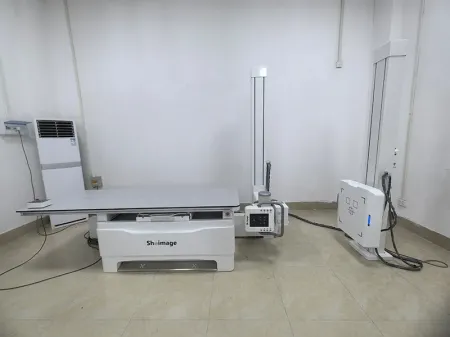

The machine integrates a floor-mounted table with a wall-mounted chest stand, creating a clean and efficient room layout. Its smooth mechanical movement and intuitive operating controls give radiographers greater flexibility when adjusting patient positions and selecting projection angles.

As a versatile high-end DR platform, the SHO-DDX01 supports a wide range of routine clinical examinations, including head, chest, abdominal, lumbar spine, and extremity imaging. It accommodates PA, lateral, oblique, and angled views, making it suitable for hospitals and clinics of all sizes.

Features

The X-ray tube operates at a high rotational speed and is supported by an efficient heat-dissipation system, allowing the equipment to perform reliably during long clinical sessions while maintaining an extended service life.
The high-frequency generator provides strong output performance with stable, high-quality X-ray emission, ensuring dependable imaging results across routine and demanding examinations.
A smart high-voltage control system incorporates multiple built-in protection functions to maintain safe and stable operation throughout daily clinical use.
The advanced a-Si CsI flat panel detector delivers high conversion efficiency, enabling clear, detailed digital images with reduced radiation dose.
A robust digital imaging platform offers comprehensive post-processing capabilities, giving clinicians the tools needed to support a wide variety of diagnostic requirements.

Specifications

Ambient Conditions

Ambient temperature	10℃–40℃
Relative humidity	30%–75%
Atmospheric pressure	70–106 kPa
Main head	10.4-inch touchscreen control panel

X-ray Generator

Model	SHO-DDX01 Series
Output power (kW)	40	50	65
Current (mA)	10-500	10-630	10-800
Voltage (kV)	40-125	40-150	40-150
mAs	0.1-400	0.1-630	0.1-630
Exposure time	0.002~6.3S
APR program	Equipped
Intelligent protection system	Includes a self-protection system with automatic alarms and fault code diagnostics.

X-ray Tube

Output power (kW)	40	50	65
Anode type	Rotating anode
Revolving speed of anode (rpm)	50Hz: 2800 60Hz: 3000
Focus size	1.0/2.0	0.6/1.2	0.6/1.2
Anode heat storage capacity (kHU)	150	300	400
Maximum Anode Heat Dissipation (W)	475	750	1000
Housing heat storage capacity (kJ)	900	900	1000
X-ray tube Rotation angel (°)	±180	±180	±180

X-ray Detector (Wired Flat Panel Detector)

Type	Amorphous Silicon
Scintillator	Cesium Iodide
Active area	17x17 Inch (43 cm*43 cm)
Active pixel	3072*3072
Pixel pitch	139 um
A/D Conversion	16 bits
DQE	≧70%
Spatial resolution	36 Lp/cm
Acquisition time	≤2 s

Collimator

Type	Manual collimator
Max. Window	440 mm × 440 mm (SID = 100 cm)
Lamp	AC/DC 24 V, 5 W
Lamp timer	Automatic illumination with timer for lamp (30S)
Inherent filtration	1.0 mmAl
Illuminant	LED

Grid

Densities	40 lp/cm
Ratios	10:1
Size	18" × 18"
Focal distance	100 cm (Radiography table), 180 cm (Bucky stand)

Photography Table

Type	Radiography table
Tabletop size	2300 mm × 800 mm x 60 mm
Load-bearing	300 kg
Floating front and back	740 mm ±3%
Floating left and right	210 mm ±3%
FPD tray movement range	650 mm ±3%

Column stand movement

Tube stand
Up-down movement (to photography table)	1500 mm ±3%
Stand left-right movement	1900 mm ±3%
Rotational angles of stand	180°～-180°
Back stand
Detector vertical movement range (distance between detector center and ground)	1500 mm ±3%
The lowest point of the detector center relative to the ground	≤ 46 cm
Automatic tracking function	Yes, electric correspondence between the X-ray tube and flat panel detector

Workstation

Monitor	23" LCD Dell brand
CPU	≥ 2.8 GHz
Memory	≥ 4 GB
HDD	≥ 1 TB
DICOM3.0	Query for integration with any PACS
Functions	Import/export function
	Image info
	Management of patient info
	Post processing
	Measurement etc.

Console

Control room console	10.4 inch LCD color touch screen console for exposure parameter setting and exposure
Controller	Wired controller for electric movement

X-Ray Imaging

Head radiograph

Limb radiograph

Abdominal radiograph

Lumbar radiograph

Chest radiograph

Main Parts

FPD Compartment on Chest Stand:
Highly mobile, ensuring smooth and precise movement for optimal image capture.
Column and X-Ray Tube Rotation:
Allows for flexible positioning, making it easy to adjust for different imaging needs.

Four-Way Radiographic Table

Supports patients weighing up to 300 kg, providing stability and ease of use.

Operating Control Panel

Features a 7-inch LCD color touchscreen, offering an intuitive and user-friendly interface.

High-Voltage Generator

Ensures consistent and reliable power output for high-quality imaging.

X-Ray Tube

Can be configured with a TOSHIBA tube option, providing enhanced imaging performance

Flat Panel Detector (FPD)

Uses world-renowned Iray technology, available in wired and wireless options. The wireless FPD comes with a dedicated battery charger, and the image acquisition software is also supplied by Iray.

Dell 23-Inch Desktop Workstation

Provides a powerful and efficient platform for image processing and management.

10.4-Inch Touchscreen Exposure Control Panel

Offers precise and convenient control over exposure settings.

Looking for a versatile and high-performance X-ray system for your DR room? Contact us today to find the right X-ray equipment for your facility!
