Pure Aluminum Flexible Duct Machine

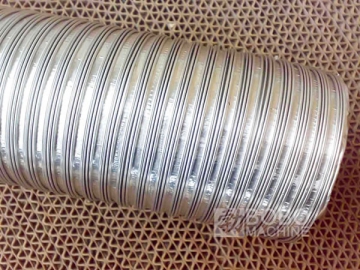

The pure aluminum flexible duct machine produces high quality flexible duct from pure aluminum foil. Equipped with a corrugation forming roller, the machine outputs finished duct that possesses greater rigidity, for ventilation purposes. The forming mould is adjustable to conform to different diameters and eliminates the need to otherwise change the mould. BOBO supplies an auto cutting off system and duct compressor upon request, for the effect of compressing the duct into small volumes for packaging purposes. The aluminum strip width can be customized anywhere from 40-60mm as per client's specifications.
Technical Specifications
Diameter range: 60mm~300mm
Length of aluminum tube: 100-8000mm
Suitable material: Pure aluminum foil 42-55mm wide, 0.05-0.15 thick.
Working speed: 1-5m/min
Main motor power: 0.75kW
Dimension: 1200mm x 550mm x 1200mm
Weight: about 250kg
As a specialized pure aluminum flexible duct machine manufacturer in China, BOBO Machine also offers waste paper baler, filter core making machine, bolt and nut machine, car wheel disc machine, and much more.
