Transverse Duct Flange Forming Machine

Transverse Duct Flange Forming Machine
Transverse Duct Flange Forming Machine
Transverse Duct Flange Forming Machine
Request a Quote

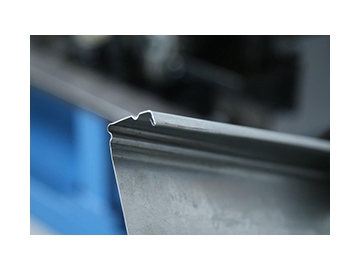

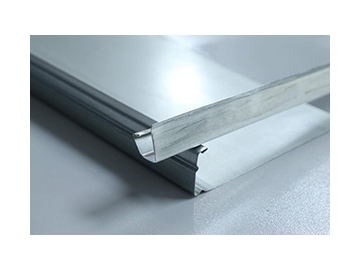

The transverse duct flange forming machine presses galvanized sheet metal to form ducts and flanges in one piece, thus the final product is a transverse duct flange. Our machines have higher productivity, produce less material waste, small duct leakage, and low energy consumption thus saving production cost. The maximum workable material thickness is 1.5mm.

Parameter:
Type SBTDF-12 SBTDF-15
Thickness Galvanized Steel Sheet 0.5-1.2mm Galvanized Steel Sheet 0.8-1.5mm
Stainless Steel 0.5-0.8mm Stainless Steel 0.8-1.2mm
Roller SHape
Power 2.2Kw 3Kw
Height Of Flange 33±0.5mm 33±0.5mm
Weight 760Kg 910Kg
Dimension 2540×720×1000mm 2750×750×1000mm
