Conical Mill, PRM Series

Request a Quote

Website: http://powerhandling-en.com/1-3-3-conical-mill.html

Conical sieve granulating machine for milling of wet or dry granules in pharmaceutical, food, and chemical processes

The conical mill is designed for milling wet materials in pharmaceutical, food, and chemical industries. It features a vertical conical screen that ensures uniform particle distribution and high throughput. Depending on the properties of the material, round-hole, square-hole, or rasp-type screens can be selected. With a large screening area and a high-speed rotating rotor, the PRM conical mill can achieve a processing capacity of up to 1500kg/h.

Specifications

Model	Processing capacity	Effective screen area	Voltage	Motor speed	Power	Net weight	Remarks
PRM-15B	100–400kg/h	125cm²	3 phase,380V,50Hz	500–1500rpm	2.2kW	100kg	Synchronous belt drive
PRM-20A	150–1200kg/h	400cm²	3 phase,380V,50Hz	500–1500rpm	3kW	150kg	Helical gear drive
PRM-20B	150–1200kg/h	400cm²	3 phase,380V,50Hz	500–1500rpm	4kW	250kg	Synchronous belt drive
PRM-30B	400–1500kg/h	780cm²	3 phase,380V,50Hz	500–1500rpm	5.5kW	320kg	Synchronous belt drive

Features

Interchangeable rotors for both dry and wet milling applications
Simple installation design with an error-proof locking system for secure assembly
Modular structure offering flexible configuration to meet various process requirements
Adjustable clearance between rotor and screen based on material characteristics
Rotary granulation design ideal for post-fluid bed processes

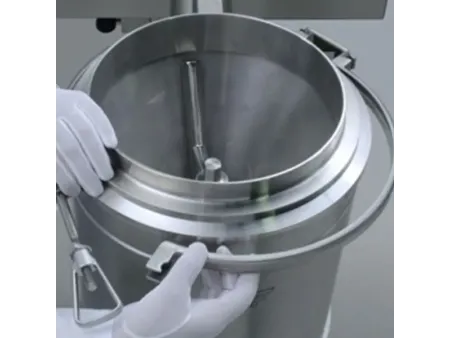

Removable milling chamber for easy cleaning and sterilization
Optional waterproof, dustproof, and explosion-proof configurations available

Typical Applications

Sodium carboxymethyl cellulose
Instant coffee granules

Compatible Equipment

The conical mill can be integrated with our sieving machines and vacuum conveying systems to form a complete processing line tailored to different production needs.

For powder processing, we also provide a .
