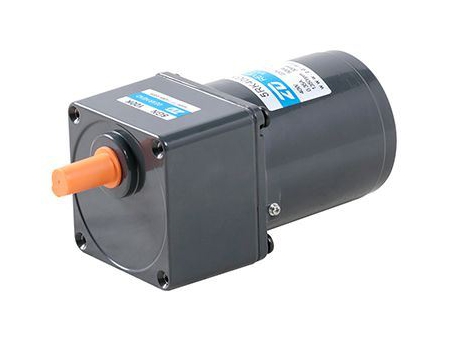

90mm 40W Induction Motor

Request a Quote

View All: http://zd-drivers.com/1-1-4-induction-ac-gear-motor.html

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque m N.m	Rated Speed r/min	Capacitor μF
5IK40GU-A	40	1ph 100	50	0.65	220	315	1250	12
			60	0.70		260	1550
5IK40GU-E	40	1ph 110	60	0.55	200	260	1550	8.0
		1ph 120		0.60
5IK40GU-C	40	1ph 220	50	0.35	220	315	1250	2.5
		1ph 230		0.40
5IK40GU-H	40	1ph 220	60	0.35	200	260	1550	2.5
		1ph 230		0.40
5IK40GU-S	40	3ph 220	50	0.30	800	315	1250	-
			60	0.25	660	250	1550
5IK40GU-S3	40	3ph 380	50	0.17	800	315	1250	-
			60	0.14	660	250	1550

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
5IK40GU-A 5IK40GU-E 5IK40GU-C 5IK40GU-H 5IK40GU-S 5IK40GU-S3	5GU()RC 5GU()RT	Allowance Torque	50Hz	1.58	1.89	2.63	3.16	3.79	5.26	6.31	6.80	9.50	11.4	14.2	17.0	18.9	20.0	20.0	20.0
	5GU()RC 5GU()RT	Allowance Torque	60Hz	1.27	1.53	2.12	2.55	3.05	4.24	5.09	5.50	7.64	9.16	11.5	13.7	15.3	18.3	20.0	20.0

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
5IK40GN-A 5IK40GN-E 5IK40GN-C 5IK40GN-H 5IK40GN-S 5IK40GN-S3	5GN()K	50Hz	0.77	0.92	1.30	1.50	1.90	2.30	2.38	3.20	3.80	4.60	4.88	5.70	6.90	8.30	8.57	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0
	5GN()K	60Hz	0.63	0.76	1.10	1.30	1.60	1.90	2.00	2.60	3.20	3.80	4.07	4.70	5.70	6.80	7.19	8.60	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0

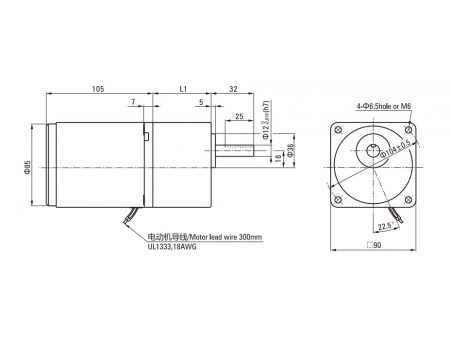

L1=60mm

Applications

Food and Beverage Processing Sausage grillers, milk tea sealing machines, ice makers, automatic tea-roasting machines, meat grinders.

Packaging Equipment Carton sealers, kraft paper packaging machines.

Semiconductor Manufacturing: Precision handling and assembly equipment.

Battery Manufacturing Lithium battery processing systems.

Intralogistics Conveyor systems for logistics and warehousing.

Printing and Binding Conical plastic cup printers, industrial printers, paper mounting machines.

Woodworking Machinery Edge banding machines, sawing equipment, automated woodworking production lines.

Textile Industry Textile production equipment.

Livestock Management Manure removal systems, pig farming equipment, feeding systems.

Inspection Systems Security inspection machines.

Dust Removal Systems Industrial dust removal equipment.

Injection Molding Auxiliary systems for injection molding machines.

Access Control Systems Speed gates, channel gates.
