Stage Lighting RGBAL LED Spot Profile Light Code SS857XALT Stage Lighting

Stage Lighting RGBAL LED Spot Profile Light  Code SS857XALT Stage Lighting
Stage Lighting RGBAL LED Spot Profile Light  Code SS857XALT Stage Lighting
Stage Lighting RGBAL LED Spot Profile Light  Code SS857XALT Stage Lighting
Stage Lighting RGBAL LED Spot Profile Light  Code SS857XALT Stage Lighting
Stage Lighting RGBAL LED Spot Profile Light  Code SS857XALT Stage Lighting
Stage Lighting RGBAL LED Spot Profile Light  Code SS857XALT Stage Lighting
Request a Quote
Characteristics
  • Master slave/interconnected multi - machine control
  • Support DMX512 control
  • Multiple DMX control modes
  • Over-temperature protection
  • Frequency flashing function
  • Nonlinear dimming speed setting
  • Password protected keyboard
Technical Specifications
  • Optical System
      Light source: 250W RGBAL
      Color temperature: 2700K-8000K
      Optical angle: 15°-30°
  • Electrical Connections
      Input voltage: 100-240VAC, 50/60Hz
      Rated power: 240W
      Drive current: 1.6A
      Power line: power input and output, signal input and output
  • Control System
      Dimmer: 0-100%16Bit
      Cooling system: Forced convection
      RTCP: DMX512, RDM
      Display: On board control, 0-25Hz strobe
      Channel mode: EXTENDED/6CHS, STANDARD/5CS, SLMPLE/3CHS
  • Appearance
      Size: 648x344x273mm
      Weight: 15kg
      Shell: Die-casting aluminum
      Color: Black
  • Working Environment
      Temperature of working environment: -20℃~45℃
      IP Rating: IP66
  • Approvals
      Certification
      CE, MET

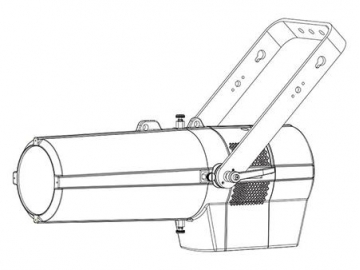

Dimensions
Illumination Contours

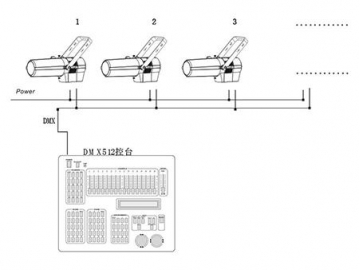

Installations
Optional Accessories
