Characteristics

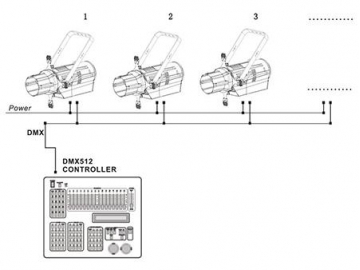

  • Master slave/interconnected multi - machine control
  • Support DMX512 control
  • Multiple DMX control modes
  • Over-temperature protection
  • Gray scale level 16 bits
  • Frequency flashing function
  • Password protected keyboard
Technical Specifications
  • Optical System
      Light source: 250W LED
      Color temperature: 2700K-8000K
      Color rendering index: ≥90Ra
      CQS:>90
      Optical angle: 5°, 10°, 19°, 26°, 36°, 50°, 15°-30°, 25-50°
  • Electrical Connections
      Input voltage: 100-240VAC, 50/60Hz
      Rated power: 300W
      Drive current: 1.6A
      Power line: Power input and output, DMX input and output
  • Control System
      Dimming: 0-100%16Bit dimming
      Cooling system: Forced convection
      RTCP: DMX512, RDM
      Functional effect: Display panel-controlled static state and 0-20Hz strobe effect
      Channel mode: HSIC(8CHS) , SDO(6CHS) , SIMPLE(8CHS), COLOR 8BIT(11CHS), COLOR 16BIT(17CHS)
  • Appearance
      Size: 700x301x233mm
      Weight: 10.3kg
      Shell: Die-casting aluminum
      Color: Black
  • Working Environment
      Ambient temperature: 0~45℃
      IP Rating: IP20
  • Approvals
      Certification
      CE, MET
Dimensions
Illumination Contours
Installations
Optional Accessories
