Automatic Linear Magnetic Pump Liquid Filling Machine Manufacturer

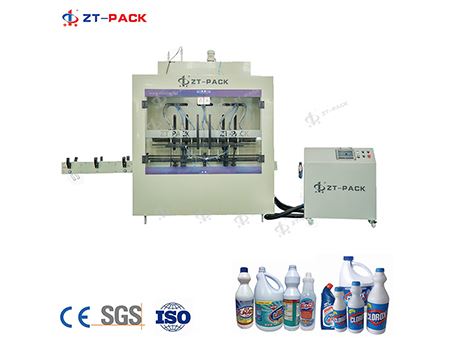

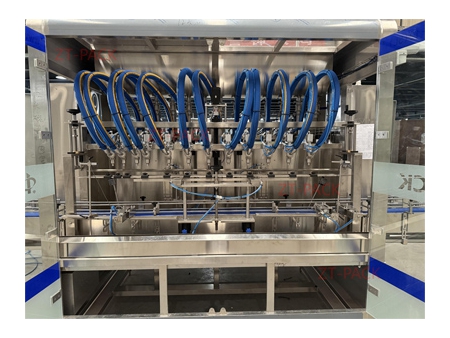

Automatic Linear Magnetic Pump Liquid Filling Machine

Request a Quote

View All: http://ztpackingmachine.com/1-3-9-2-automatic-tracking-liquid-filling-machine.html

Accurately filling liquids of varying viscosity, especially without leaks, spills, or product waste, is a common challenge in many automated production environments. From sticky sauces to smooth detergents, each type of product requires specific handling to ensure consistent, high-quality results. To meet these needs, the automatic linear magnetic pump filling machine provides a clean and precise solution for low, medium, and high-viscosity liquids. Powered by magnetic drive technology, it ensures leak-free and highly accurate filling across a variety of applications. This equipment is suitable for non-corrosive products such as jams, sauces, detergents, softeners, condiments, ointments, and lubricants, making it a reliable choice for the food, daily chemical, pharmaceutical, and oil industries. Its modular design allows for easy adjustments to accommodate different bottle shapes and sizes, combining efficient performance with user-friendly operation.

Suitable Applications

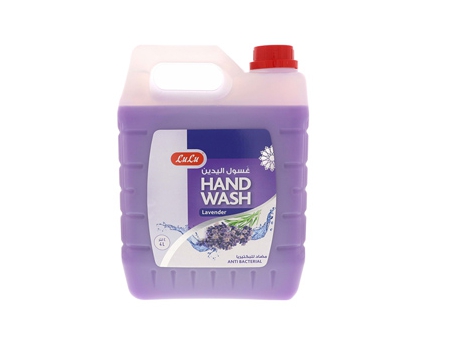

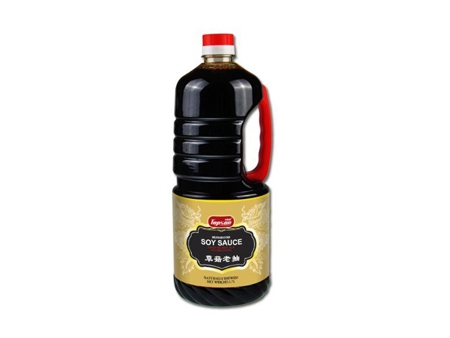

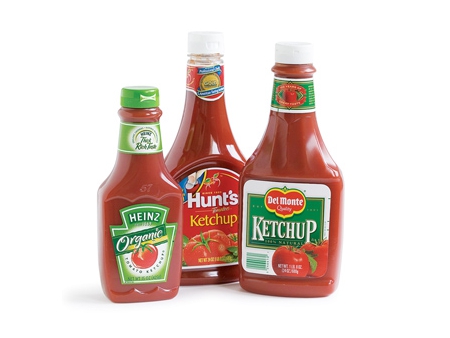

Food industry: Ideal for filling jams, sauces, condiments, edible oils, and honey.

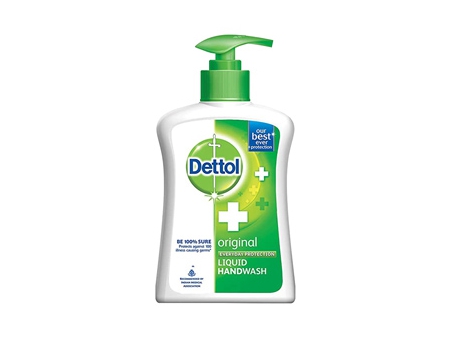

Cosmetics and personal care: Suitable for products such as shampoo, conditioner, body wash, and creams.
Chemical sector: For items such as aquaculture medicine, pesticides, grease, and adhesives.

Design Features

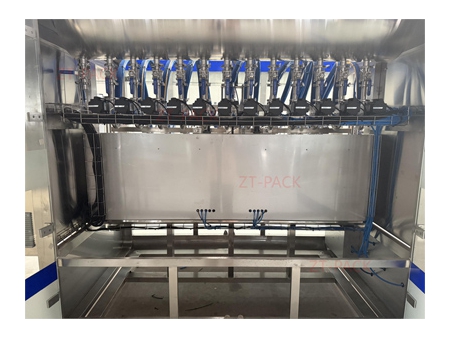

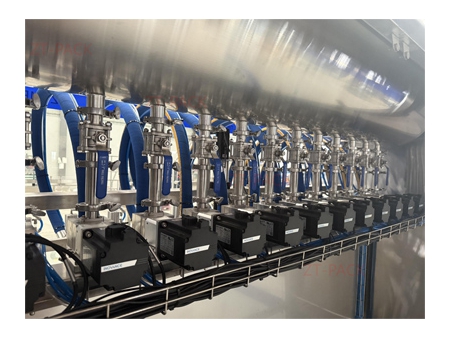

Magnetic Pump Filling Technology:

The magnetic pump system eliminates mechanical seals, preventing leakage and protecting both operators and machinery from long-term exposure to chemical additives. This setup works especially well with detergents that contain surfactants and fragrances.
Smooth and uniform flow reduces liquid fluctuation, which helps maintain consistent filling accuracy. This is particularly important when handling small doses or high-value chemical products.
Both speed and flow can be adjusted through variable frequency control, allowing flexible adaptation to different container shapes and volumes.
Liquid is drawn directly from the tank without using piston cylinders, making the system easier to clean and more hygienic compared to traditional designs.

System Intelligent Control

The filling process is highly accurate, with an error margin of no more than ±0.2%. For example, a 1000ml fill will have a maximum variation of just ±2ml, ensuring reliable and consistent results in every bottle.

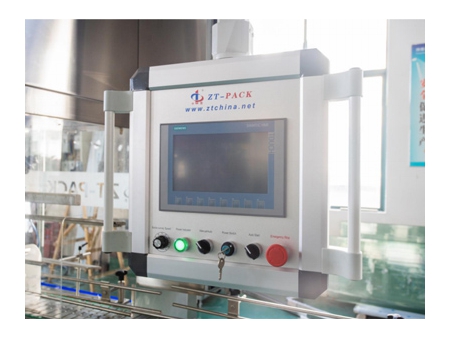

A touchscreen interface allows operators to set and store parameters such as volume, filling speed, and batch numbers. The system also supports data traceability, making it easier to manage and monitor production records.

Specifications (50-5000mL Containers)

Model	ZTMP-4	ZTMP-6	ZTMP-8	ZTMP-10	ZTMP-12
Filling head	4	6	8	10	12
Capacity (500mL)	1200B/H	1800 B/H	2400 B/H	3000 B/H	4000 B/H
Power	1kW	1kW	1kW	1.5kW	1.5kW
Applicable bottle	Diameter: Ø40-Ø100mm Height: 80-280mm
Filling accuracy	≤1000ml: ±2ml 1000-5000ml: ≤±0.2%
Filling range	50-5000ml
Filling system	Magnetic pump and Siemens control
Air pressure	0.6MPa
Power supply	AC 220V/380V, 50/60Hz

Technical Advantages

Handles a wide range of liquid viscosities, from thick products such as peanut butter, shampoo, and conditioner to foaming formulations such as detergents and cleaning gels. Adjusting the nozzle type, flat, fan-shaped, or needle-style, makes it easy to accommodate different flow behaviors without additional setup complexity.
Maintenance is streamlined by a modular pump and piping system that supports quick disassembly, reducing downtime and preventing cross-contamination between product batches. For industries requiring strict sanitation, a CIP interface can be integrated to automatically flush out residues and comply with hygiene standards.
Magnetic pump technology significantly reduces mechanical friction, allowing critical components to operate reliably for more than five years under normal conditions. A servo-controlled conveyor ensures accurate container positioning, maintaining ±0.1 mm precision throughout extended production cycles.

Operational Advantages

A fully enclosed filling process keeps chemical liquids safely contained, protecting both operators and the surrounding environment from accidental contact or contamination during continuous use.

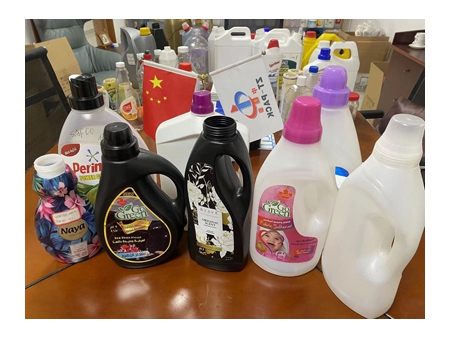

High-precision dosing helps reduce product loss and supports more efficient use of raw materials. One liquid filling machine can handle various bottle types and sizes, making it easier to consolidate equipment and cut unnecessary costs.
Clean and consistent filling prevents dripping or residue at the container opening, helping maintain a neat package appearance that reflects well on the product and reinforces brand perception.
Adjustments between different bottles and volumes can be made quickly, allowing production lines to respond efficiently to diverse order sizes and frequent format changes.
Built with a modular structure, intelligent controls, and durable components, this liquid filling system adapts seamlessly to both short-run batches and high-volume production schedules, offering flexibility without compromising on accuracy or output speed.
