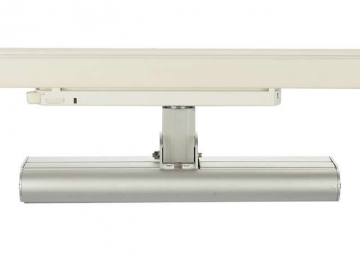

A2 Series LED Track Lighting Head, Double Beam Angle, Track Linear Light
Request a Quote
Features
- The modular design with power supply and track adaptor gives the linear light a simple, fashionable appearance.
- The unique optical design offers various beam angle to different illumination such as Asymmetric L/R and Double Asymmetric.
- Two kinds of double beam angle: 20X76°and 70X100°are optional.
- LED linear light can be movable and do not need to connect additional wires.
- LED linear light is an energy-saving, low maintenance alternative to traditional linear fluorescent track lights.
Specification
- Power 20W/25W/30W
- LED Chip Osram SMD2835
- LED Driver PowerGear and Global module driver both are available
- Dimming option Non-dimming, DALI, TRIAC, 0/1-10V
- PF >0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- Beam Angle 20X76°, 70X100°
- Body Material 6063 brushed aluminum alloy
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black/white
- Track adapter PowerGear / Global
- Phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 5 Years
Dimensions
Product Models
| Model No. | Power | Dimension (L*W*H) | LED Chip | CCT | CRI | Luminous Efficacy | |
| BH-TL-20W-A2 | 20W | 286X90X148mm | Osram SMD 2835 | 2700K 3000K 3500K 4000K 5000K | 80 90 | 90-110lm/W @CRI80 | |
| BH-TL-25W-A2 | 25W | ||||||
| BH-TL-30W-A2 | 30W |
Photometric

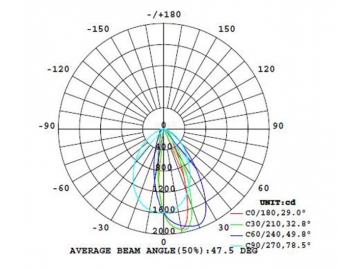

- Luminous Intensity Distribution Diagram 20W Beam Angle 20X76°

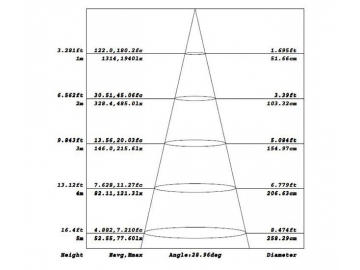

- The Average Illuminance Effective Figure 20W Beam Angle 20X76°

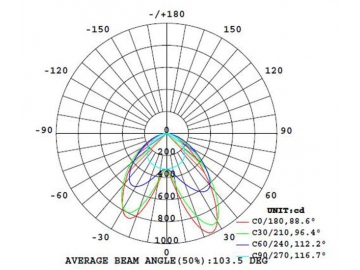

- Luminous Intensity Distribution Diagram 20W Beam Angle 70X100°

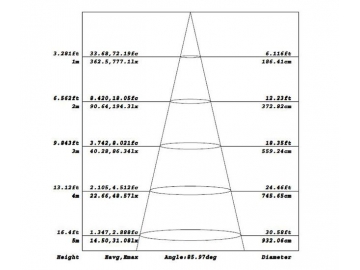

- The Average Illuminance Effective Figure 20W Beam Angle 70X100°
