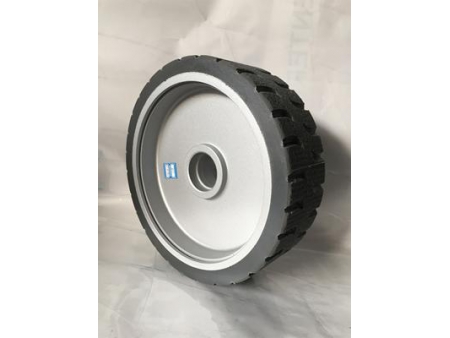

Automatic Floor Scrubber Wheel
We provide customized service for automatic floor scrubbers that are equipped with skid resistance polyurethane driving wheels, thus meeting the needs for cleaning equipment installation in different environments and locations.
Polyurethane solid wheels can be used on ground that is either smooth, or slippery due to oil, such as marble tile or epoxy flooring. The wheel tread and aluminum alloy steel rim are produced here at Yulin, and can also be customized as per customer requirements and actual usage processes. We continuously update existing product and develop new ones, so that no matter the requirements for hardness, wear resistance, resilience, compression deformation, comfort or skid requirements, we have everything a client needs.

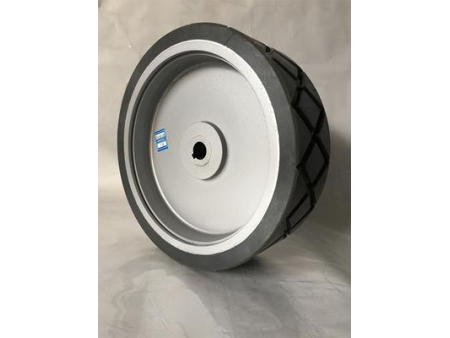

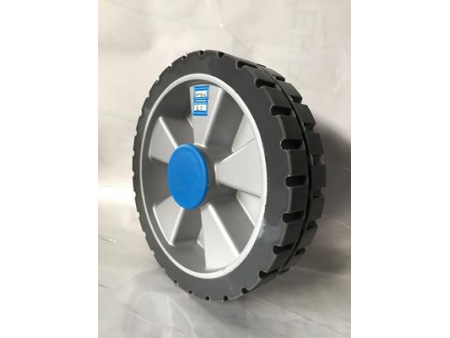

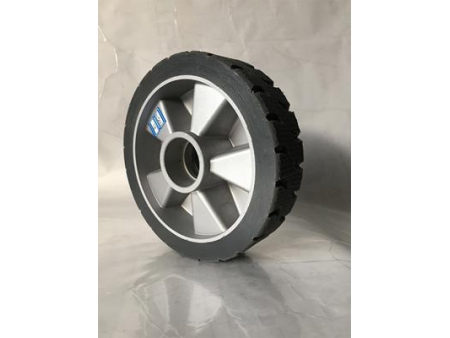

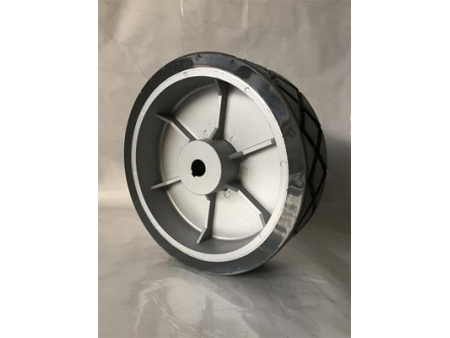

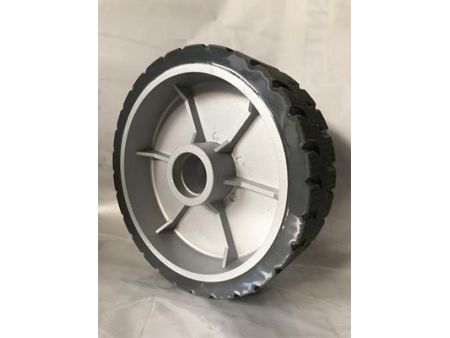

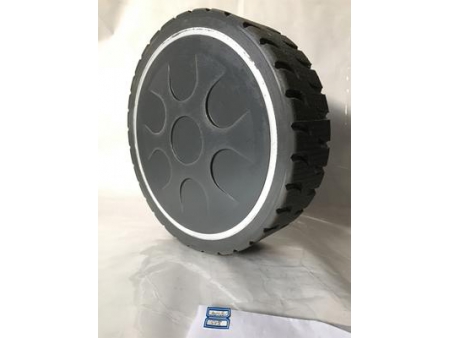

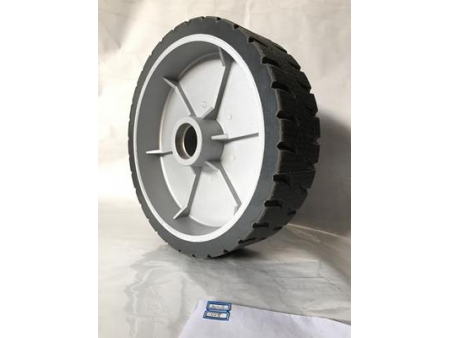

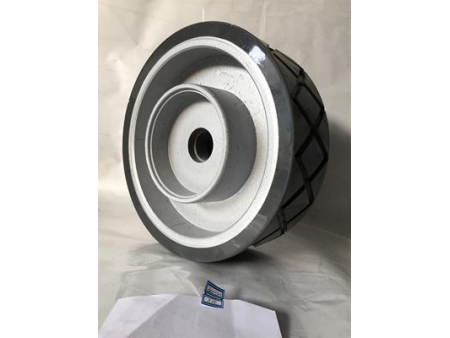

- Dia:200 x 60 flat(obverse side
- Dia: 200- x 60 flat(reverse side)
- Dia:256 x 80-47holes S grain (obverse side)
- Dia:256 x 80-47holes S grain (reverse side)
- Dia:300 x 80-47 S grain (obverse side)
- Dia:300 x 80-47 S grain-(reverse side)
- Dia:300 x 100 S grain (obverse side)
- Dia:300 x 100S grain (reverse side)
- Dia:300 x 100 X grain (obverse side)
- Dia: 300 x 100 X grain(reverse side).
- Dia:200 x 50S grain(reverse side)
- Dia:200 x 50 S grain (obverse side)
- Dia:200 x 50 smooth (reverse side)
- Dia: 200 x 50 smooth-(obverse side)
- Dia:220 x 50-47 straight grain(obverse side)
- Dia:256 x 80-20holes X grain(obverse side)
- Dia:256 x 80-20holes X grain(reverse side)
- Dia:300 x 80-20holes S grain(reverse side)
- Dia:300- x 80-20holes S grain(obverse side)
- Dia:256 x 80-19holes S grain(reverse side)
- Dia:256 x 80-19holes S grain (obverse side)
- Dia:200 x 50-19holes Sgrain
- Dia:230 x 80
| Name of product | D (Diameter, mm) | H (Height, mm) | d1 (Hole diameter, mm) | d2 (Depth, mm) | Keyway |
| Driven wheel | 381 | 127 | |||
| Driven wheel | 312 | 100 | 72 | 17 | |
| Driven wheel | 300 | 100 | 47 | 12 | |
| Driven wheel | 300 | 80 | 52 | 15 | |
| Driven wheel | 300 | 80 | 47 | 14 | |
| Driving wheel | 300 | 80 | 25 | 6*6 | |
| Driving wheel | 300 | 80 | 20 | 6*6 | |
| Driven wheel | 256 | 80 | 52 | 15 | |
| Driven wheel | 256 | 80 | 47 | 14 | |
| Driving wheel | 256 | 80 | 20 | 6*6 | |
| Driving wheel | 256 | 80 | 19 | 6*6 | |
| Driving wheel | 254 | 76 | 204/176 | ||
| Driving wheel | 225 | 64 | |||
| Driving wheel | 230 | 70/80 | 20/25 | 6*6 | |
| Driven wheel | 220 | 50 | 47 | 14 | |
| Driven wheel | 200 | 60 | 47 | 14 | |
| Driven wheel | 200 | 50/55 | 47 | 57/22 | |
| Driven wheel | 200 | 50/55 | 47 | 26/15 | |
| Driving wheel | 200 | 50/52.5 | 19.5 | 6*6 | |
| Driving wheel | 200 | 50 | 22 | 6*6 | |
| Driving wheel | 200 | 50 | 20 | 6*6 | |
| Driving wheel | 200 | 50 | 20 | 5*5 | |
| Driving wheel | 200 | 50 | 19 | 6*6 | |
| Driving wheel | 200 | 50 | 19 | 5*5 | |
| Driven wheel | 175 | 50/55 | 47 | 22/27 | |
| Driving wheel | 175 | 50 | 20 | 5*5 |
Besides the automatic floor scrubber wheel, Yulin has the abilities to manufacture polyurethane tyred wheels for electric forklift truck wheel and automated guided vehicle wheel. Yulin has been a leading polyurethane wheel manufacturer since 1998, offers all kinds of polyurethane tyred wheels with custom service.
