Request a Quote
  • Raw materials Polypropylene, Homo or Copo
  • Film thickness range 0.02-0.15mm
  • Net film width From 1000mm to 4000mm
  • Film structure 1-layer, 3-layer, or 5-layer
Applications

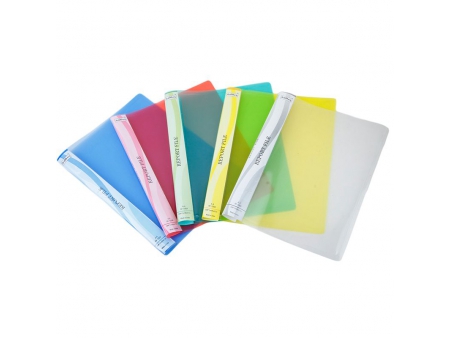

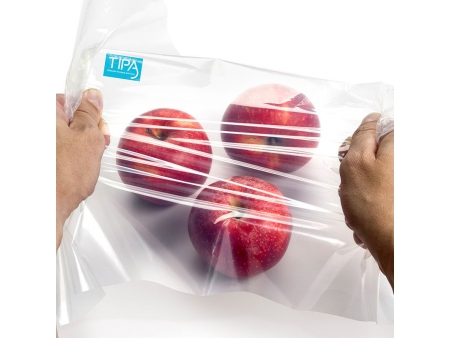

Wide packaging application for processed food and bakery products, cosmetics, pharmaceutical, bakery, confectionery, stationery, apparel, DVD case and flower; lamination grade CPP film used as a heat seal layer along with BOPP or polyester film in a laminate for packing the articles; metalized grade CPP film with co-polymer and homo-polymer to meet the specialized needs for the packaging of various products.

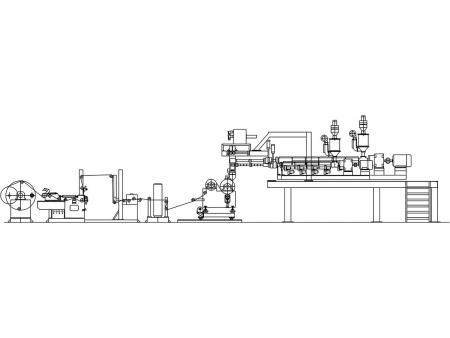

Line Layout
Technical Parameters
Model No.
FMC65/110/65-1600
FMC65/125/65-2000
FMC90/135/90-2500
Screw Dia. 65mm/110mm/65mm 65mm/125mm/ 65mm 90mm/135mm/ 90mm
Die Width 2000mm 2400mm 2900mm
Film Width 1600mm 2000mm 2500mm
Film Thickness 0.02-0.150mm 0.02-0.150mm 0.02-0.150mm
Line Speed 250m/min 250m/min 250m/min

* Remarks: Machine dimensions can be customized upon request.

Overview

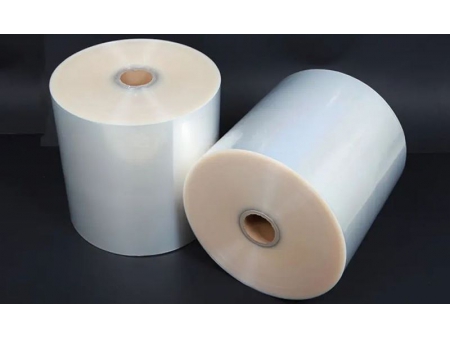

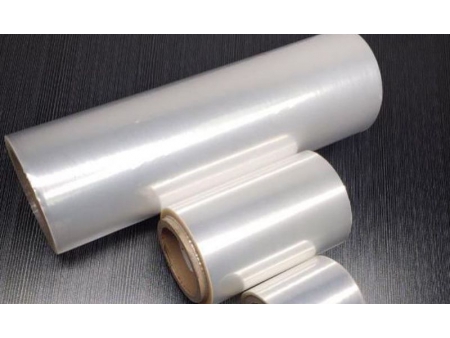

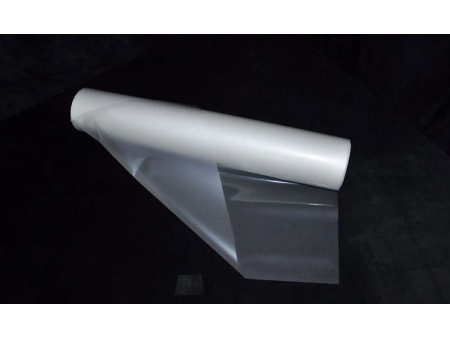

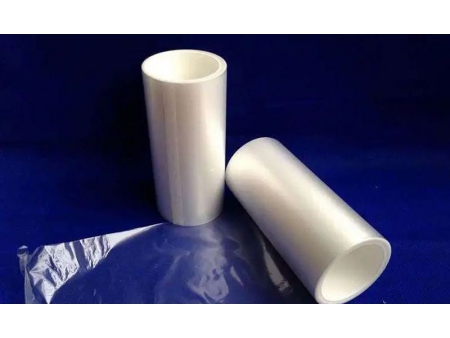

The CPP cast film line is used to produce high-quality cast polypropylene film (CPP film) for a wide range of packaging applications. Equipped with auto thickness controlling system and efficient chill roll, the line produces CPP film of high transparency and very low gauge variation, ideal for laminating and metalizing. The 3-layer or 5-layer CPP film is most welcome in the market.

CPP (Cast Polypropylene Film) is a cost-effective, low density, high-performance transparent cast polypropylene film. CPP films are able to have optical clarity, high gloss, good seal strength, and machinability, and are resistant to tears and punctures. These product features make this polymer film good for the medical, food packaging, and textile industries.

Features
  • Options for up to 5-layers coextruded film structure
  • Option for up to 4000mm film wide
  • Air knife and high performance chill roller
  • Automatic film thickness controlling
  • In-line edge trim and recycling
