Request a Quote

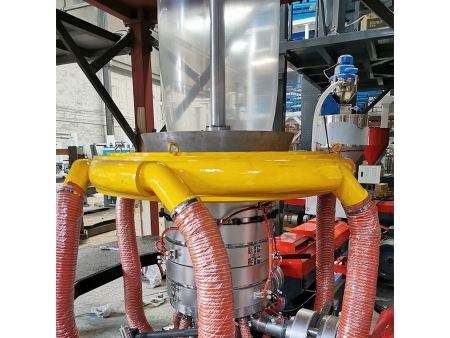

with internal bubble cooling (IBC) and haul off

Video

This three layer blown film machine is designed to produce a continuous 0.02 - 0.15mm-thick packaging film using LDPE, HDPE, LLDPE and MLLPE. It is best suited for the production of food-packaging film, agricultural film, milk-packaging film and meat-packaging film.

These types of films have many advantages, such as temperature retention, protection against moisture, wind, rain, rust, insulation, oxygen resistance, and oil repellence.

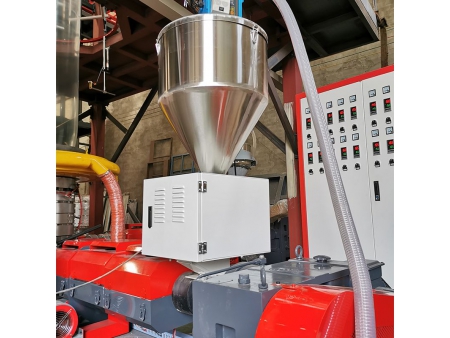

Depending on the desired film quality, different-sized materials can be mixed in each screw.

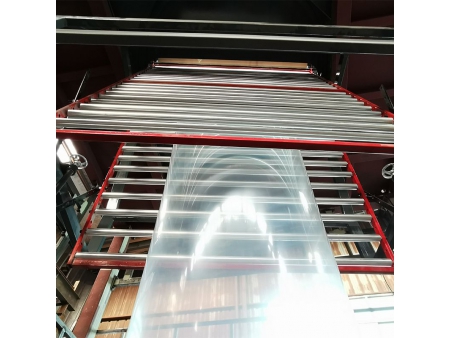

The traction tower is equipped with a haul-off design and integrated brake control (IBC) to optimize film quality and increase output.

Technical Parameters
Model
SJ-50*3/TP1000
SJ-55*3/TP1200
SJ-60*3/TP1500
SJ-70*3/TP2000
Screw diameter (mm) 45/50/45 50 /55/50 55/65/55 65 /70/65
Screw L/D ratio 30:1 30:1 30:1 30:1
Screw speed (r/min) 110 110 110 110
Power of main motor (kW) 11/15/11 15/18.5/15 18.5/30/18.5 30/37/30
Diameter of die (mm) ¢200 ¢300 ¢350 ¢500
Thickness of film (mm) 0.025-0.15 0.025-0.15 0.03-0.15 0.03-0.20
Max. folding width of film (mm) 1000 1200 1500 2000
Max. capacity (kg/h) 150 160 180 200
Total power (kW) 95 100 120 180
Weight (kg) 7500 8000 9000 10500
Dimensions (L*W*H, m) 6.6*2.8*8 6.8*3*8.5 7*3.2*10 8.5*5*10.5
