Double Head Fiber Laser Marking Machine Manufacturer

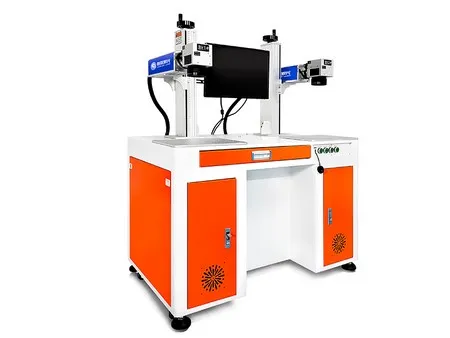

Double Head Fiber Laser Marking Machine

Request a Quote

View All: http://lasermarker-cutter.com/1-3-double-head-fiber-laser-marking-machine.html

The dual-head fiber laser marker is designed for quick processing of both metal and non-metal materials, significantly increasing output. Retaining the advantages of traditional fiber laser markers, this laser marking machine features two lasers working simultaneously, providing a reliable and efficient solution for large-scale production, complex marking tasks, and customized marking requirements. The dual-head configuration allows for faster marking speeds, higher productivity, and greater flexibility to meet various marking needs. With a single equipment investment, you can save on space, labor costs, and overall investment while achieving high precision and accuracy in marking. The laser beams can be adjusted independently or in synchronization to ensure consistent and precise marking results, making it an ideal choice for your production needs.

Marking speed: up to 7000mm/s

Marking depth: 0-2mm

Standard marking scope: 180*180mm

Optional marking scope: 100mm-300mm

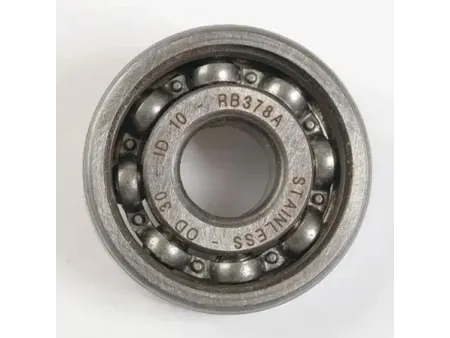

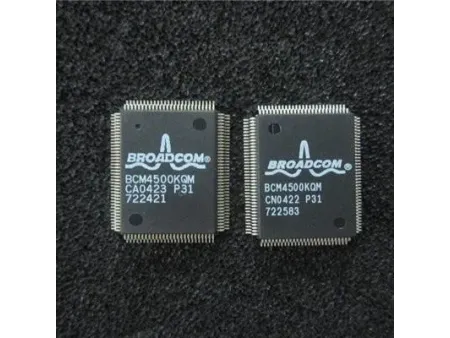

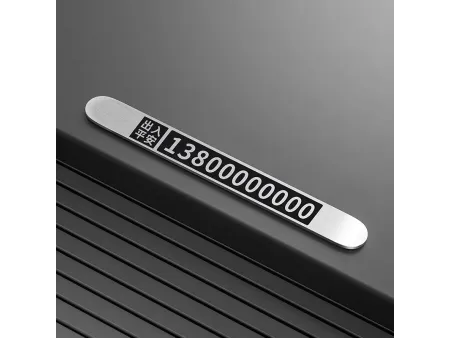

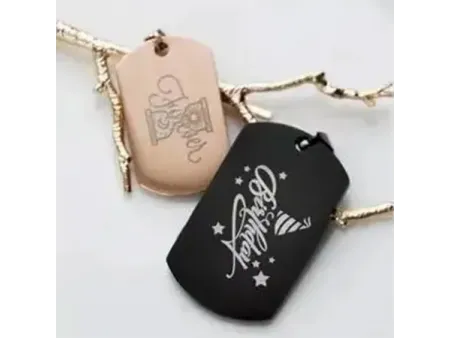

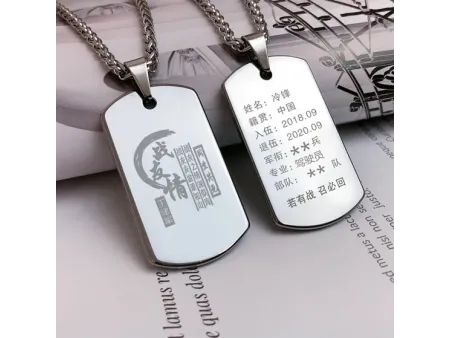

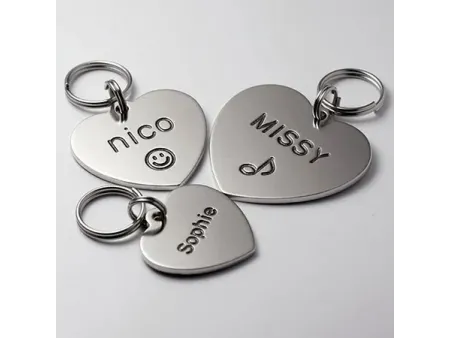

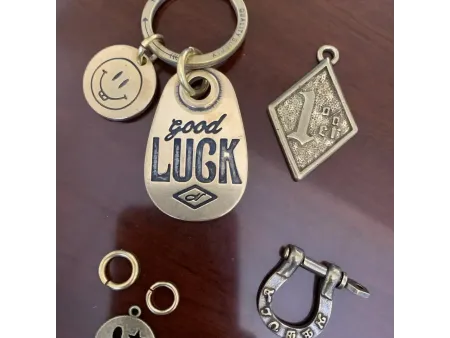

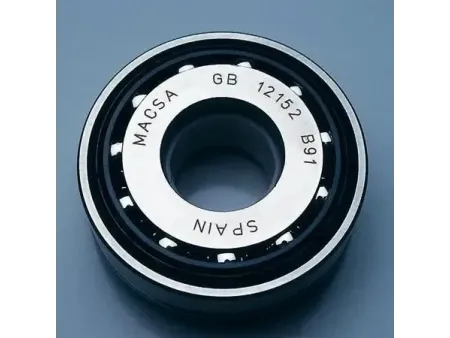

Examples

Features

The dual-head laser marker offers high precision and fast operation. The engraving depth is adjustable, making it suitable for marking and engraving various metal and non-metal products
Operates without any consumables, which keeps processing costs low
Produces clear and durable marks, ensuring long-lasting engraving and cutting results. It is efficient and environmentally friendly, saving energy
Supports multiple file formats including PLT, PCX, DXF, BMP, JPG, and more. It also allows direct use of SHX and TTF fonts
Capable of printing serial numbers, batch numbers, dates, barcodes, QR codes, and automatic sequential numbering
Features powerful drawing and editing capabilities, allowing direct marking of color images and conversion of color images to grayscale for engraving
Commonly used in industries such as manufacturing, automotive, aerospace, jewelry, electronics, promotional products, and signage. Provides efficient and precise marking solutions for a variety of products and materials

Specifications

Model	CC-20W	CC-30W	CC-50W	CC-100W
Laser power	20W	30W	50W	100W
Laser wavelength	1064nm
Q-switch frequency	1-1000kHz
Standard marking scope	180*180mm
Optional marking scope	100mm-300mm (optional)
Min. line width	0.03mm
Min. character size	English: 0.15*0.15mm
Repeat accuracy	±0.005mm
Marking speed	≤7000mm/s
Marking depth	≤1.0mm	≤1.2mm	≤1.5mm	≤2.0mm
Power supply	AC220V 10%, 50Hz, 5Amp
Total power	≤0.6kW		≤0.8kW
Cooling method	Air cooling
Working conditions	Temperature: 1-35℃ Humidity: 5%-80% (non-condensing)

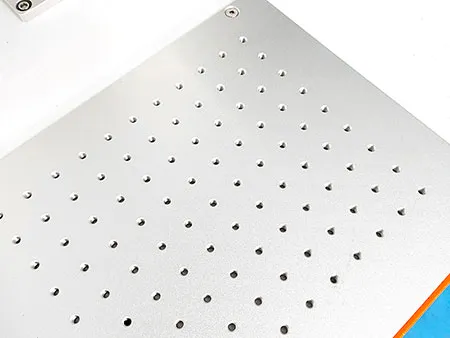

Details
