Request a Quote

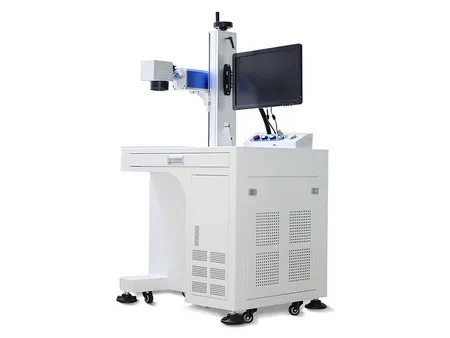

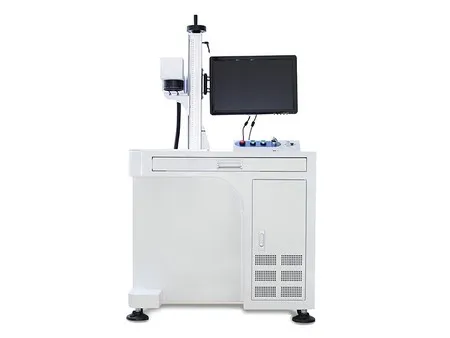

Laser marking and engraving on non-metallic materials is highly efficient with a CO₂ laser marker, which uses infrared light waves.

CO₂ laser marking machines use a 10.64μm gas laser. By charging CO₂ gas into a high-pressure discharge tube, it produces a glow discharge that releases laser energy. This amplified laser beam vaporizes the material surface to achieve engraving. The CO₂ laser marker is perfect for users who need high precision and fast speeds for mass production, labeling, nameplates, and signage.

Marking speed: up to 7000mm/s
Marking depth: ≥0.2mm
Standard marking scope: 180*180mm
Optional marking scope: 100*100mm, 150*150mm, 180*180mm, 220*220mm, 300*300mm
Applications

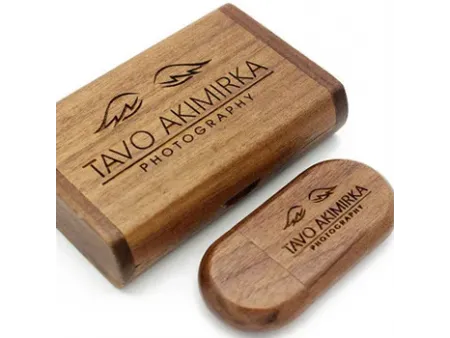

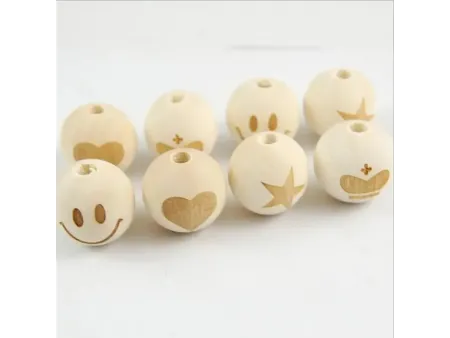

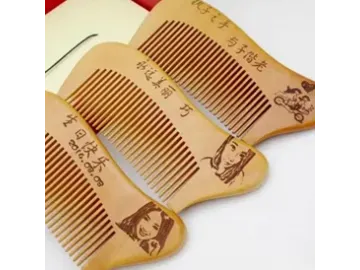

These laser processing machines are widely used for marking non-metallic materials in various industries. They are perfect for food, beverage, and pharmaceutical packaging; architectural ceramics; clothing accessories, leather goods, buttons, and fabric cutting in textiles; artistic gifts and rubber products in crafts; marking electronic components and nameplates in electronics; marking on paper, wooden items, and plastic in paper and wood products; engraving on acrylic and organic glass; and marking on fabrics, bamboo, crystal, jade, ceramics, glass, fruits, and artificial stones.

Features

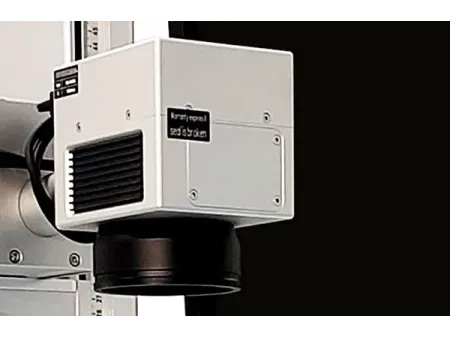

  • Our CO₂ laser marker uses a radio frequency (RF) metal tube, capable of continuous operation for 24 hours and boasting a lifespan of over 20,000 hours

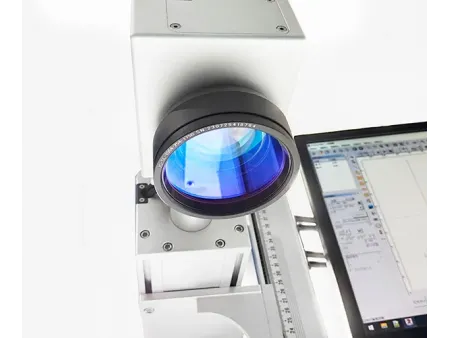

  • Equipped with a high-speed scanning galvanometer and beam expansion focusing system from Germany, ensuring fast and precise marking

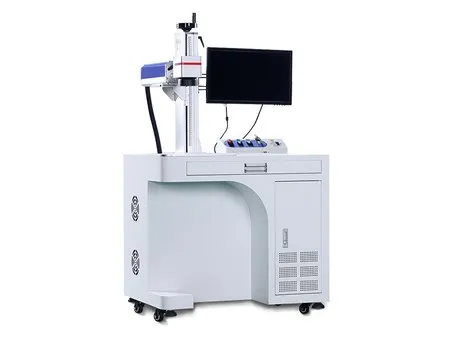

  • The rugged and sturdy cabinet design of our CO₂ laser marker can withstand harsh industrial environments
  • We offer design adjustments to meet specific marking needs, providing tailored solutions for our customers

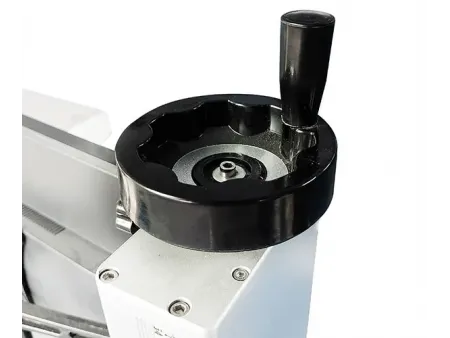

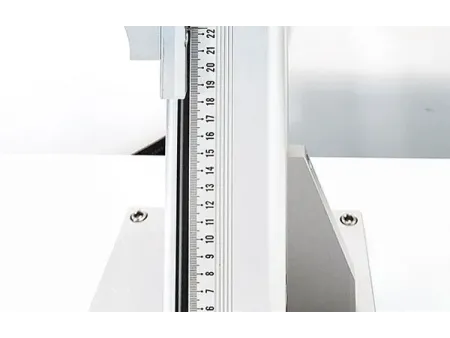

  • The CO₂ laser marker features adjustable elevation, easy usability, and interchangeable lenses for different marking areas, offering high cost-efficiency
  • Suitable for marking and engraving organic materials such as wood, certain plastics, and ceramics
  • Our laser engravers use an air-cooling system instead of a water-cooling system, requiring no maintenance or consumables
  • Provides high-contrast, fast engraving with low power requirements, making it suitable for processing coated metals
  • Simple to operate with a comprehensive exhaust system that ensures a safe and environmentally friendly working environment
Specifications
Model CC-CO₂-30W CC-COz-50W CC-CO₂-100W
Laser power 30W 50W 100W
Laser wavelength 9.3μm-10.6μm
Beam quality M²< 1.6
Q-switch frequency 1-50kHz
Standard marking scope 180*180mm
Optional marking scope 100*100mm, 150*150mm, 180*180mm, 220*220mm, 300*300mm
Min. line width 0.1mm
Min. character size English: 0.2*0.2mm
Repeat accuracy ±0.001m
Marking speed ≤7000m/s
Marking depth ≥0.2mm
Power supply AC220V±10%, 50Hz, 10A
Total power ≤0.8kW ≤1.5kW ≤3.0kW
Cooling method Water cooling
Working conditions Temperature: 1-35℃
Humidity: 5%-80% (non-condensing)
Applicable Materials

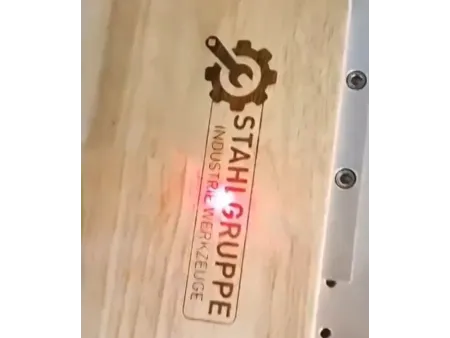

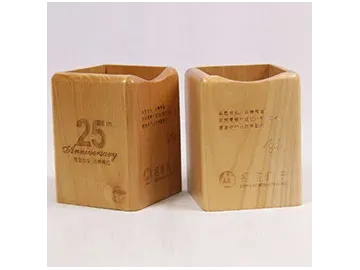

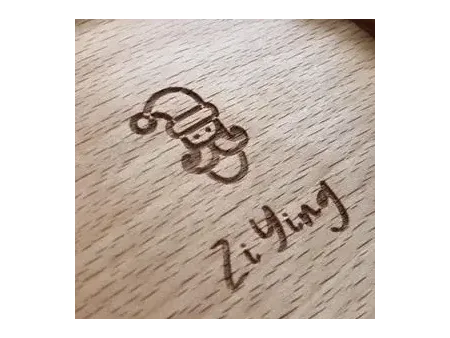

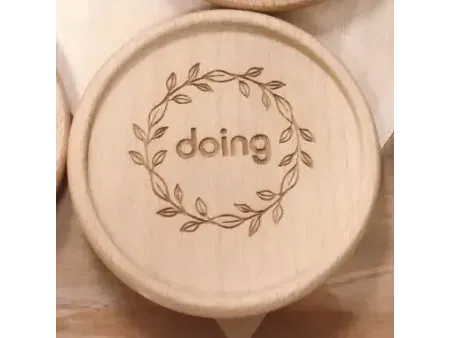

CO₂ laser marking machines can be used to mark and engrave various non-metallic materials, such as wood, paper, leather, fabrics, acrylic, epoxy resin, and unsaturated polyester resin.

FAQs

Chunchen laser tubes are of high quality and, with proper care and maintenance, typically have an expected lifespan of around 10,000 hours.

Regular cleaning is a crucial part of maintaining a CO₂ laser marking machine. First, clean the laser marking head regularly, as it can accumulate dust and dirt during operation, which can affect the engraving quality.
