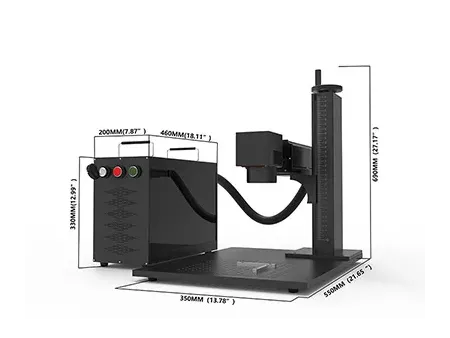

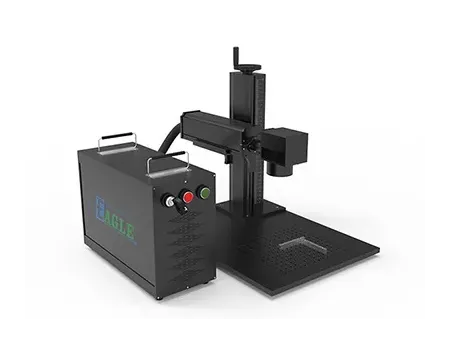

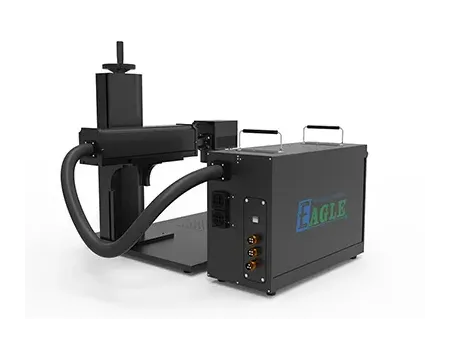

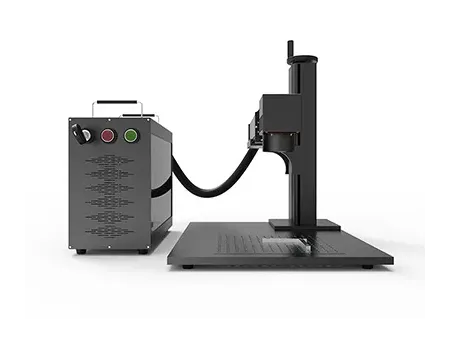

Split Fiber Laser Marking Machine
Split fiber laser marking machine is our most compact fiber laser marking machine, offering a low-cost yet high-quality solution for businesses transitioning from traditional engraving, etching, and surface marking methods to laser technology. It is designed primarily for marking metals, engineering plastics, and other materials, delivering exceptional performance with an energy consumption of just a few hundred watts, lower than most household appliances. This makes it not only cost-effective but also environmentally friendly, proving to be an ideal choice for businesses looking to reduce their carbon footprint.
- Key Parameters
- Working Area: 4×4inch / 7×7inch
- Laser Power: 30W
- Machine weight: 50kg
-
- Metal marking
-
- Metal marking
-
- Metal marking
-
- Metal marking
-
- Plastic marking
- This versatile laser marking machine can handle a wide range of materials, including:
- Common metals and alloys: iron, copper, aluminum, magnesium, zinc, etc.
- Rare metal alloys: gold, silver, titanium, etc.
- Metal oxides: various metal oxides
- Special surface treatments: anodized aluminum, electroplated surfaces
- ABS (acrylonitrile butadiene styrene) materials: used in electronic housings and daily items
- Inks: transparent buttons, printed products
- Epoxy resins: encapsulation of electronic components, insulation layers
-
- Graphic marking
-
- QR code marking
-
- Barcode marking
This machine excels in various marking techniques, including deep engraving, etching, color change, or surface marking. It can easily mark graphics, text, logos, barcodes, and more, making it an ideal solution for diverse applications.
| Model | F2-MOPA |
| Laser Source | Fiber laser |
| Laser Power | 30W |
| Laser Wavelength | 1064 nm |
| Working Area | 4×4inch / 7×7inch |
| Beam Diameter | 7±0.5mm |
| Marking Speed | ≤5000mm/s |
| Min. Line Width | 0.03mm |
| Min. Character | 0.3mm (depending on materials) |
| Marking Depth | ≤0.5mm (adjustable based on materials) |
| Repeat Accuracy | ±0.002 |
| Power Supply | Optional: AC220V/50Hz or 60Hz |
| Temperature/ Humidity | 0~35℃/10~95% |
| Power Consumption | ≤800W |
| Cooling Method | Air cooling |
The above parameters are based on laboratory testing and may vary under actual operating conditions

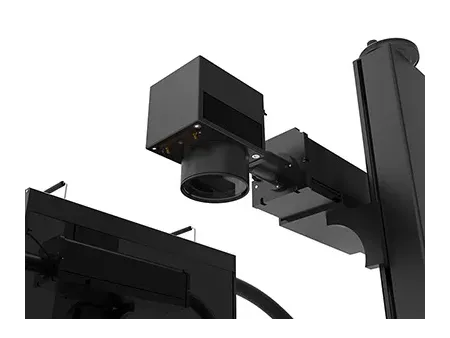

- High-precision marking: The galvo scanner head features an intricately designed optical and mechanical system. By precisely controlling the amplitude and frequency of the galvo mirrors, as well as the focal position and spot size of the laser beam, it achieves high-definition and highly accurate marking.
- High-speed scanning: With exceptionally fast scanning capabilities, this system can complete large-area scans in a short amount of time, significantly boosting production efficiency.
- Strong anti-interference ability: The galvo scanner head is equipped to effectively suppress external interference signals that could impact marking precision. It maintains high accuracy even under harsh environmental conditions, such as in factory workshops or outdoor settings.
The JPT M7 series of laser marking machine utilizes a high-power fiber laser with a MOPA (master oscillator power amplifier) configuration, where a directly modulated semiconductor laser serves as the seed source. Compared to Q-switched fiber lasers, The independent control over pulse frequency and pulse width allows MOPA fiber lasers to mark a variety of materials, including metals, plastics, and ceramics, with high precision. This flexibility allows for constant high peak power output and makes the laser suitable for a wider range of marking substrates.
Split fiber laser marking machine utilizes powerful marking software, such as EZCAD, and is compatible with files from popular design programs like Coreldraw, AutoCAD, and Photoshop. It supports a wide range of file formats including PLT, PCX, DXF, and BMP, and allows the direct use of SHX and TTF fonts. The software is capable of marking various graphics, text, logos, barcodes, and QR codes. Additionally, it offers comprehensive features for design, editing, importing, and exporting, making it a versatile tool for all your marking needs.
Yes, the 30W fiber laser system can mark on curved surfaces, 3D curves, and even perform 360-degree rotational marking when equipped with a rotary axis attachment.
Yes, operating a MOPA laser marking machine is safe as long as you receive proper training and follow the provided safety guidelines. Always wear protective eyewear when using the laser marking machine.
Yes, our laser marking machines are equipped with comprehensive safety features and comply with local safety standards and regulations.
