Inconel 625 Nickel Alloy

Inconel 625 Nickel Alloy
Inconel 625 Nickel Alloy
Inconel 625 Nickel Alloy
Inconel 625 Nickel Alloy
Request a Quote
  • N06625
  • 2.4856
Nickel AlloyInconel 625
Mechanical Properties
Tensile Strength
760 (σb/MPa)
Yield Strength
345 (σp0.2/MPa)
Elongation
30 (σ5/%)
Product Forms and Standards
Bar
ASTM B446
Forging
ASTM B564
Sheet/Strip
ASTM B443
Wire
ASTM B446
Pipe
ASTM B444, ASTM B704, ASTM B705
Welding Wire
AWS A5.14 ERNiCrMo-3

The Inconel 625 nickel alloy is a solid solution strengthening high temperature alloy with an addition of molybdenum and niobium that can stiffen the alloy’s matrix and thereby provide high strength.

With excellent resistance to corrosion and oxidation, Inconel alloy 625 can be perfectly used for superheat and severely corrosive environments. In addition to this, the high temperature alloy shows outstanding tensile and thermal-fatigue strength in the service temperatures ranging from cryogenic to 980℃, and good resistance to stress corrosion cracking in salt atmosphere.

Since these properties, our Inconel 625 nickel alloy earns wide acceptance in organic chemistry processing field where acid chloride catalyst is typically utilized, and can be used for digester and bleacher in paper industry.

Stock and Supply of Various Inconel 625 Nickel Alloy

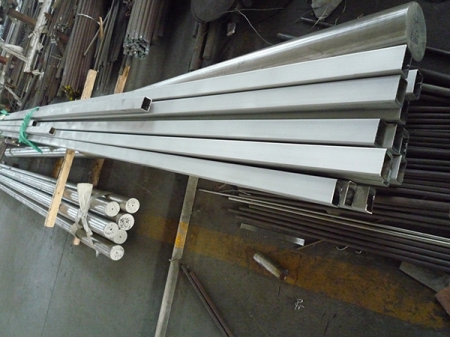

Common forms include tube, wire, bar, plate, etc.

  • Nickel Alloy Wire
  • Nickel Alloy Profiles

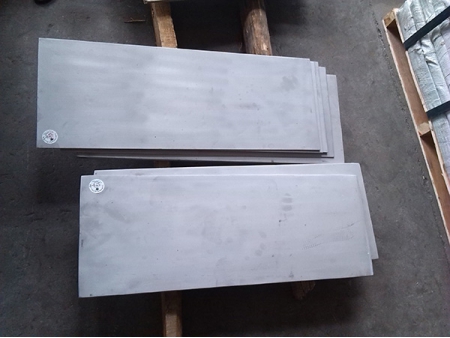

  • Nickel Alloy Sheet & Plate

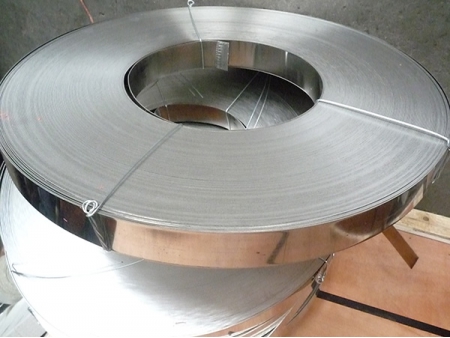

  • Nickel Alloy Coil
Chemical Compositions
Ni Bal. Cr 20.00%- 23.00% Mo 8.00%- 10.00% Nb 3.15%- 4.15% Fe 5.00% Max. Al 0.40% Max. Ti 0.40% Max.
C 0.10% Max. Mn 0.50% Max. Si 0.50% Max. Co 1.00% Max. P 0.015% Max. S 0.015% Max.
