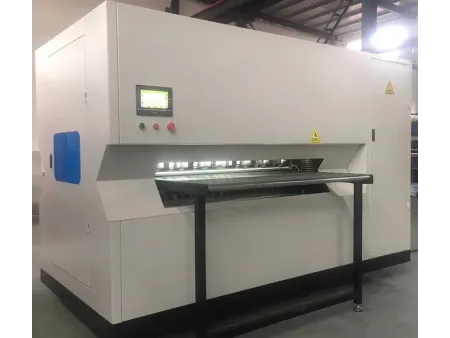

Precision Leveler

Request a Quote

View All: http://metalworking-machine.com/4-precision-leveler.html

Corrective leveling machine for straightening metal sheets and parts

Roll diameter: 30-60mm
Leveling thickness: 3-10mm
Leveling width: 50-1000mm

A precision leveler is a machine used in metalworking to flatten or straighten metal sheets or coils with high precision. It works by passing the material through a series of rollers or leveling heads that apply pressure to specific areas, adjusting the curvature of the metal to achieve a flat or uniform surface. The process continues until the desired level of flatness or straightness is achieved.

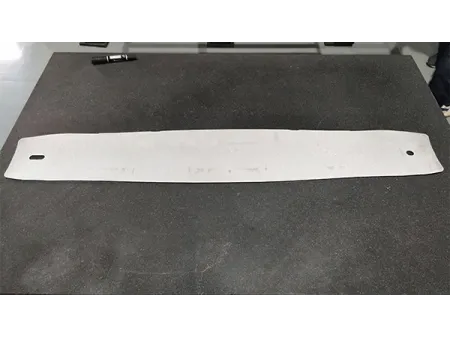

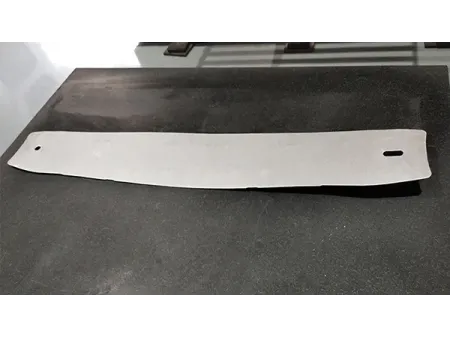

Automotive high-strength steel sheet

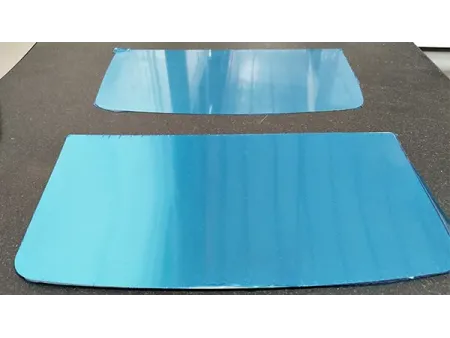

Laminated steel sheets for medical use

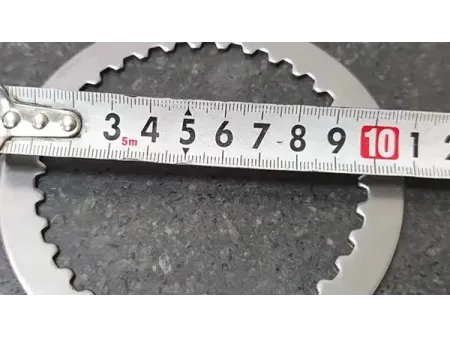

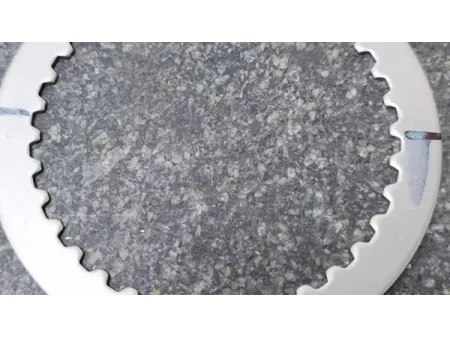

Break pad

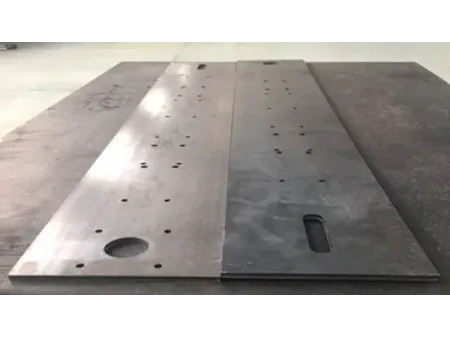

Punch sets

Features
Specifications
Components

Features

Dual Roller Drive: Features a servo motor coupled with a high-precision gearbox, ensuring smooth and stable operation of the leveling rollers.

CNC Closed-Loop Control
Utilizes a full CNC system with real-time feedback via displacement sensors to maintain constant gap accuracy between rollers.

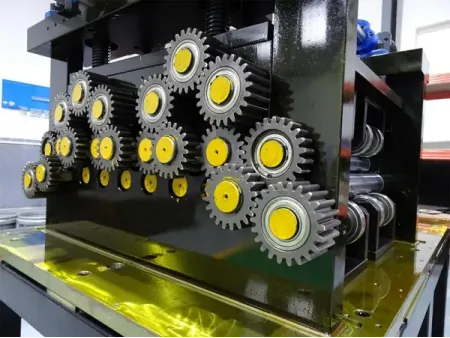

Enhanced Gear System
The gears are optimally designed for even distribution of power to the rollers, featuring fine grinding and heat treatment for reduced noise and increased durability.

Robust Roller Construction
Includes 23 high-strength alloy steel rollers, each hardened to enhance mechanical properties and extend operational life.

Advanced Roller Pitch Technology
Employs an unequal roller pitch arrangement to optimize stress relief during the leveling process.

Individual Roller Drive
Each roller is driven independently by a cardan shaft, providing precise control and enhanced performance.

Superior Bearing System
Rollers are supported by needle bearings, sealed to prevent contamination and designed for extended maintenance intervals.

Applications

Designed for high-precision flattening, this leveler excels with a range of materials including aluminum, stainless steel, carbon steel, and copper plates. It is especially effective in applications requiring precise flatness such as automotive parts, aerospace structures, high-speed rail components, and metal furniture and electrical enclosures.

Specifications

Precision Leveling Machine (30mm Roll Diameter)

Model	30-300-21	30-500-21	30-800-21	30-1000-2 1
Roll diameter	Ø30mm	Ø30mm	Ø30mm	Ø30mm
Quantity of rolls	21	21	21	21
Rated leveling width	300mm	500mm	800mm	1000mm
Rated plate thickness	0.5-2mm	0.5-2mm	0.5-2mm	0.5-2mm
Max. plate thickness	3mm	3mm	3mm	3mm
Leveling accuracy	H	H	H	H

Precision Leveling Machine (40mm Roll Diameter)

Model	40-300-21	40-500-21	40-800-21	40-1000-2 1
Roll diameter	Ø40mm	Ø40mm	Ø40mm	Ø40mm
Quantity of rolls	21	21	21	21
Rated leveling width	300mm	500mm	800mm	1000mm
Rated plate thickness	0.5-3mm	0.5-3mm	0.5-3mm	0.5-3mm
Max. plate thickness	5mm	5mm	5mm	5mm
Leveling accuracy	H	H	H	H

Precision Leveling Machine (50mm Roll Diameter)

Model	50-300-21	50-500-21	50-800-21	50-1000-2 1
Roll diameter	Ø50mm	Ø50mm	Ø50mm	Ø50mm
Quantity of rolls	21	21	21	21
Rated leveling width	300mm	500mm	800mm	1000mm
Rated plate thickness	0.5-4mm	0.5-4mm	0.5-4mm	0.5-4mm
Max. plate thickness	8mm	8mm	8mm	8mm
Leveling accuracy	H	H	H	H

Precision Leveling Machine (60mm Roll Diameter)

Model	60-300-21	60-500-21	60-800-21	60-1000-2 1
Roll diameter	Ø60mm	Ø60mm	Ø60mm	Ø60mm
Quantity of rolls	21	21	21	21
Rated leveling width	300mm	500mm	800mm	1000mm
Rated plate thickness	1-6mm	1-6mm	1-6mm	1-6mm
Max. plate thickness	10mm	10mm	10mm	10mm
Leveling accuracy	H	H	H	H

Components

Configurations

CNC controller: Delta (Taiwan)

Servo motor: Mitsubishi (Japan)

Servo drive: Mitsubishi (Japan)

Inverter: Mitsubishi (Japan)

Angle displacement sensor: Miran (China)

Low-voltage electrical components: Schneider (France)

Why precision levelers are needed in the sheet-metalworking industry

Automotive high-strength steel sheet

Laminated steel sheets for medical use

Break pad

Punch sets

Shape Correction
Precision levelers address deformations in sheet metal caused by manufacturing, transportation, or usage, restoring them to their original design specifications.
Ensuring Compliance with Precision Standards
In sectors like automotive and aerospace, where stringent flatness standards are critical, precision levelers ensure that metal workpieces meet these exacting requirements.
Process Integration
These machines facilitate the adjustment of metal workpieces to specific shapes required for further processing, enhancing overall manufacturing quality and consistency.
Deformation Rectification
Precision levelers repair deformations resulting from welding, heating, or other industrial processes, ensuring the workpiece complies with technical standards.
Aesthetic Enhancement
By improving the surface finish, precision levelers enhance the visual and professional appeal of metal products.

Key Components

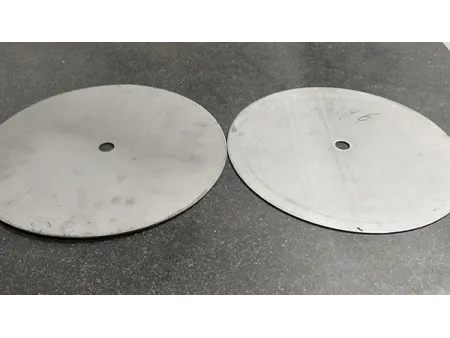

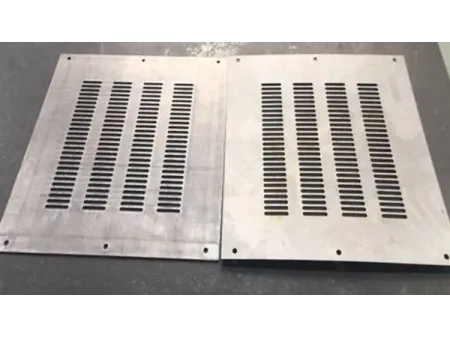

Recommended applications
