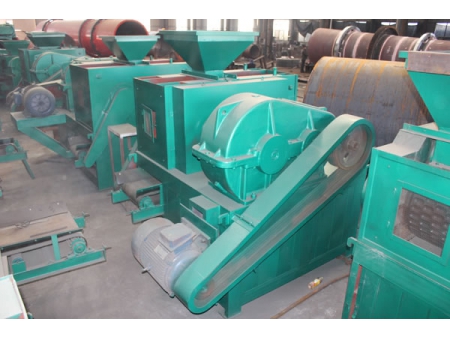

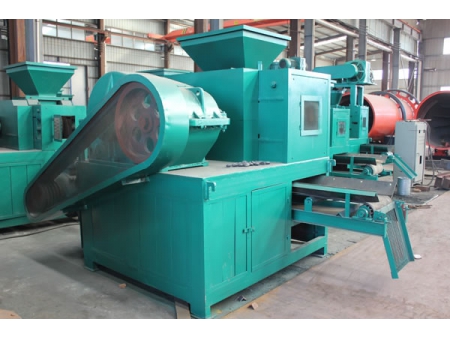

Steel Slag Briquetting Machine
The steel slag briquetting machine is a trustworthy industrial waste processing equipment designed for handling large volumes of steel powder and slag produced in steel making, with the purpose of making full use of these wastes and creating more value. The steel powder briquette machine can compress the steel powder and steel slag by high pressure rollers to form steel briquettes with different shapes for further utilization, thereby taking full advantages of steel resources as well as saving large amount of energy consumption and economic cost.
- Briquettes Shape and Size Defined by users
The finished briquettes produced by this briquetting equipment are available in various shapes, including oval, egg-like, pillow-like, and square shape, etc. In addition, the steel slag briquetting machine can produce steel briquette with specific shape according to the specific demands of customer. This industrial steel slag processing machine has found wide application in coal industry, metallurgy industry, chemical industry, etc.
For instance, steel plant can use this equipment to further process the steel powder and slag to make steel. Mill scale can also be compressed in the briquette machine to form a ball-like product which can be used as the main material of ferrosilicon manufacturing. In addition, compressed fluorite powder can be applied as cosolvent in steeling making.
| Model | Roll Diameter(mm) | Capacity(t/h) | Power(kw) | Briquettes Shape and Size |
| 290 | 1-3 | 5.5 | Defined by users | |
| 360 | 4-6 | 11-15 | Defined by users | |
| 430 | 6-8 | 18.5 | Defined by users | |
| 500 | 8-12 | 18.5-55 | Defined by users | |
| 500 | 8-12 | 18.5-55 | Defined by users | |
| 650 | 10-15 | 37-45 | Defined by users | |
| 650 | 10-15 | 37-45 | Defined by users | |
| 750 | 15-20 | 75-110 | Defined by users | |
| 750 | 15-20 | 75-110 | Defined by users | |
| 850 | 20-25 | 90-110 | Defined by users | |
| 850 | 20-25 | 90-110 | Defined by users | |
| 1000 | 25-35 | 90-132 | Defined by users | |
| 1000 | 25-35 | 90-132 | Defined by users |
Note: Above technical parameters are for reference and can be separately designed according to customer's actual situation. In addition, above briquetting machines can be separately equipped with hydraulic system.
