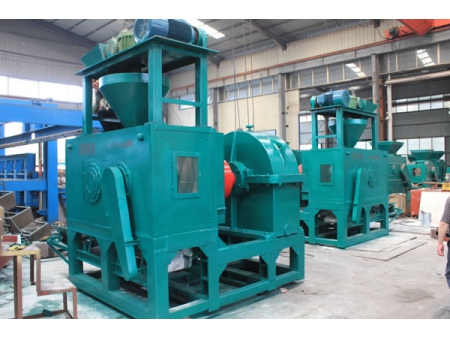

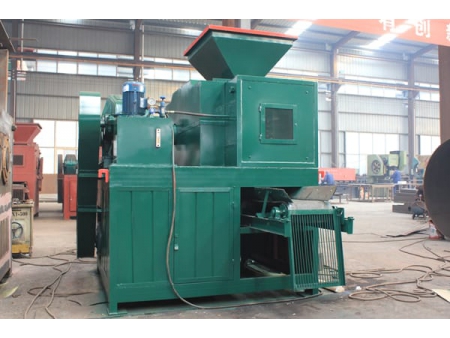

Hydraulic Briquetting Machine
YUKE hydraulic briquetting machine is equipped with hydraulic system which makes it different from common briquette machine. Thanks to the hydraulic device, the pressure for compressing raw materials can keep constant. In addition, when bigger or harder materials enter into rollers, the hydraulic system will work to protect the roller and ensure higher briquetting efficiency.
- Size of the Ball(mm) 38×25×13

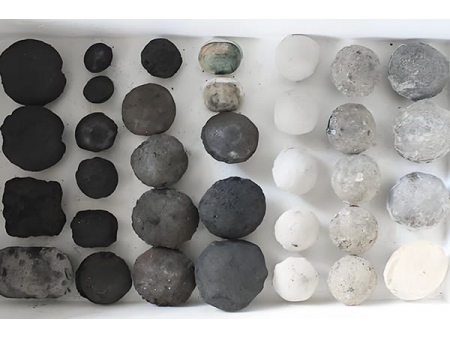

The hydraulic briquette machinery is widely used in various industries, including metallurgy, chemical, refractory material, energy, transportation and heat supply industry, etc. for compressing all kinds of mineral powders and chemical powders. To be specific, this hydraulic briquette making machine has been highly recognized by some enterprises such as briquette plant, steel plant, power plant, chemical plant, cement plant, etc. The hydraulic briquetting machine can form materials into wide variety of shapes, and specifically shaped briquette can be customized if required.
| Model | Roll Diameter(mm) | Capacity(t/h) | Power of Oil Pump(kw) | Power(kw) | Briquettes Shape and Size |
| 290 | 1-3 | 1.1 | 5.5 | Defined by users | |
| 360 | 4-6 | 1.1 | 11-15 | Defined by users | |
| 430 | 6-8 | 1.1 | 15-18.5 | Defined by users | |
| 500 | 8-12 | 1.5 | 18.5-55 | Defined by users | |
| 650 | 10-15 | 1.5 | 37-45 | Defined by users | |
| 750 | 15-20 | 1.5 | 75-110 | Defined by users | |
| 850 | 20-25 | 2.2 | 90-110 | Defined by users | |
| 1000 | 25-35 | 2.2 | 90-132 | Defined by users |
- 1. Materials
- 2. Conveyer
- 3. Mixer/Silo
- 4. Rotary Dryer
- 5. Dosing Machine
- 6. Mixer
- 7. Binder Mixer
- 8. Add Density Machine/wheel Mill
- 9. Rated Silo
- 10. Briquette Machine
- 11. Chain Plate/mesh Belt Dryer
- 12. Vertical Dryer
Notes: This flow chart can be also designed based on customers'actual demand.
