Thermoforming Molds for Single Station Plastic Thermoforming Machine

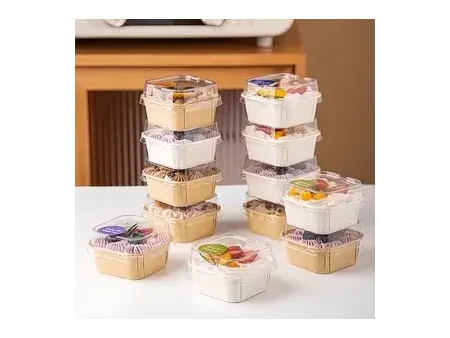

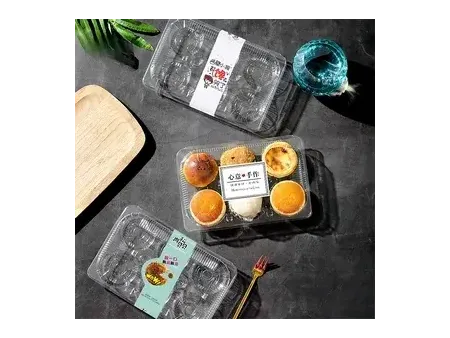

Thermoforming molds are designed for single-station plastic thermoforming machine, using laser blade cutting for easy replacement and delivering precise forming and punching for tray and container and lid production.
-
- 1
The mould comprises three sections: The cavity is crafted from premium mould aluminium, the cutting blade from Cr12MoV steel, and the mounting plate from high-grade iron plate. The complete mould assembly weighs approximately 100-150 kilograms.
-
- 2
Mould layout is engineered based on customer-supplied samples, with production commencing only after customer approval and signature.
-
- 3
Material utilisation rates: 85-95% for square products; 66-78% for circular or irregularly shaped products.
-
- 4
Clearance between cavities: 6-8mm
Side allowances: 7.5-10mm -
- 5
Die maintenance frequency: After 1.5-2 million cutting cycles, the die should be re-sharpened.
