Thermoforming machine for making plastic cups

Elevate your cup production with the plastic cup thermoforming machine. Controlled by a micro PLC and featuring an intuitive human-machine interface (HMI), the plastic cup thermoforming machine integrates feeding, heating, stretching, forming, cutting, and conveying into one seamless operation. It's engineered to produce various types of plastic cups including tea cups, milk cups, U-shaped cups, water cups, jelly cups, printed cups, and cold drink cups. It also handles plates and flat lids with ease.

Applicable Materials

PP, PS, PET, PLA

Applications

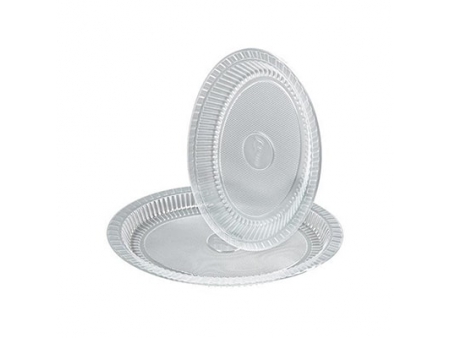

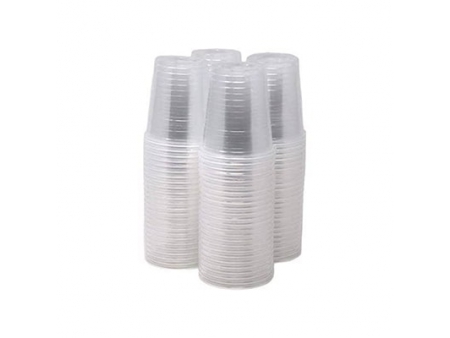

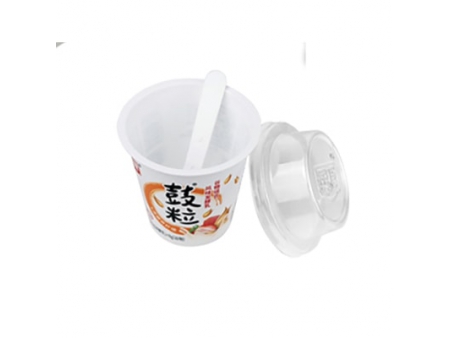

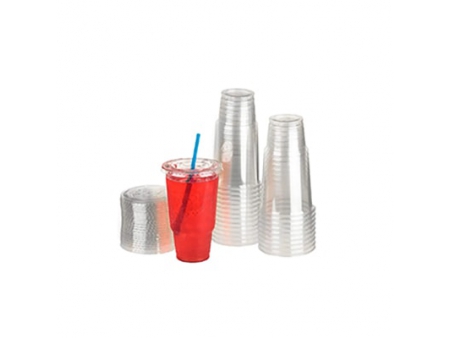

Ideal for producing various plastic items such as tea cups, milk cups, U-shaped cups, water cups, jelly cups, printed cups, cold drink cups, plates, flat lids, and similar products.

Specifications
Power supply 380V/50HZ
Applicable material PP/PS/PET/PVC plastic thermoforming sheet
Drive method Hydraulic drive
Forming area (L×W) 750×420 mm
Sheet thickness 0.20-2.0mm
Max. forming depth ≦220mm
Production capacity 15-35 cycle/min
Air pressure 0.6-0.8MPa
Air consumption 2400L/min
Machine dimensions (L×W×H) 4000×1600×2500mm
Total power ≤160kW
Weight 6500kg
Details

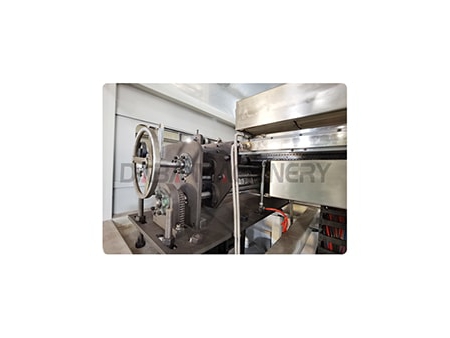

  • Feeding

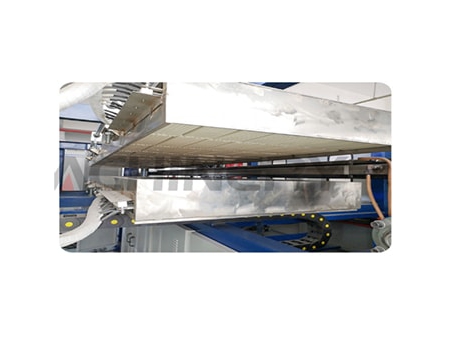

  • Heating

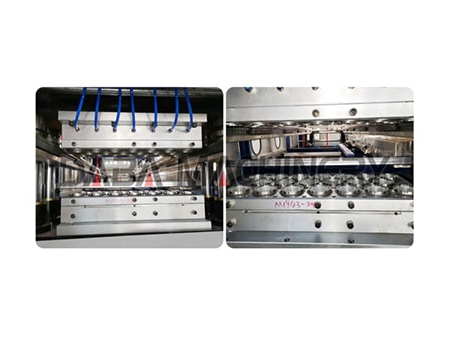

  • Forming
