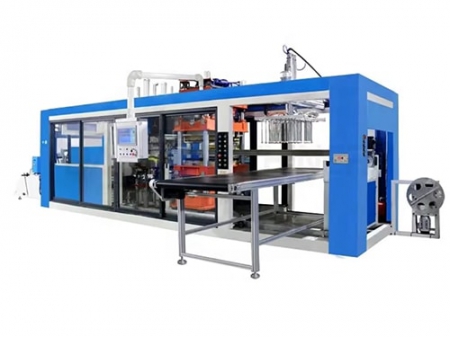

Multi-Station Plastic Thermoforming Machine, DB-7285

Multi-Station Plastic Thermoforming Machine, DB-7285
Multi-Station Plastic Thermoforming Machine, DB-7285
Multi-Station Plastic Thermoforming Machine, DB-7285
Multi-Station Plastic Thermoforming Machine, DB-7285
Multi-Station Plastic Thermoforming Machine, DB-7285
Multi-Station Plastic Thermoforming Machine, DB-7285
Multi-Station Plastic Thermoforming Machine, DB-7285
Multi-Station Plastic Thermoforming Machine, DB-7285
Multi-Station Plastic Thermoforming Machine, DB-7285
Request a Quote

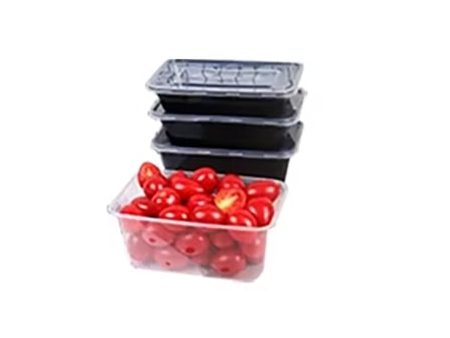

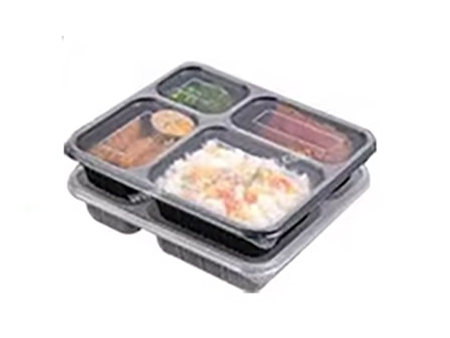

Thermoforming machine for making plastic packaging containers

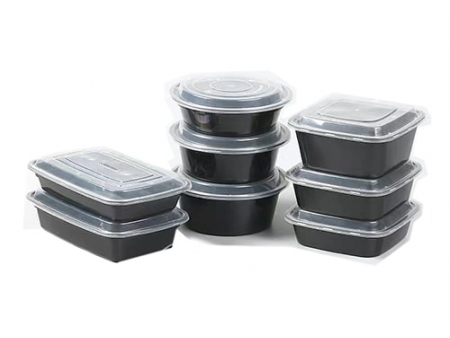

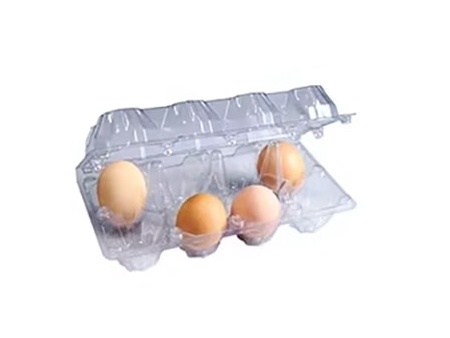

The multi-station plastic thermoforming machine is built to make your packaging production faster and more efficient. It works with HIPS, PS, PP PE, PVC, and PET, so you can easily create boxes, trays, lids, and more. With its multi-station setup, you’ll get forming, cutting, and stacking done all at once, saving you time while keeping output precise and consistent.

Take your packaging to the next level with this powerful thermoforming machine. Reach out today to see how it fits your production needs!

Specifications
Max. forming area 720×850mm
Applicable material HIPS, PS, PP PE, PVC, PET
Sheet thickness 0.2-1.8mm
Forming depth 0-80mm (female mould)
0-150mm (male mould)
Production capacity 10-20 cycle/min
Forming times 1 or 2 times (free to install)
Power consumption 25-40kW/hour
Vacuum pump power 4.0kW
Servo motor 4.5/5.5/7.5kW
Power supply 380V 50Hz
Air consumption 6.5kg/cm³ (1000-1500 L/min)
Dimensions (L×W×H) 11000×2850×2660mm
Weight 9500kg
Features
  • The entire production process is controlled by PLC for consistent and reliable operation.
  • Uses a vertical cylinder design for rapid sheet pulling, shortening cycle times, saving energy, and ensuring excellent forming quality.
  • Equipped with infrared ceramic heating bricks, each featuring individual temperature controls, reducing energy consumption by more than 50% compared to traditional heaters.
  • Enclosed heating chamber provides uniform heat distribution and minimizes heat loss. A manual switch allows easy vertical adjustment, improving operational control.
  • Includes air cooling, water cooling, and high-speed cold water spray systems to accelerate forming speed and maintain consistent product quality.
  • Compatible with simple molds, significantly lowering mold costs.
  • Female mold forming process is straightforward, easy to operate, and ensures precise control.
