Batt Feeder

Request a Quote

View All: http://snk-nonwovenmachine.com/1-4-1-feeding-machine.html

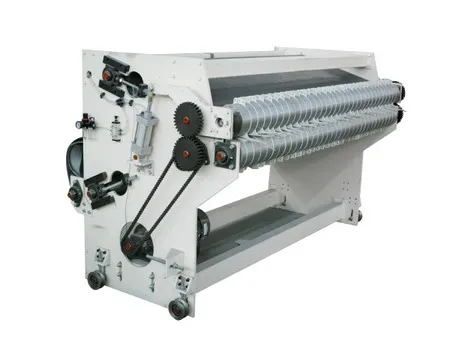

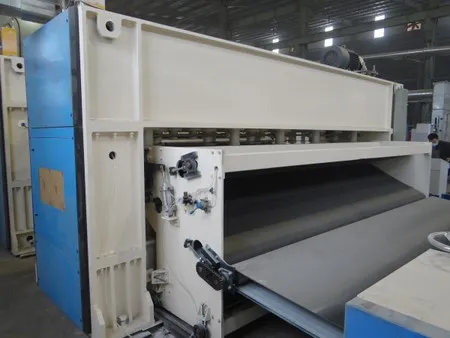

Web feeding system working with needle punching machine

The feeding machine, also known as a CBF feeder, is an essential nonwoven equipment used in conjunction with a needle punching machine during nonwoven production. Its primary function is to ensure that the loose fiber web enters the needling zone of the needle punching machine smoothly, thereby preventing the fiber web from being excessively stretched or slid.

Production width	2000mm-9000mm
Feeding speed	≤10m/min
Available fiber web	≤4000gsm

Functions

Feeding machine smoothly feeds the loose fiber web into the needling zone of the needle punching machine, playing a crucial role in nonwoven manufacturing processes.

Features

Feeding machine features variable frequency speed control for feeding.
The movable base facilitates cleaning and maintenance.
Adjustable clamping conveyor is suitable for the production of high GSM products.
