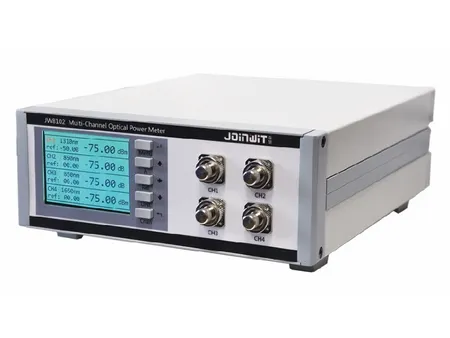

JW8102/JW8102NS 4 Channel Optical Power Meter

JW8102/JW8102NS

Benchtop optical power meter for measuring intensity of optical signals

This optical power meter features both RS232-C and RS485 communication interfaces, designed to support both simplified and standard commands. The simplified commands significantly improve communication reliability with PCBs. The power meter also supports secondary development, allowing users to customize its functionality based on specific application requirements. With detachable external optical power meter probes, it caters to the needs of optical device manufacturers, research institutions, and universities.

Features

Configurable 1 to 4 optical power meter channels
Comes with five types of adapter connector options

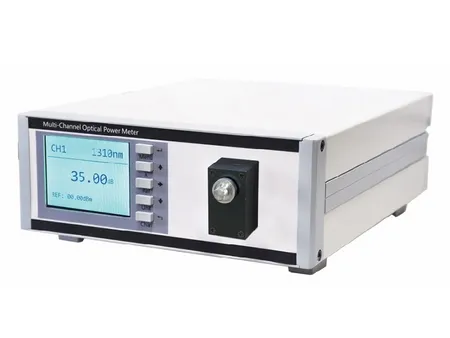

Optical power meter can be configured as either an external probe or a panel-mounted unit

Specifications

JW8102
Benchtop Optical Power Meter

JW8102NS
Benchtop Optical Power Meter (High Power Version)

Model	JW8102	JW8102NS
Wavelength Range	850 to 1700nm, 400 to 1100nm
Detector Type	InGaAs/Si
Detector Size	Ø2.0mm
Measurement Range	5 to -75dBm	35 to -50dBm
Linearity	±0.04dB ( 5 to -50dBm) ±0.08dB (-50 to -60dBm)
Uncertainty	±3%
Measurement Unit	dBm/W
Display Resolution	0.1/0.01/0.001dB
Operating Temperature	-5 to 40℃
Storage Temperature	25 to 70℃
Power Supply	AC 220V 50Hz
Weight	< 5kg
Dimensions	2U×235×300mm

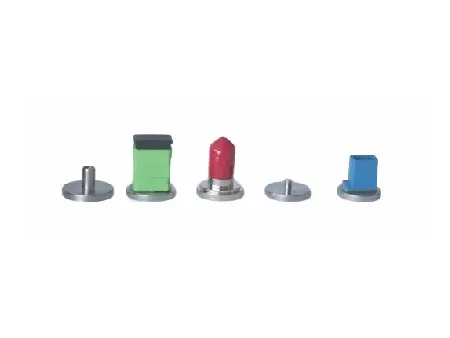

OPM Adapters
