Multichannel optical power meter is an effective testing solution for fiber optic manufacturers or labs requiring high channel counts. This optical power meter features high-speed sampling with a 100µS response time, enabling real-time reflection of optical power changes. Equipped with an RS232-C communication interface, it allows direct PC connectivity for data visualization and parameter configuration through dedicated software. Its communication interface supports both simplified and standard commands, ensuring faster communication with PCs and improved reliability with PCBs. Additional options include trigger storage, analog voltage output, and Ethernet connectivity. With a sampling speed of up to 10 kS/s, a dynamic range of 10 to -80dBm, and 64K storage per channel, this meter is ideal for precise optical measurements across various applications such as DWDM components, AWG arrays, PLC components, WSS, OPM, DPSK, EDFA, and other fiber optic systems.
Multi-channel Optical Power Meter
Request a Quote

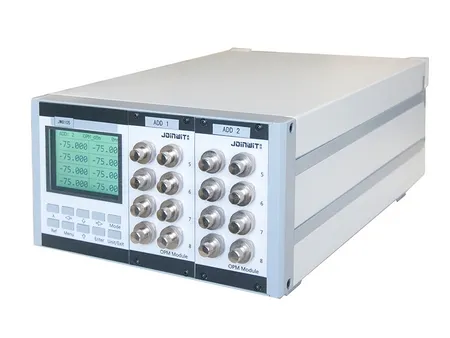

JW8105A/JW8105S
Benchtop optical power meter for measuring intensity of optical signals
Features
- Configurable wavelength settings
- Adjustable sampling rate, up to 10 kS/s
- Wide dynamic testing range: 10 to -80dBm
- Capable of PDL (Polarization-Dependent Loss) measurement
- Optional optical power detection ranges
- Comprehensive communication command set with demo software support
- Supports wavelength editing functionality
- Trigger storage functionality available
- Optional Ethernet connectivity
- Analog voltage output functionality
- Wavelength settings can be saved for future use

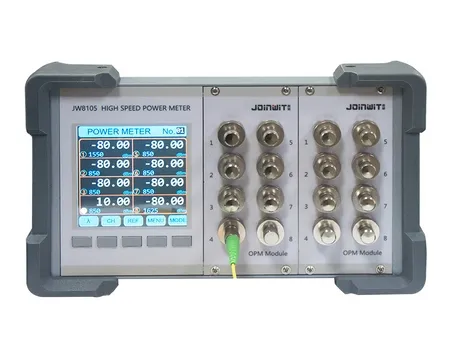

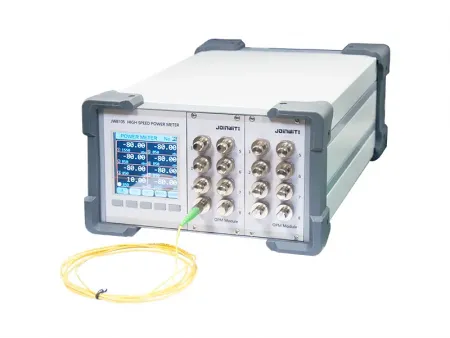

- Upgraded casing with a color screen interface (JW8105S model)
Specifications
JW8105A JW8105S| Wavelength Range | 850 to 1700nm, 400 to 1100nm |
| Calibration Wavelength | 850/1300/1310/1490/1550/1625nm |
| Detector Type | InGaAs/Si |
| Detector Size | Ø2mm |
| Measurement Range | A: 10 to -80dBm C: 25 to -60dBm |
| Linearity | ±0.04dB (A: 10 to -50dBm) (C: 25 to -35dBm) ±0.08dB (A: -50 to -70dBm) (C :-35 to -55dBm) |
| Sampling Rate | 10ksps |
| Uncertainty | ±3% (A: 10 to -60dBm) (C: 25 to -45dBm) |
| Display Resolution | 0.01/0.001dB |
| Measurement Unit | dB/dBm/mW/μW/nW |

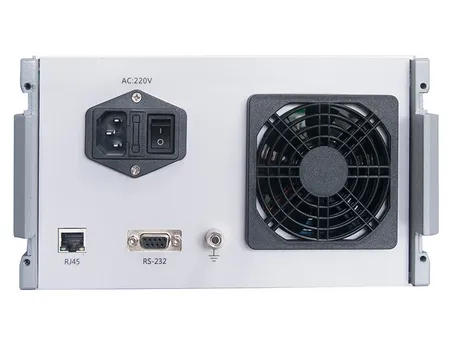

| Communication Interface | RS232-C/RJ45 |
| Operating Temperature | -5 to 40℃ |
| Storage Temperature | -25 to 70℃ |
| Power Supply | AC 220V 50Hz |
| Analog Voltage | 3U×235×380mm |
