70mm 25W Brush DC Gear Motor Manufacturer

70mm 25W Brush DC Gear Motor

Request a Quote

View All: http://zd-drivers.com/2-1-4-brush-dc-gear-motor.html

Motor Specifications

Model	Voltage	Power	No-load Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush Life	Motor Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
Z3D25-12	12	25	3300	1.0Max	3000	80	3.5	2000	1.0
Z3DW25-12	12	25	3300	1.0Max	3000	80	3.5	2000	1.0
Z3D25-24	24	25	3200	0.5Max.	2800	85	1.6	2000	1.0
Z3DW25-24	24	25	3200	0.5Max.	2800	85	1.6	2000	1.0
Z3D25-90	90	25	3100	0.3Max.	2700	88	0.6	2000	1.0
Z3DW25-90	90	25	3100	0.3Max.	2700	88	0.6	2000	1.0

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Z3D25-24GN	Speed r/min	933	778	560	467	373	311	280	224	187	156	140	112	93	78	70	56	47	37	31	28	23	19	16	14
	3GN()K	0.21	0.25	0.35	0.41	0.52	0.62	0.69	0.86	1.04	1.24	1.24	1.55	1.86	2.24	2.49	3.11	3.73	4.66	5.00	5.00	5.00	5.00	5.00	5.00
	3GN()K	2.03	2.44	3.38	4.06	5.08	6.09	6.77	8.46	10.2	12.2	12.2	15.2	18.3	21.9	24.4	30.5	36.6	45.7	50.0	50.0	50.0	50.0	50.0	50.0

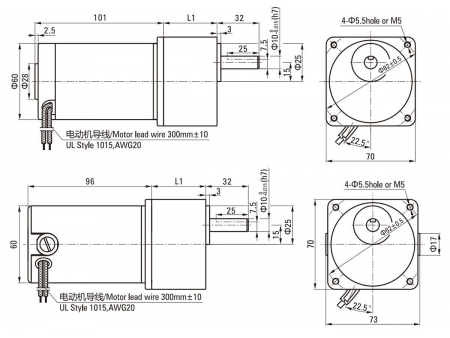

L1=42mm
