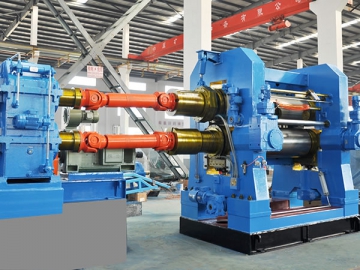

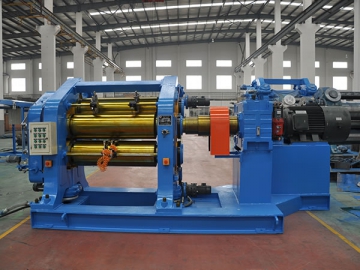

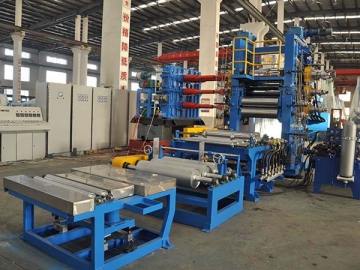

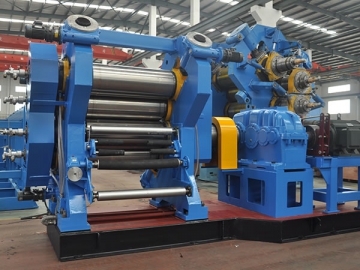

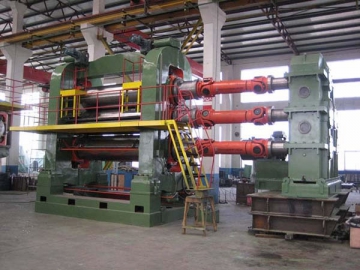

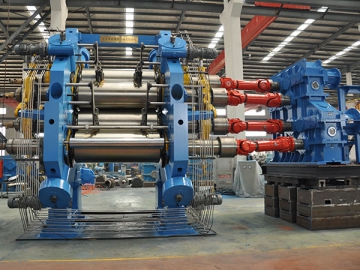

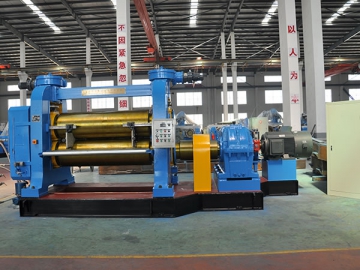

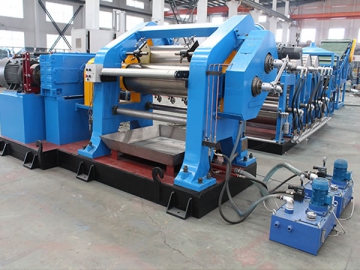

Four Roll Rubber Calender

Four Roll Rubber Calender
Four Roll Rubber Calender
Four Roll Rubber Calender
Four Roll Rubber Calender
Four Roll Rubber Calender
Four Roll Rubber Calender
Four Roll Rubber Calender
Four Roll Rubber Calender
Four Roll Rubber Calender
Four Roll Rubber Calender
Request a Quote
View All: http://huahanmachine.com
Specifications
Model Item XY-4I(Γ)
230x630 		XY-4I(Γ)
360x1120 		XY-4I(Γ)
400x1200 		XY-4I(Γ)
450x1400 		XY-4I(Γ)
550x1500 		XY-4I(Γ)
610x1730 		XY-4I(Γ)
700x1850 		XY-4I(Γ)
710x2130 		XY-4I(Γ)
800x2500 		XY-4I(Γ)
860x2500
Roll Diameter mm 230 360 400 450 550 610 700 710 800 860
Roll Working Length mm 630 1,120 1,200 1,400 1,500 1,730 1,850 2,130 2,500 2,500
Roll Speed Ratio 1:1:1:1 0.73:1:1:0.73 1:1.38:1.38:1 1:1.5:1.5:1 1:1.5:1.5:1 1:1.4:1.4:1; 1:1.4:1.4:1.4 0.5~1 1:1.5:1.5:1 0.5~1 0.5~1
Middle Roll Line Speed m/min 2.1-21 2-20.1 3-26.3 2.5-25 3~30 8-50 4-40 3-30 4-40 4-40
Nip Adjusting Range m 0-10 0-10 0-10 0-10 0~10 20 0-30 0-20 0-30 0-30
Minimum Product Thickness mm 0.2 0.2 0.2 0.2 0.2 0.15 0.2 0.15 0.2 0.2
Product Width set 500 920 1,200 1,250 1,300 1,500 1,600 1,900 2,200 2,200
Motor Power kw 15 55 75 110 160 185 90kwx2 110kwx1 220 132kwx4 132kwx4
Overall Dimensions L mm 3,800 3,300 6,400 6,500 7,550 6,580 9,950 7,010 10,400 12,000
W mm 930 940 1,620 1,970 2,400 2,460 3,600 4,150 3,900 3,800
H mm 1,890 2,350 2,490 2,740 3,400 2,920 4,870 3,730 5,140 5,850
Gross Weight t ~4.8 ~16 ~20 ~23 ~45 ~50 ~110 ~100 ~130 ~180
