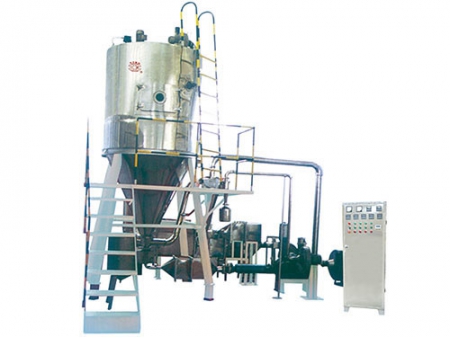

Herb Extract Spray Dryer

Request a Quote

View All: http://materialdryer.com/1-4-4-spray-dryer/index.html

This herb extract spray dryer is an atomizing centrifuge dryer that can process 50-60kg/h of liquid raw materials without compromising the properties of traditional Chinese medicine ingredients. It solves the age old problems of drying these products without losing their color or wasting a certain amount of valuable ingredients.

Parameters

Items		ZLG-25	ZLG-50	ZLG-80	ZLG-100	ZLG-150	ZLG-200	ZLG-300
Drying capacity (kg/h)		25	50	80	100	150	200	300
Feed amount (kg/h)		25-34	50-68	80-108	100-135	150-203	200-270	300-406
Output capacity (kg/h)		4.8-7.2	9.2-14	14.8-22.4	18.4-28	28-42	36.8-56.4	55-85
solid content of liquid material (%)		18-25
water content of finished product (%)		3-5
Electric powder (kw)		63	99	132	153	204	246	330
Heat source		Steam heater and electric heater
Dust collecting		Two stage of cyclone separator or one stage of cyclone separator and cloth bag dedustor , dust collecting up to 95%
automatic control device		Hot air and exhaust air temperature indicator
Temperature of air inlet(℃)		150-200
Temperature of air outlet(℃)		80-100
Overall dimensions(mm)	L	7000	8000	9800	11000	12200	14100	15000
	W	4000	5000	5700	6200	7000	7800	9000
	H	6900	7400	8000	8900	10000	11000	12000

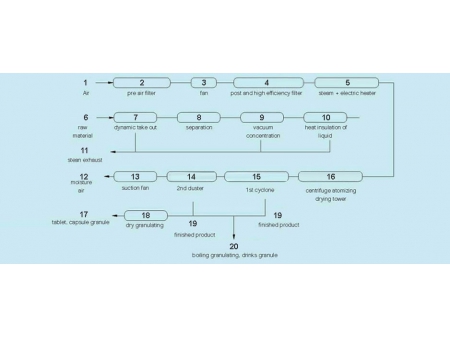

Flow chart

1. Air
2. Primary efficiency filter
3. Fan
4. Medium & high efficiency filter
5. Steam and electric heater
6. Raw material
7. Dynamic extraction
8. Separator
9. Vacuum concentration
10. Heat insulation of liquid material

11. Steam exhaust
12. Moist air
13. Induced draft fan
14. Dust collector
15. Cyclone dust collector
16. Centrifugal spray dry tower
17. Tablets and capsules
18. Dry granulating
19. Finished product
20. Boiling granulating and granular solid beverage

The spray dryer is fully sealed so as to prevent material loss. The drying equipment is fitted with a cooling device that keeps the wall temperature less than 80℃. This protects the material from burning and increases the collection rate.
