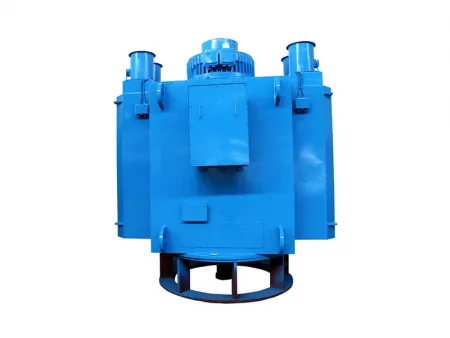

YLKS Series
Three-phase asynchronous motor for driving vertical water pumps and industrial machines

Our vertical high voltage motors (YLKS series) are three-phase asynchronous motors designed for driving vertical water pumps and industrial machines. They are characterized by high efficiency, energy-saving, low noise, minimal vibration, and reliable quality. These motors can drive vertical water pumps and other mechanical equipment, serving as prime movers in petrochemical, machinery, and mining industries.

Structurally, we adopt an internationally popular box-type design with high process performance. By removing the protective cover (or cooler), the motor’s interior can be observed and accessed, facilitating installation and maintenance.

  • Frame size: 200-1000mm
  • Rated power: 100kW/1000kW/2000kW/5000kW/10000kW/10mW
  • Rated voltage: 1000V/10kV/20kV/30kV
  • Rated frequency: 0-100Hz
  • Number of poles: 2/4/6/8/10 poles
  • Protection degree: IP23/IP44/IP55
  • Insulation class: class H
  • Cooling method: air cooling / water cooling
  • Duty cycle: S1
  • Mounting method: vertical
