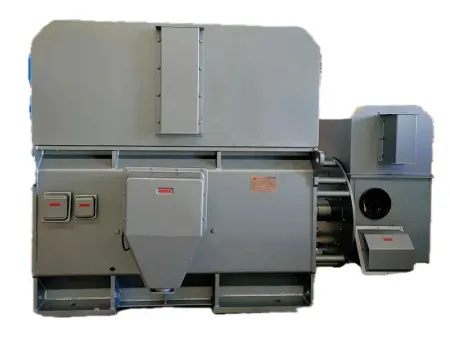

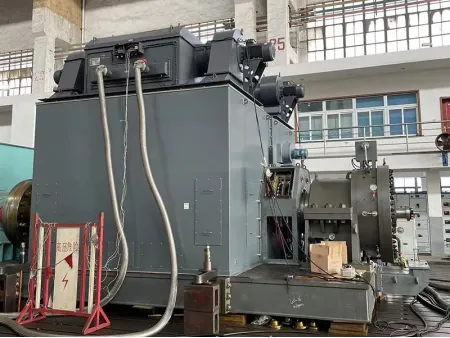

Heavy Duty High Voltage Motor
Request a Quote
Y Series
Industrial electric motor with voltages ranging from 1,000V to 30,000V for industrial machines
Our heavy duty high voltage motors (Y series) are industrial electric motors with voltages ranging from 1,000V to 30,000V for industrial machines. Given that 6000V and 10000V are commonly used voltages and power grids vary in countries, we also provide motors with 3300V and 6600V voltage levels. Our motors present high power and strong impact resistance.
Our Y series motors can be used to drive water pumps and other machinery, suitable for mining, machinery, petrochemical, power plants, and various industrial enterprises as prime movers.
- Frame size: 200-1000mm
- Rated power: 100kW/1000kW/2000kW/5000kW/10000kW/10mW
- Rated voltage: 1000V/10kV/20kV/30kV
- Rated frequency: 0-100Hz
- Number of poles: 2/4/6/8/10 poles
- Protection degree: IP23/IP44/IP55
- Insulation class: class H
- Cooling method: air cooling / water cooling
- Duty cycle: S1
- Mounting method: vertical
Specifications
| Model | Rated Power (kW) | Synchronous Speed (RPM) | Rated Current (A) | Efficiency (%) | Power Factor (COSc) | Locked Rotor Current (A) | Locked Rotor Torque Multiple | Max. Torque Multiple |
| 280 | 3000 | 25.1 | 93.8 | 0.87 | 7.0 | 0.6 | 1.8 | |
| 315 | 28.2 | 94.1 | ||||||
| 355 | 31.7 | 94.3 | ||||||
| 400 | 35.1 | 94.4 | ||||||
| 450 | 39.3 | 94.5 | ||||||
| 500 | 44.2 | 94.6 | ||||||
| 560 | 49.2 | 94.7 | 0.88 | |||||
| 630 | 55.3 | 94.8 | ||||||
| 710 | 62.2 | 94.9 | ||||||
| 800 | 69.1 | 95.0 | ||||||
| 900 | 77.2 | 95.2 | ||||||
| 1000 | 85.0 | 95.4 | 0.89 | |||||
| 1120 | 95.1 | 95.5 | ||||||
| 1250 | 108.6 | 95.6 | ||||||
| 1600 | 120.6 | 95.7 | 0.90 | |||||
| 1800 | 133.9 | 95.8 | ||||||
| 2000 | 149.7 | 96.0 | ||||||
| 280 | 1500 | 25.5 | 93.3 | 0.86 | 7.0 | 0.7 | 1.8 | |
| 315 | 28.7 | 93.5 | ||||||
| 355 | 32.2 | 93.9 | ||||||
| 400 | 35.5 | 94.5 | ||||||
| 450 | 39.9 | 94.2 | ||||||
| 500 | 44.8 | 94.4 | ||||||
| 560 | 49.6 | 95.0 | 0.87 | |||||
| 630 | 55.8 | 95.1 | ||||||
| 710 | 62.0 | 95.2 | 0.88 | |||||
| 800 | 68.8 | 95.3 | ||||||
| 900 | 77.0 | 95.4 | ||||||
| 1000 | 84.9 | 95.5 | 0.89 | |||||
| 1120 | 92.9 | 95.7 | ||||||
| 1250 | 108.3 | 95.8 | ||||||
| 1400 | 121.7 | 95.9 | 0.6 | |||||
| 1600 | 135.1 | 96.0 | ||||||
| 1800 | 151.2 | 96.1 |
Outline and Mounting Dimensions
| Frame | No. of Poles | Mounting Dimensions | Outline Dimensions | |||||||||||
| A | B | C | D | E | F | G | H | K | AC | AD | HD | L | ||
| 355 | 2 | 630 | 900 | 315 | 80 | 170 | 22 | 71 | 355 | 28 | 1100 | 800 | 1170 | 1870 |
| 4-6 | 100 | 210 | 28 | 90 | 1890 | |||||||||
| 400 | 2 | 710 | 1000 | 375 | 90 | 170 | 25 | 81 | 400 | 35 | 1150 | 850 | 1330 | 2090 |
| 4-8 | 335 | 110 | 210 | 28 | 100 | 1980 | ||||||||
| 450 | 2 | 800 | 1120 | 400 | 100 | 90 | 450 | 1300 | 900 | 1475 | 2340 | |||
| 4 | 355 | 120 | 32 | 109 | 2180 | |||||||||
| 6-12 | 130 | 250 | 119 | |||||||||||
| 500 | 2 | 900 | 1250 | 560 | 110 | 210 | 28 | 100 | 500 | 42 | 1420 | 965 | 1655 | 2790 |
| 4 | 475 | 130 | 250 | 32 | 119 | 2550 | ||||||||
| 6-12 | 140 | 36 | 128 | |||||||||||
| 560 | 2 | 1000 | 1400 | 560 | 130 | 32 | 119 | 560 | 1600 | 1100 | 1850 | 3020 | ||
| 4 | 500 | 150 | 36 | 138 | 2900 | |||||||||
| 6-12 | 160 | 300 | 40 | 147 | ||||||||||
| 630 | 2 | 1120 | 1600 | 560 | 140 | 250 | 36 | 128 | 630 | 48 | 1800 | 1200 | 2050 | 3220 |
| 4 | 530 | 170 | 300 | 40 | 157 | 3100 | ||||||||
| 6-12 | 180 | 45 | 165 | |||||||||||
