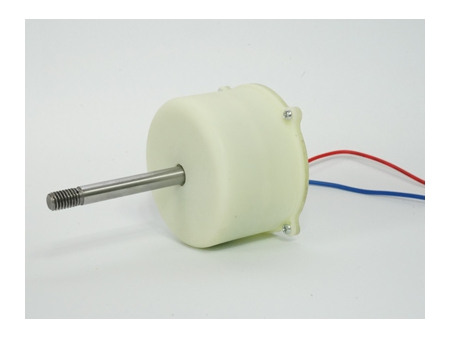

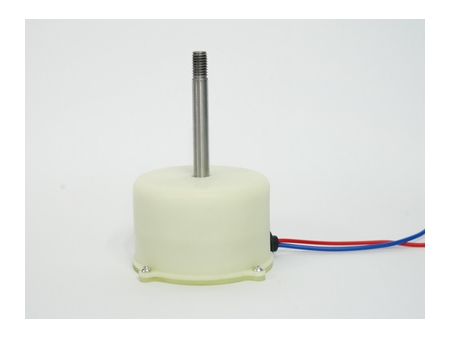

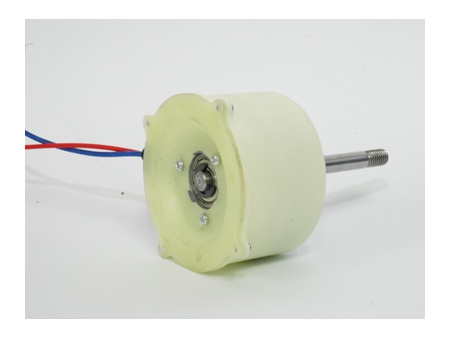

EC52 Electronically Commutated Motor (EC Motor)

EC52 Electronically Commutated Motor (EC Motor)
EC52 Electronically Commutated Motor (EC Motor)
EC52 Electronically Commutated Motor (EC Motor)
EC52 Electronically Commutated Motor (EC Motor)
Request a Quote

EC52 electronically commutated motor comes with a maximum speed of 3500r/min, a power of less than 30W, strong power and stable operation.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram
Application

EC52 electronically commutated motor is widely used in various sizes of duct fans that are applied in homes, commercial buildings, and industrial plants.

Parameters
Type Function Voltage/Freq. Speed
r/min
Power
W
Shaft dia
mm
Shaft Extension (B)
mm
EC52 CW or CCW
1 speed or 2 speed
100-240V AC 50/60Hz ≤3500 ≤30 5/6/7/8 ≤16.5
Reversible
Speed Control
100-240V AC 50/60Hz ≤16.5
BLDC52 CW or CCW
1 speed or 2 speed
12V DC ≤16.5
Reversible
Speed Control
12V DC ≤16.5
