Torque Motor

Request a Quote

View All: http://zd-drivers.com/1-5-torque-ac-gear-motor.html

Motor Specifications

Model	Rating at Locked Rotor	Voltage V	Frequency Hz	Starting Torque mN.m	Max. Output Power W	Speed at Max. Output Power r/min	Torque at Max. Output Power mN.m	Capacitor μF
2TK3GN-A	5 min continuous	110	50	69	3.2	750	41	7.0/250
		60		25	1.3		16
	5 min continuous	110	60	69	3.2	900	37	6.0/250
		60		25	1.3		11
2TK3GN-C	5 min continuous	220	50	69	3.2	750	41	1.5/450
		140		25	1.2		16
	5 min continuous	220	60	69	3.2	900	37	1.2/450
		140		25	1.2		11
3TK6GN-A	5 min continuous	110	50	134	6.0	750	80	8.0/250
		60		68	2.5		36
	5 min continuous	110	60	134	6.5	900	74	7.0/250
		60		68	2.8		30
3TK6GN-C	5 min continuous	220	50	134	6.0	750	80	2.0/450
		140		68	2.5		36
	5 min continuous	220	60	134	6.5	900	74	1.5/450
		140		68	2.8		30
4TK10GN-A	5 min continuous	110	50	235	10	750	127	10.0/250
		60		74	3.0		46
	5 min continuous	110	60	25	10	900	127	8.0/250
		60		69	3.0		38
4TK10GN-C	5 min continuous	220	50	265	10	750	127	2.5/450
		140		98	3.0		46
	5 min continuous	220	60	225	10	900	127	2.0/450
		140		90	3.0		38
5TK20GN-A	5 min continuous	110	50	363	20	750	224	15.0/250
		60		137	6.0		76
	5 min continuous	110	60	294	26	900	216	12.0/250
		60		108	6.0		64
5TK20GN-C	5 min continuous	220	50	363	20	750	224	3.5/450
		140		137	6.0		76
	5 min continuous	220	60	294	26	900	216	3.0/450
		140		108	6.0		64

Gear Motor-Torque TableAllowance Torque Unit: N.m

Applicable Motor Output Power (Pinion Shaft Type)	Gearhead Model	Gear Ratio
3W	2GN()K	3, 3.6, 5, 6, 7.5, 9, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200
	2GN10XK (Intermediate Gearhead)
6W	3GN()K	3, 3.6, 5, 6, 7.5, 9, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200
	3GN10XK (Intermediate Gearhead)
10W	4GN()K	3, 3.6, 5, 6, 7.5, 9, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200
	4GN10XK (Intermediate Gearhead)
20W	5GN()K	3, 3.6, 5, 6, 7.5, 9, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200
	5GN10XK (Intermediate Gearhead)

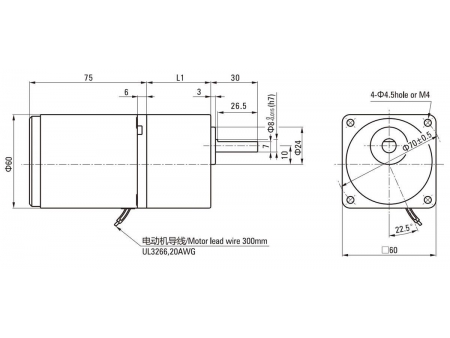

60mm 3W Torque Motor

L1=41.5

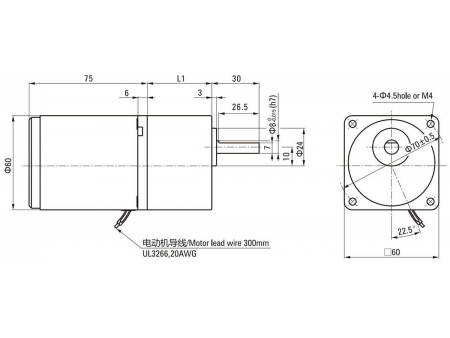

70mm 6W Torque Motor

L1=42mm

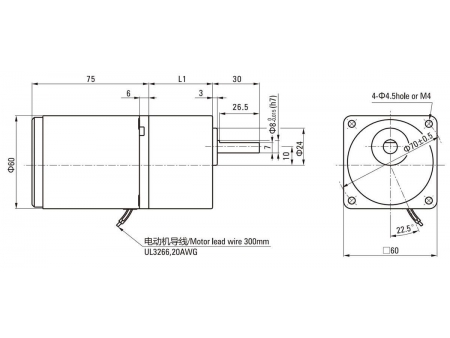

80mm 10W Torque Motor

L1=43.5mm

90mm 20W Torque Motor

L1=60mm

Applications

Food and Beverage Processing Sausage grillers, milk tea sealing machines, ice makers, automatic tea-roasting machines, meat grinders.

Packaging Equipment Carton sealers, kraft paper packaging machines.

Semiconductor Manufacturing: Precision handling and assembly equipment.

Battery Manufacturing Lithium battery processing systems.

Intralogistics Conveyor systems for logistics and warehousing.

Printing and Binding Conical plastic cup printers, industrial printers, paper mounting machines.

Woodworking Machinery Edge banding machines, sawing equipment, automated woodworking production lines.

Textile Industry Textile production equipment.

Livestock Management Manure removal systems, pig farming equipment, feeding systems.

Inspection Systems Security inspection machines.

Dust Removal Systems Industrial dust removal equipment.

Injection Molding Auxiliary systems for injection molding machines.

Access Control Systems Speed gates, channel gates.

Established in 1998, Zhongda has grown to become a leading high-tech enterprise in China that combines research, manufacturing, sales, and services in the sector of motor drives, micro motors, precision reducers, and integrated intelligent units. With a registered capital of 104 million Yuan, we have expanded to nine subsidiaries, employing over 1,800 dedicated individuals. In August 2017, we proudly made our mark on the main board of the Shenzhen Stock Exchange under the stock code: 002896.
