EVA Hot & Cold Secondary Molding Machine

EVA Hot & Cold Secondary Molding Machine
EVA Hot & Cold Secondary Molding Machine
EVA Hot & Cold Secondary Molding Machine
Request a Quote

Footwear machinery for producing EVA sneaker soles and slipper soles

  • Two molds and two cylinders in one station greatly improve productivity;
  • Automatic switchover of heating and cooling modes is convenient and efficient;
  • The secondary molding machine is highly automated and maneuverable;
  • The servomotor drives the screw rod efficiently, which is a labor-saving design.

Material: EVA

Applications

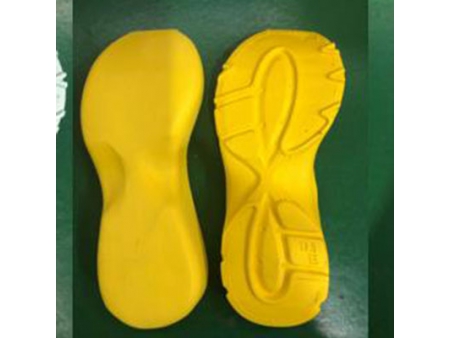

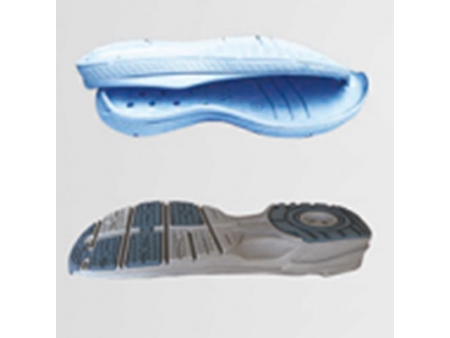

one-color EVA blank products, such as, shoe blanks

Technical Specifications
Item Unit Specifications
Model 706
Raw material EVA
Station 6
Plate size mm 450*460
Plate clearance mm 220
Clamping force T 35
Motor power kW 44
Heating Electric heating/ thermal oil /steam
Cooling Room temperature water
Dimensions mm 7900*2500*2400
Gross weight kg 17000
Features
  • The EVA secondary molding machine enables automatic mold opening and closing, loading and unloading, which reduces workload;
  • It requires only one worker to operate the machine and thus it reduces labor cost;
  • Each station enables independent parameter setting and operation;
  • It only needs fastening the upper and the bottom part of molds to start production
  • Automatic switchover of electrical heating and water cooling improves productivity;
  • The industrial interface and a PLC ensure precise product size, stable production and high-quality final products;
  • Fully enclosed operation protects products from contamination and pollution, and there is green treatment with less waste water drainage to keep the environment clean.
