Used for automatically cut and layup first EVA film in solar panel production line

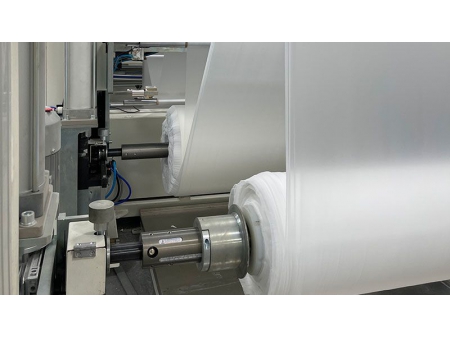

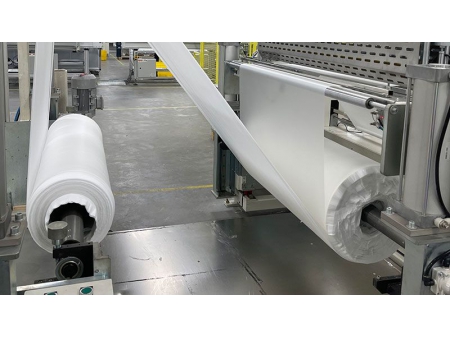

An EVA cutting & layup machine is used for EVA film loading, cutting, layup and hole punching.

Technical Parameters
Item Parameters
Panel size (1,680-2,650)*(992-1,500)mm
Cycle time 20s
Cutting accuracy ±1.5mm
Layup accuracy ±1.5mm
Overall dimensions (L*W*H) 6,000*2,320*2,000mm
Voltage AC 380V, 3 phase
Power 5kW
Air pressure 0.5-0.7MPa
Maximum material roll diameter ≤800mm
Features
  • The layup machine can directly mix tailings with new materials through standard hot melting procedures;
  • Automatic correction, automatic detection of joints and automatic material throwing for higher production efficiency and stability;
  • The hob cutting method prevents the material from be sticked onto the cutter to improve the cutter durability and efficiency.
