Inclined Wire Paper Machine
The inclined wire paper machine is utilized for the production of specialty paper. It features a dense wire configuration and is capable of processing longer fiber lengths. This enhances dehydration performance and results in better uniformity of the manufactured paper. The wire forming section's angle of inclination is adjustable between 0° and 30°. This specialty paper machine can achieve a maximum paper production rate of up to 1300g/m².
| Paper Produced | Medical grade filter paper, fiberglass paper, specialty paper |
| Raw Materials | Plant fiber, chemical fiber |
| Basis Weight | 20-1300g/m² |
| Machine Speed | 10-300m/min |
| Trimmed Width | 800-4200mm |
| Production Capacity | 0.30-35t/d |
- Long fibers of the pulp material, as well as mixed fibers, are more easily formed in a low concentration state.
- The finished product exhibits good uniformity and air permeability.
- Suitable for the production of specialty papers with relatively low tensile strength in both the longitudinal and transverse directions

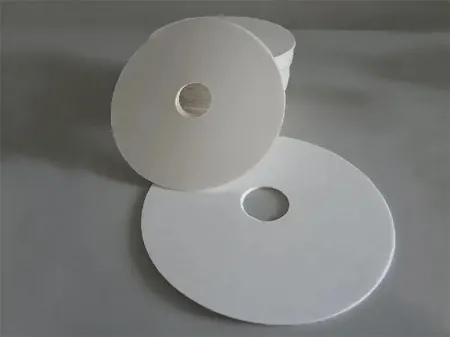

This paper machine is primarily utilized in the production of specialty papers such as medical grade filter paper and fiberglass paper, among others.
One of the unique features of the inclined wire paper machine is its adjustable wire angle, complemented by sealing devices on the sides and bottom edges of its former. This allows the inclined wire paper machine to control the drainage rate of the pulp more precisely and also facilitate efficient dehydration. This is critical when working with long and delicate fibers. We have a special leveling device designed and incorporated to the basic setup of a typical inclined wire former, to address the issue of severe fiber flocculation at low flow rates of pulp, which can result in poor uniformity of the paper sheet. These adaptations on our inclined wire paper machine for managing long fibers and maintaining high permeability makes it ideal for producing specialty paper like medical filter paper and glass fiber paper.
Standard Configurations: Former, dryer, paper winder, drive, pneumatic control
Optional Configurations
- Pulping equipment: pulper, refiner, desander, pressure screen, etc.
- Pulping control system: electric cabinet, electrical components, frequency conversion, control system
- Pipeline components in the pulping section: pipes, valves, fittings, etc.
- Paper machine auxiliary machinery: approach flow system, vacuum system, DCS control system, auxiliary electrical control
- Pipeline components in the paper making section: pipes, valves, fittings, etc.
- Post-processing equipment: rewinding machine, packaging machine, paper roll processing equipment, tissue paper processing equipment
- Spare parts: guide rollers, vacuum rolls, paper roll shaft, etc.
