Jewelry Laser Spot Welder
Application
The Aohua jewelry laser spot welder is widely used in the welding of the following products: electrical components, batteries, electrodes, weld socket connectors, motor covers, connecting lines, integrated circuits, clocks, small stamping parts and castings, and jewelry.
| Model | | |
| Max. laser power | 220W | 400W |
| Laser wavelength | 1064nm | 1064nm |
| Max. energy per pulse | 90J | 110J |
| Pulse width | 0.2-10ms | 0.2-10ms |
| Continous welding frequency | 0.5-20HZ | 0.5-20HZ |
| Range of adjustable facula size | 0.2-2mm | 0.2-2mm |
| Control system | micro-computer | micro-computer |
| Power consumption | ≤9KW | ≤11KW |
| Repetition accuracy | ±0.01mm | ±0.01mm |
| Electrical connection | 220V±10%/50HZ/30A | 220V±10%/50HZ/30A |
Feature
● The jewelry laser spot welder is assembled with internationally known components, adopts an ergonomic design, and is extremely durable.
● The machine also has advantages such as easy control, stability, and low error rates.
● Application of the cross cursor special microscope observation system carried high-speed electronic filter not only enables operators to maximize precision but also protect their eyes.
● Additionally, the size of the welding spot can be randomly adjusted without worrying about the appearance of the welding seam.

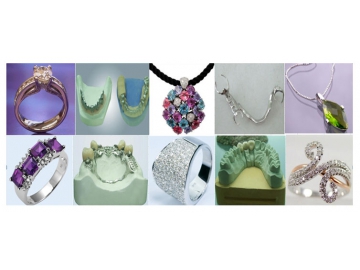

The laser welder can be used to weld the following non-metal and metal parts:
● Gold jewelry repair laser welding
● Electronic components laser welding
● Lithium battery laser welding
● Mobile phone parts laser welding
● Precision connector laser welding
