Water Cooled Scroll Chiller and Heat Pump, 70kW-280kW
Request a Quote
The water cooled scroll chiller and heat pump is specially engineered for the cooling and heating of large-scale commercial buildings such as malls, offices, workshops, hotels, and hospitals.
Download
Video
Technical Parameters
| Model RLSW - (C) R | 70 | 80 | 100 | 120 | 160 | 200 | 240 | 280 | ||
| Power supply | 380V/50HZ | |||||||||
| Compressor Qty | 2 | 2 | 3 | 3 | 4 | 5 | 6 | 2 | ||
| Normal cooling capacity | kW | 68.6 | 80.8 | 112.9 | 121.2 | 161.6 | 202 | 242.4 | 279.3 | |
| Input power of cooling | kW | 13.2 | 14.4 | 19.8 | 21.6 | 28.8 | 36 | 43.2 | 48.6 | |
| Normal heating capacity | kW | 76.6 | 90.2 | 114.9 | 135.3 | 180.4 | 225.5 | 270.6 | 306 | |
| Input power of heating | kW | 16.8 | 19.6 | 25.2 | 29.4 | 39.2 | 49 | 58.8 | 64.5 | |
| Max. running current | A | 40 | 45 | 60 | 67.5 | 90 | 112.5 | 135 | 147 | |
| Cable diameter (Copper wire distance≤20meters) | mm2 | 3*6 2*4 | 3*10 2*6 | 3*16 2*10 | 3*16 2*10 | 3*25 2*16 | 3*35 2*16 | 3*50 2*25 | 3*70 2*35 | |
| Compressor type | Hermetic scroll | |||||||||
| Starting mode | Direct | |||||||||
| Refrigerant | R410A | |||||||||
| Refrigerant charge | kg | 13 | 13 | 20 | 20 | 26 | 32 | 40 | 50 | |
| Refrigerant control device | Thermostatic expansion valve | |||||||||
| Evaporator | Type | Shell and tube type | ||||||||
| Water pressure drop | kPa | 70 | ||||||||
| Water pipe Dia. | DN | 50 | 65 | 65 | 65 | 80 | 80 | 80 | 80 | |
| Connection | Threaded connection | |||||||||
| Chilled water flow | m3/h | 11.8 | 13.9 | 19.4 | 20.8 | 27.8 | 34.7 | 41.7 | 48 | |
| Well water flow | m3/h | 7.1 | 8.3 | 11.6 | 12.5 | 16.6 | 20.8 | 25 | 28.8 | |
| Condenser type | Type | Shell and tube type | ||||||||
| Water pressure drop | kPa | 70 | ||||||||
| Water pipe Dia. | DN | 50 | 65 | 65 | 65 | 80 | 80 | 80 | 80 | |
| Well water flow | m3/h | 7.1 | 8.3 | 11.6 | 12.5 | 16.6 | 20.8 | 25 | 28.8 | |
| Hot water flow | m3/h | 11.8 | 13.9 | 19.4 | 20.8 | 27.8 | 34.7 | 41.7 | 48 | |
| Dimensions | L | 1800 | 1800 | 2400 | 2400 | 2400 | 2800 | 3200 | 3000 | |
| W | 700 | 700 | 800 | 800 | 950 | 950 | 950 | 950 | ||
| H | 1350 | 1350 | 1400 | 1400 | 1450 | 1450 | 1450 | 1750 | ||
| Net weight | kg | 410 | 495 | 680 | 690 | 920 | 1080 | 1220 | 1420 | |
| Running weight | kg | 490 | 610 | 820 | 830 | 1050 | 1190 | 1480 | 1550 | |
| Noise | dB(A) | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | |
| Model RLSW - (C) R | 70 | 80 | 100 | 120 | 160 | 200 | 240 | 280 | ||
| Power supply | 380V/50HZ | |||||||||
| Compressor Qty | 2 | 2 | 3 | 3 | 4 | 5 | 6 | 2 | ||
| Normal cooling capacity | kW | 68.6 | 80.8 | 112.9 | 121.2 | 161.6 | 202 | 242.4 | 279.3 | |
| Input power of cooling | kW | 13.2 | 14.4 | 19.8 | 21.6 | 28.8 | 36 | 43.2 | 48.6 | |
| Normal heating capacity | kW | 76.6 | 90.2 | 114.9 | 135.3 | 180.4 | 225.5 | 270.6 | 306 | |
| Input power of heating | kW | 16.8 | 19.6 | 25.2 | 29.4 | 39.2 | 49 | 58.8 | 64.5 | |
| Max. running current | A | 40 | 45 | 60 | 67.5 | 90 | 112.5 | 135 | 147 | |
| Cable diameter (Copper wire distance≤20meters) | mm2 | 3*6 2*4 | 3*10 2*6 | 3*16 2*10 | 3*16 2*10 | 3*25 2*16 | 3*35 2*16 | 3*50 2*25 | 3*70 2*35 | |
| Compressor type | Hermetic scroll | |||||||||
| Starting mode | Direct | |||||||||
| Refrigerant | R410A | |||||||||
| Refrigerant charge | kg | 13 | 13 | 20 | 20 | 26 | 32 | 40 | 50 | |
| Refrigerant control device | Thermostatic expansion valve | |||||||||
| Evaporator | Type | Shell and tube type | ||||||||
| Water pressure drop | kPa | 70 | ||||||||
| Water pipe Dia. | DN | 50 | 65 | 65 | 65 | 80 | 80 | 80 | 80 | |
| Connection | Threaded connection | |||||||||
| Chilled water flow | m3/h | 11.8 | 13.9 | 19.4 | 20.8 | 27.8 | 34.7 | 41.7 | 48 | |
| Well water flow | m3/h | 15.6 | 18.3 | 25.6 | 27.5 | 36.7 | 45.9 | 55 | 63.4 | |
| Condenser type | Type | Shell and tube type | ||||||||
| Water pressure drop | kPa | 70 | ||||||||
| Water pipe Dia. | DN | 50 | 65 | 65 | 65 | 80 | 80 | 80 | 80 | |
| Well water flow | m3/h | 15.6 | 18.3 | 25.6 | 27.5 | 36.7 | 45.9 | 55 | 63.4 | |
| Hot water flow | m3/h | 11.8 | 13.9 | 19.4 | 20.8 | 27.8 | 34.7 | 41.7 | 48 | |
| Dimensions | L | 1800 | 1800 | 2400 | 2400 | 2400 | 2800 | 3200 | 3000 | |
| W | 700 | 700 | 800 | 800 | 950 | 950 | 950 | 950 | ||
| H | 1350 | 1350 | 1400 | 1400 | 1450 | 1450 | 1450 | 1750 | ||
| Net weight | kg | 410 | 495 | 680 | 690 | 920 | 1080 | 1220 | 1420 | |
| Running weight | kg | 490 | 610 | 820 | 830 | 1050 | 1190 | 1480 | 1550 | |
| Noise level | dB(A) | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | |
| Main protection measures | 1. High & low voltage protection; 2. Anti-freeze protection; 3. Temperature control; 4. Reverse phase and phase loss protection; | |||||||||
| 5. High & low pressure protection; 6. High pressure exhaust temperature protection; 7. Built-in motor overheating protection; | ||||||||||
| 8. Over-current protection; 9. Safety valve; 10. Check valve; | ||||||||||
| Remarks | Cooling conditions | User side inlet/outlet water temperature: 12℃/7℃; ground water inlet/outlet water temperature: 18℃/29℃; | ||||||||
| Heating conditions | User side inlet/outlet water temperature: 40℃/--℃; ground water inlet/outlet water temperature: 15℃/--℃; | |||||||||
| Model RLSW - (C) R | 70 | 80 | 100 | 120 | 160 | 200 | 240 | 280 | ||
| Power supply | 380V/50HZ | |||||||||
| Compressor Qty | 2 | 2 | 3 | 3 | 4 | 5 | 6 | 2 | ||
| Normal cooling capacity | kW | 67 | 77 | 101.5 | 115.5 | 154 | 192.5 | 231 | 265 | |
| Input power of cooling | kW | 14 | 15.8 | 21 | 23.7 | 31.6 | 39.5 | 47.4 | 53.2 | |
| Max. running current | A | 40 | 45 | 60 | 67.5 | 90 | 112.5 | 135 | 147 | |
| Cable diameter (Copper wire distance≤20meters) | mm2 | 3*6 2*4 | 3*10 2*6 | 3*16 2*10 | 3*16 2*10 | 3*25 2*16 | 3*35 2*16 | 3*50 2*25 | 3*70 2*35 | |
| Compressor type | Hermetic scroll | |||||||||
| Starting mode | Direct | |||||||||
| Refrigerant | R410a | |||||||||
| Refrigerant charge | kg | 13 | 13 | 20 | 20 | 26 | 32 | 40 | 50 | |
| Refrigerant control device | Thermostatic expansion valve | |||||||||
| Evaporator | Type | Shell and tube type | ||||||||
| Water pressure drop | kPa | 70 | ||||||||
| Water pipe Dia. | DN | 50 | 65 | 65 | 65 | 80 | 80 | 80 | 80 | |
| Connection | Threaded connection | |||||||||
| Well water flow | m3/h | 11.5 | 13.2 | 17.5 | 19.9 | 26.5 | 33.1 | 39.7 | 45.6 | |
| Condenser type | Type | Shell and tube type | ||||||||
| Water pressure drop | kPa | 70 | ||||||||
| Water pipe Dia. | DN | 50 | 65 | 65 | 65 | 80 | 80 | 80 | 80 | |
| Water flow | m3/h | 14.4 | 16.6 | 21.8 | 24.8 | 33.1 | 41.4 | 49.7 | 57.0 | |
| Unit type | Horizontal | |||||||||
| Dimensions | L | 1800 | 1800 | 2400 | 2400 | 2400 | 2800 | 3200 | 3000 | |
| W | 700 | 700 | 800 | 800 | 950 | 950 | 950 | 950 | ||
| H | 1350 | 1350 | 1400 | 1400 | 1450 | 1450 | 1450 | 1750 | ||
| Net weight | kg | 410 | 495 | 680 | 690 | 920 | 1080 | 1220 | 1420 | |
| Running weight | kg | 490 | 610 | 820 | 830 | 1050 | 1190 | 1480 | 1550 | |
| Noise level | dB(A) | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | |
| Main protection measures | 1. High & low voltage protection; 2. Anti-freeze protection; 3.Temperature control; 4. Reverse phase and phase loss protection; | |||||||||
| 5. High & low pressure protection; 6. High pressure exhaust temperature protection; 7. Built-in motor overheating protection; | ||||||||||
| 8. Over-current protection; 9. Safety valve; 10.Check valve; | ||||||||||
| Remarks: | Cooling conditions: | User side inlet/outlet water temperature: 12℃/7℃; ground water inlet/outlet water temperature: 18℃/29℃; | ||||||||
| User side inlet/outlet water temperature: 40℃/--℃; ground water inlet/outlet water temperature: 15℃/--℃; | ||||||||||
Features

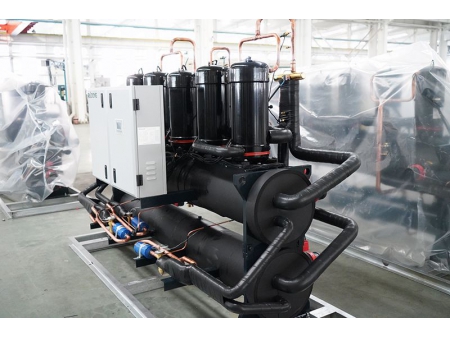

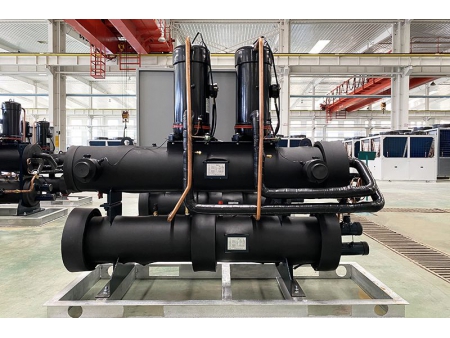

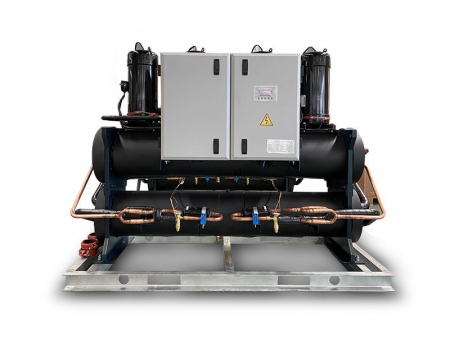

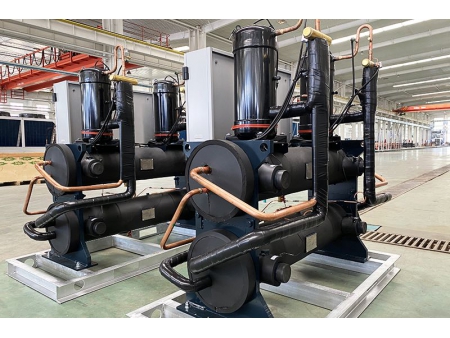

The water cooled scroll chiller and heat pump utilizes a scroll type compressor and clients can purchase 1 to 4 compressors depending on the size and purpose of their buildings. The equipment also features a shell and tube type condenser, evaporator, and control system.

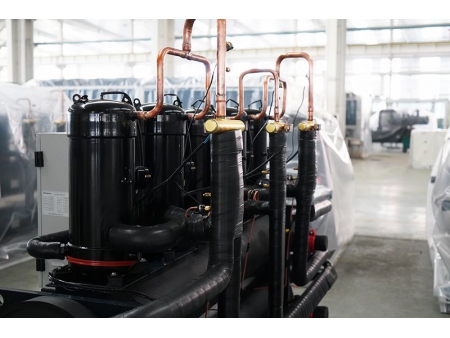

- Compressor The scroll type compressor features excellent liquid impact resistance. By installing the oil heating equipment, the water cooled scroll chiller and heat pump breakdown due to incomplete oil and fluorine separation is eliminated.
- Evaporator (1) The shell and tube type evaporator is equipped with an inner grooved copper tube for higher heat exchange efficiency.
- Condenser (1) Condenser is shell and tube type. It features a single or multiple loop design. (2) The manufacturing and testing of the steel shell both meet JB/T4750-2003 'Pressure Vessel for Refrigeration Equipment' standards.
- Control system The distribution control cabinet is composed of compressor starting equipment, a power protector and a micro-computerized controller. The micro-computerized controller can run stably and safely under a temperature range of -15℃ to 65℃. It is equipped with a RS-232 and RS-485 standard communication interface. It can receive a remote signal for starting up and shutting down.
- Control methods (1) The main engine of the water chiller is controlled based on the temperature of the return cold water or outflow.
(2) When the load reaches the set value, the machine will automatically stop. It can automatically start as well.
(3) The machine is equipped with an LCD display screen.
(4) The temperature of the inflow and outflow can be displayed and set. The running state and running time of the compressor can be controlled.
(5) Remote start and stop function.
