Stage Lighting RGB LED Par Light Code SS338E/ET Stage Lighting
Request a Quote
Characteristics
- Master-slave control
- Buttons protection setting
- Support DMX512 control
- Multiple DMX control modes
- Linear dimming & nonlinear dimming
- Selection and adjustment of multiple color temperature
Technical Specifications
- Optical System
- Light source: 14x3W (RGB)
- Optical angle: 16°
- Electrical Connections
- Input voltage: 100-240VAC, 50/60Hz
- Rated power: 50W
- Drive current: 350mA
- Power line: Power input and output, signal input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Natural radiation
- RTCP: DMX512
- Display: On board control, 0-25Hz strobe, custom mode
- Channel mode: TOUR/9CHS, TR16/13CHS, ARC1/3CHS, AR1.D/4CHS, HSV/3CHS, AR1.S/5CHS
- Appearance
- Size: 245x205x292mm
- Weight: 4.8kg
- Shell: Die-casting aluminum
- Color: Black
- Working Environment
- Ambient temperature: -20℃~45℃
- IP Rating: SS338E-Dry Location, SS338ET-Dry/Damp/Wet Location/IP66 (with LED dispaly cover installed)
- Approvals
- Certification
- CE, MET

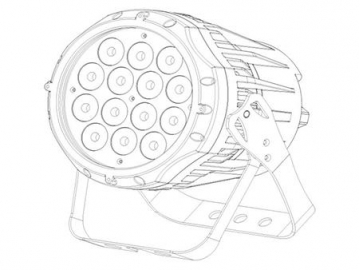

Dimensions
Illumination Contours

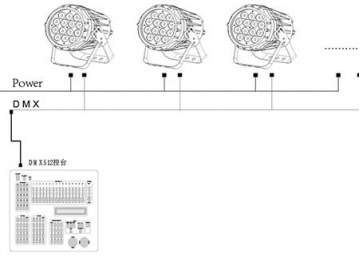

Installations
Optional Accessories
