Stage Lighting 7x15W LED Par Light Code SS345C1WM Stage Lighting

Stage Lighting 7x15W LED Par Light  Code SS345C1WM Stage Lighting
Stage Lighting 7x15W LED Par Light  Code SS345C1WM Stage Lighting
Stage Lighting 7x15W LED Par Light  Code SS345C1WM Stage Lighting
Stage Lighting 7x15W LED Par Light  Code SS345C1WM Stage Lighting
Stage Lighting 7x15W LED Par Light  Code SS345C1WM Stage Lighting
Stage Lighting 7x15W LED Par Light  Code SS345C1WM Stage Lighting
Request a Quote
Characteristics
  • Master-slave control
  • Buttons protection setting
  • Support DMX512 control
  • Multiple DMX control modes
  • Linear dimming & nonlinear dimming
Technical Specifications
  • Optical System
      Light source: 7x15W (WW+CW)
      Color temperature: 2700K-9000K
      Optical angle: 8°-40°
  • Electrical Connections
      Input voltage: 100-240VAC, 50/60Hz
      Rated power: 95W
      Drive current: 700mA
      Power line: Power input and output, signal input and output
  • Control System
      Dimmer: 0-100%16Bit
      Cooling system: Natural radiation
      RTCP: DMX512
      Display: On board Control, 0-25Hz strobe, custom mode
      Channel mode: STD.P/10CHS, STD.W/6CHS, UNO/1CH
  • Appearance
      Size: 334x236x191mm
      Weight: 6.6kg
      Shell: Die-casting aluminum
      Color: Black
  • Working Environment
      Ambient temperature: -20℃~45℃
      IP Rating: IP65
  • Approvals
      Certification
      CE, MET

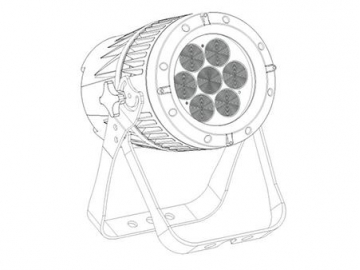

Dimensions
Illumination Contours

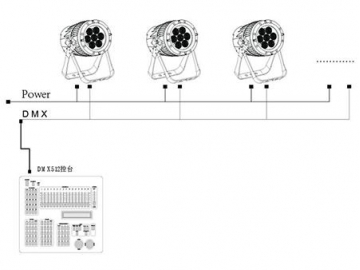

Installations
Optional Accessories
