Stage Lighting RGB LED Light Bar Code SS377XCAM Stage Lighting

Stage Lighting RGB LED Light Bar  Code SS377XCAM Stage Lighting
Stage Lighting RGB LED Light Bar  Code SS377XCAM Stage Lighting
Stage Lighting RGB LED Light Bar  Code SS377XCAM Stage Lighting
Stage Lighting RGB LED Light Bar  Code SS377XCAM Stage Lighting
Stage Lighting RGB LED Light Bar  Code SS377XCAM Stage Lighting
Stage Lighting RGB LED Light Bar  Code SS377XCAM Stage Lighting
Request a Quote
Characteristics
  • Multiple DMX control modes
  • Support DMX512 control
  • Master-slave control
  • Selection and adjustment of multiple color temperature
  • New innovational HSIC color mixing system
Technical Specifications
  • Optical System
      Light source: 18 red, 18 green, 18 blue, 9 white, 9amber(3W)
      Optical angle: 30° (15°, 25°x6° optional)
  • Electrical Connections
      Input voltage: 100-240VAC, 50/60Hz
      Rated power: 150W
      Drive current: 330mA
      Power line: Power input and output, signal input and output
  • Control System
      Dimmer: 0-100%16Bit
      Cooling system: Natural radiation
      RTCP: DMX512, RDM
      Display: On board control, 0-20Hz strobe, custom mode
      Channel mode: TOUR/13CHS, TR16/18CHS, ARC1/3CHS, HSIC/7CHS, PIXLE/18CHS, ARC1+D/4CHS, ARC2/5CHS, ARC2+D/6CHS, ARC2+/7CHS, BLOCK1/9CHS, BLOCK2/15CHS
  • Appearance
      Size: 1027x130x162mm
      Weight: 7.5kg
      Shell: Die-casting aluminum
      Color: Black
  • Working Environment
      Ambient temperature: 0℃~45℃
      IP Rating: IP65
  • Approvals
      Certification
      CE, MET
Dimensions
Illumination Contours

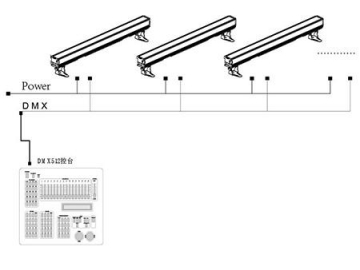

Installations
Optional Accessories
