Double Cone Vacuum Dryer

Request a Quote

View All: http://materialdryer.com/1-5-1-double-cone-rotary-vacuum-dryer/index.html

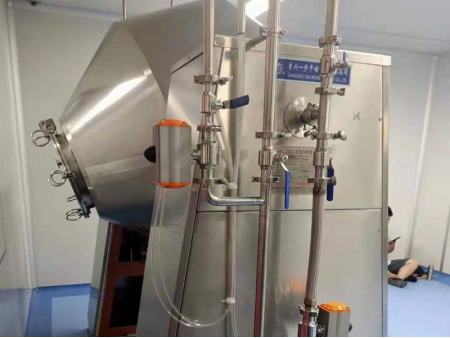

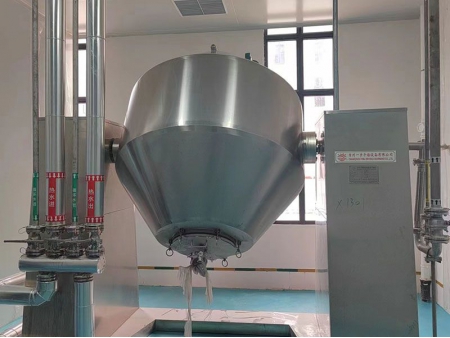

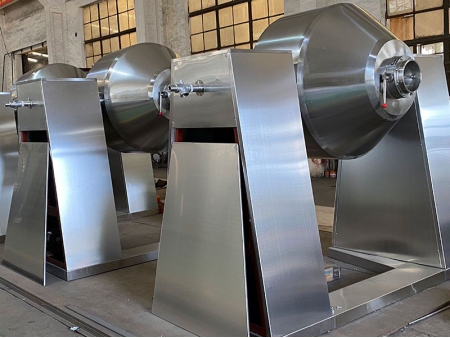

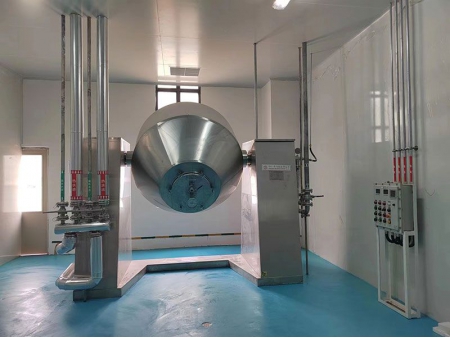

Our double cone vacuum dryer is suitable for raw materials that need to be concentrated, mixed and dried at low temperatures. This drying equipment is particularly suitable for raw materials that are easily oxidized, volatilized and have high heat sensitivity.

The conical vacuum dryer is a new drying technology that combines a belt and chain driving system for stable operation and good concentricity.

Parameters

Item / Specification		100	200	350	500	750	1000	1500	2000	3000	4000	5000
Total Volume	L	100	200	350	500	750	1000	1500	2000	3000	4000	5000
Working Volume	L	50	100	175	250	375	500	750	1000	1500	2000	2500
Heating Area	m2	1.16	1.5	2	2.63	3.5	4.61	5.58	7.5	10.2	12.1	14.1
Speed	r/min	6							5	4	4	4
Power	kW	0.75	1.1	1.5	1.5	2	3	3	4	5.5	7.5	7.5
Rotating Height	mm	1810	1910	2090	2195	2500	2665	2915	3055	3530	3800	4180
Total Weight	kg	825	1050	1350	1650	1800	2070	2250	3000	4500	5350	6000
Design Pressure inside the Tank	MPa	-0.09 〜0.096
Design Pressure of Jacket	MPa	0.3

Structure diagram

1. Condensate water or backflow
2. Heat source
3. Rotating joint
4. Frame
5. Tank

6. Vacuum filter
7. Seal ring
8. Vacuum manometer
9. Rotating joint
